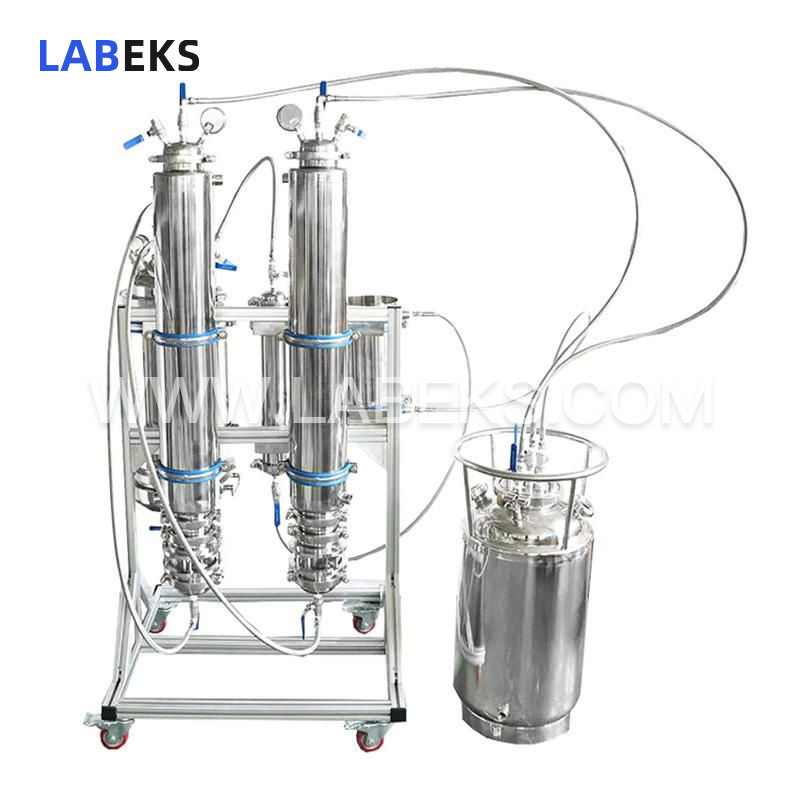

5LB Closed Loop Extractor for Botanical Extraction & Solvent Recovery
Designed for botanical extraction within a fully sealed, vacuumed system, the 5LB closed loop extractor from LABEKS eliminates solvent exposure to ambient air. This passive unit uses temperature-regulated pressure differentials to transfer solvent, which is then recovered to leave behind purified oil after collecting the oil-bearing solution in its base.
- modelLCLE-5
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As one of the most prevalent cannabis extraction systems on the global market, closed loop extractors are widely recognized as an eco-friendly and sustainable extraction solution, thanks to their efficient solvent recovery capabilities and high extraction efficiency.
Operating Procedure of the Closed Loop Extractor: Load raw materials into the material column for immersion in ethanol or other suitable solvents to facilitate target compound extraction. The resulting mixture is then transferred to the subsequent column for separation: solvents are diverted for recycling, while the extracted product is stored in the bottom collection container for user retrieval. The closed-loop design enables repeated solvent reuse, delivering significant cost savings for users and notable environmental benefits.
features
1. Its hermetic construction and precise operational controls reduce risks of solvent evaporation and leakage, effectively safeguarding operator safety.
2. Throughout the entire extraction cycle, solvents and target compounds remain contained within the closed system, eliminating volatilization and external contamination.
3. Operators can precisely regulate temperature, pressure and other critical parameters, ensuring consistent and repeatable extraction performance.
4. An integrated solvent recovery system recycles solvents for repeated use, cutting operational costs and minimizing waste output.
5. The system adapts to diverse production needs, from small laboratory-scale trials to large-volume industrial operations, with customizable size and capacity available.
6. It is widely applied in pharmaceutical manufacturing, natural product extraction, chemical industry, food science and other related fields.
specifications
Model | LCLE-5 |
|---|---|
Capacity | 5LB (customizable) |
Extractor tank | 12” x 20” Single Jacketed ReclamationTank With Hemi Lid 10” x 20” Single Jacketed Collection BaseWith Hemi Lid and Jacketed Splatte Shatter |
Stainless steel hose | 32″ |
Max pressure | 145PSI |
Material column size | 4″X36″ |
Filter dryer size | 3″X18″ |
Condensing Coil | 8” x 12” |
Body Material | 304 Stainless Steel |
Operating Temperature | -42℃~72℃ |
Surface treatment | Sanitary high mirror polish |
Connection method | High pressure clamp |
