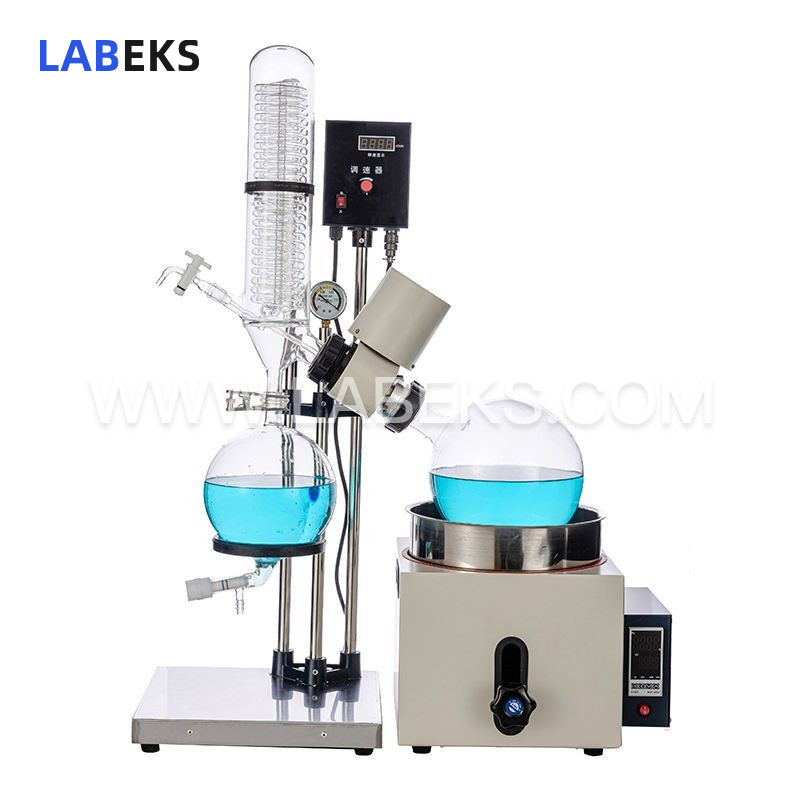

5L Rotary Evaporator with Bath Lift: Gentle Solvent Removal (0-120rpm)
Widely used in chemical laboratories, the rotary evaporator enables efficient and gentle solvent removal from samples through controlled evaporation processes.
- modelLRE-501
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As an essential fundamental instrument for chemical manufacturing, pharmaceutical sectors, academic institutions and scientific research laboratories, this rotary evaporator serves as the primary tool for extraction and concentration in production and analytical experiments.
features
1. All material-contacting components are constructed from high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene, featuring stable performance and excellent chemical inertness to avoid reactions with samples.

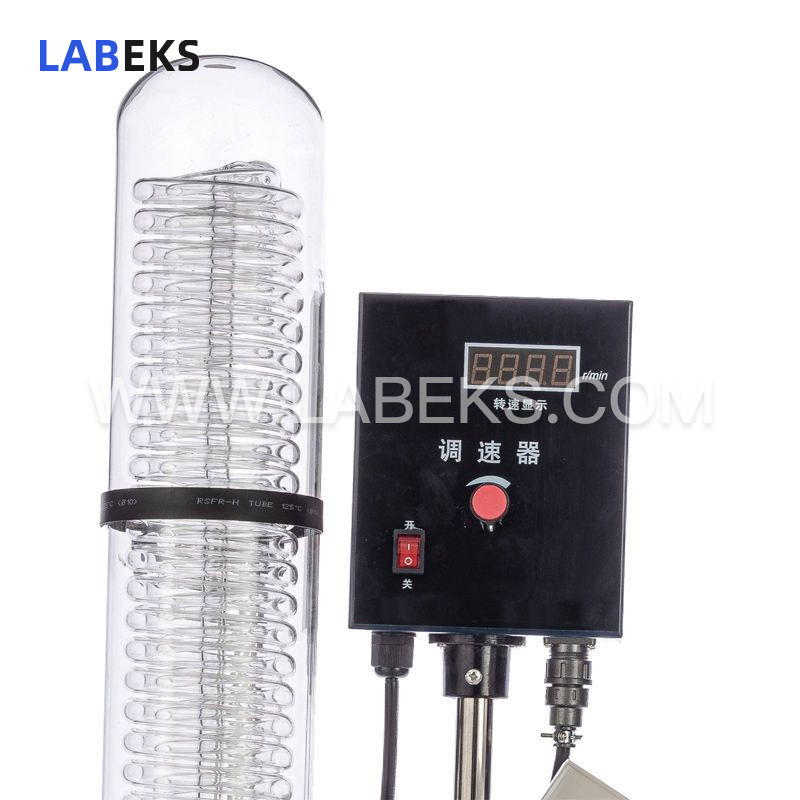

2. Electronic stepless speed adjustment allows precise fine-tuning via knob operation, with digital display of rotational speed.

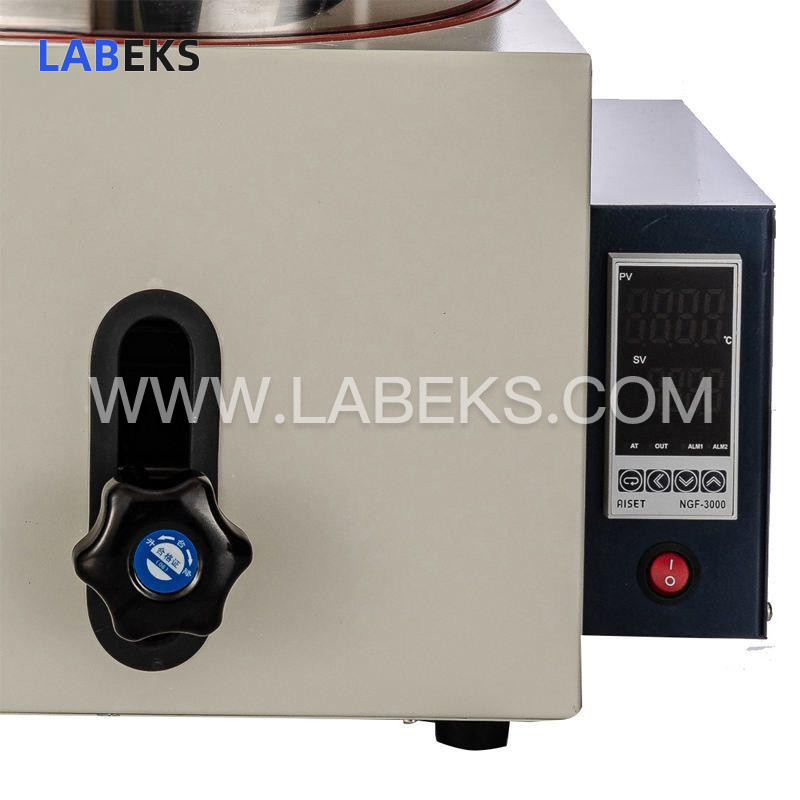

3. The constant temperature bath features digital temperature display, equipped with a K-type sensor at the bottom of the vessel and a stainless steel probe.
4. A vacuum pressure gauge provides real-time vacuum level readings via a clear pointer display.
5. The main frame consists of cold-rolled steel with anti-corrosion coating and aluminum alloy; the bath vessel is crafted from stainless steel. The sealing system utilizes a combined PTFE + fluororubber composite seal.

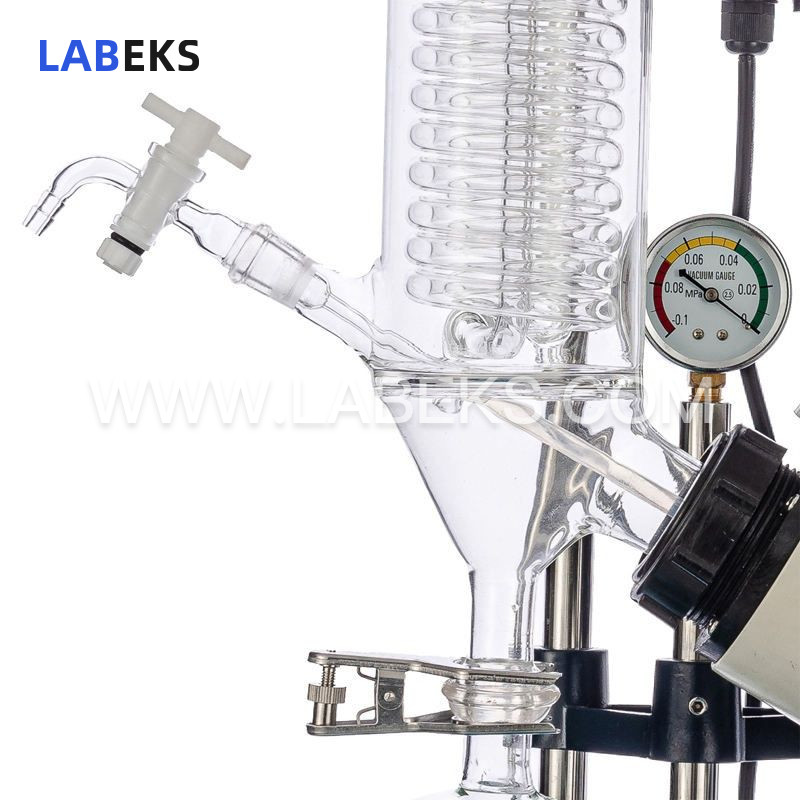

6. Integrated condenser with an upright double-layer serpentine coil configuration.
7. Piston-type feeding valve with a polytetrafluoroethylene extension tube enables continuous sample feeding to the evaporation flask under vacuum conditions.

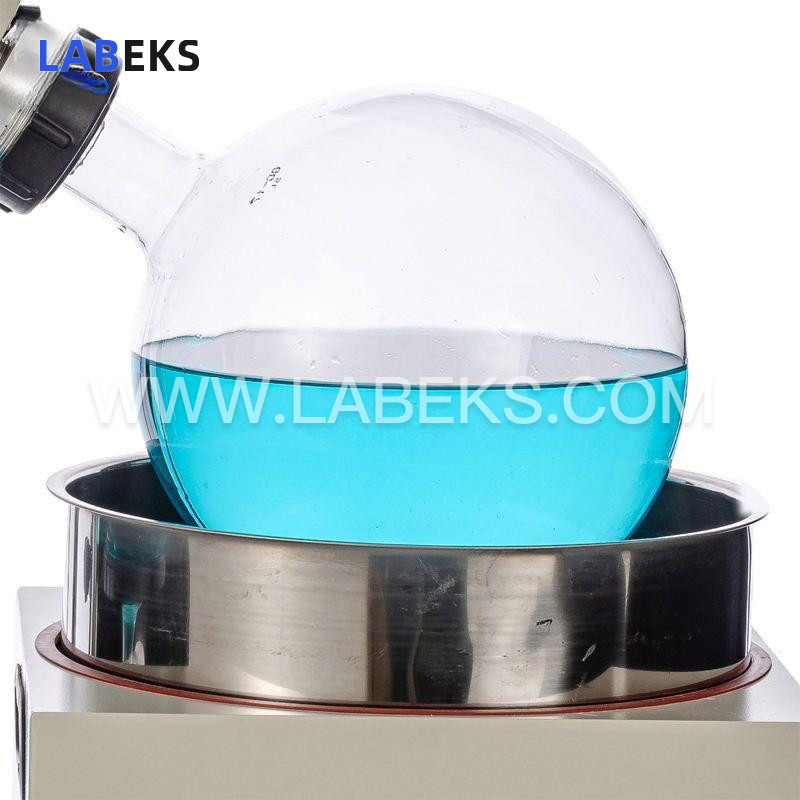

8. The heating bath is adjusted vertically via a handwheel; dual fuse safety protection is provided for both rotation and heating systems.
9. Rotation and heating functions are controlled via dedicated power switches, with an ON-OFF tilt button for operational convenience.

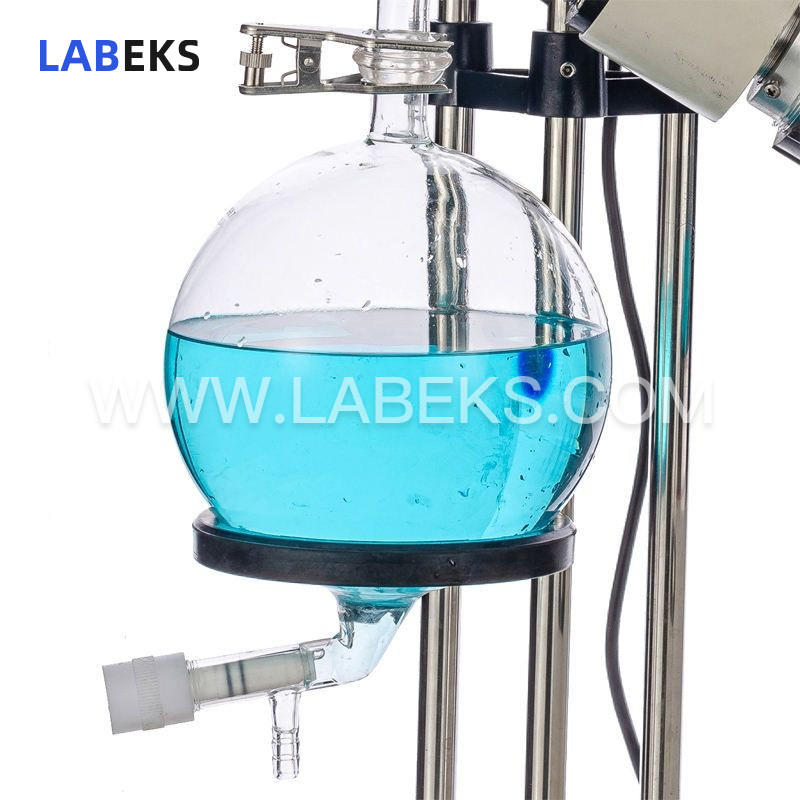

10. The collection flask, positioned beneath the condenser, is fitted with a cap-type PTFE valve.
specifications
Model | LRE-501 |
|---|---|
Voltage/Frequency | 220V/50HZ |
Whole power | 2040W |
Rotary power | 40W |
Heating power | 2000W |
Vacuum degree | 0.0098Mpa |
Rotary flask volume | 5L,Φ230mm/Φ50Flangeport |
Receiving flask volume | 3L,Φ195mm/Upper with 35#ball mill port，down with DN20 screw port |
Rotary speed | 0-120rpm/min |
Temp.cotrolling range | room temperature -180℃ |
Temp. accuracy | ±1℃ |
Flask lifting distance | 200mm |
Condenser size | Φ100*530H(mm) ,down35# ball mill port |
Condensation area | 0.26㎡ |
Charging valve | 19# standard plug valve, feed nozzle(pagoda-shapeconnectors),outer diameter 10mm |
Vacuum suction nozzle | Pagoda-shape connectors, outer diameter 10mm |
Condensing coil in and out circuation nozzle | Pagoda-shape connectors, outer diameter 12mm |
Baiting valve | Side discharging nozzle(pagoda-shape connectors), outerdiameter 15mm, 200mm from the floor |
Pot bravery size | Φ280*170H(mm)about10.4L, 7.5kg |
Overall dimensions (W*L*H) | 760*330*1030mm |
Net weight | 24.5kg |
Packing dimensions | 900*620*470mm, 0.29m³ |
Packing weight | 41.5kg |
