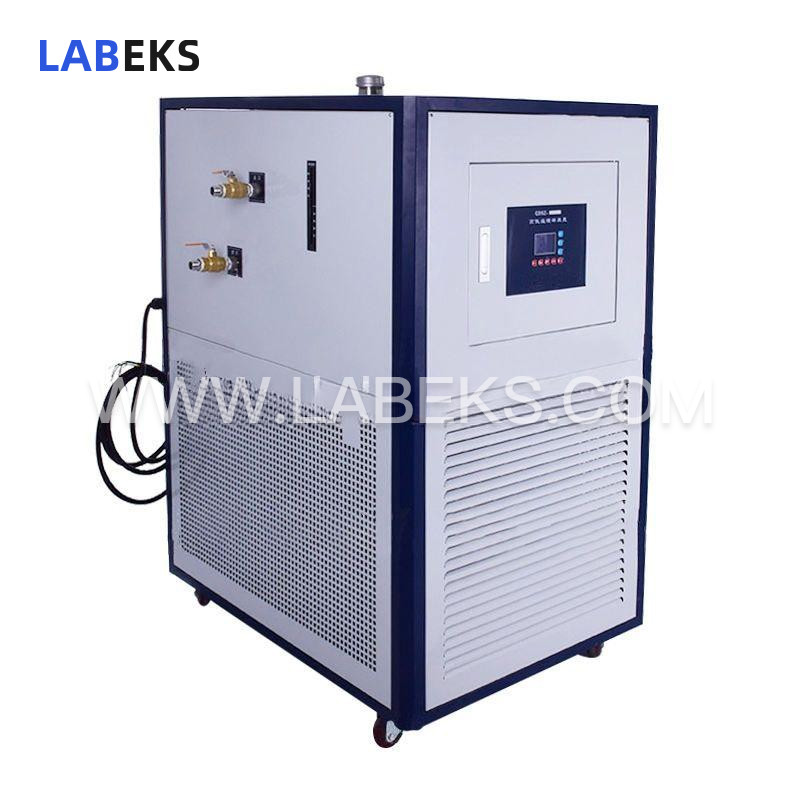

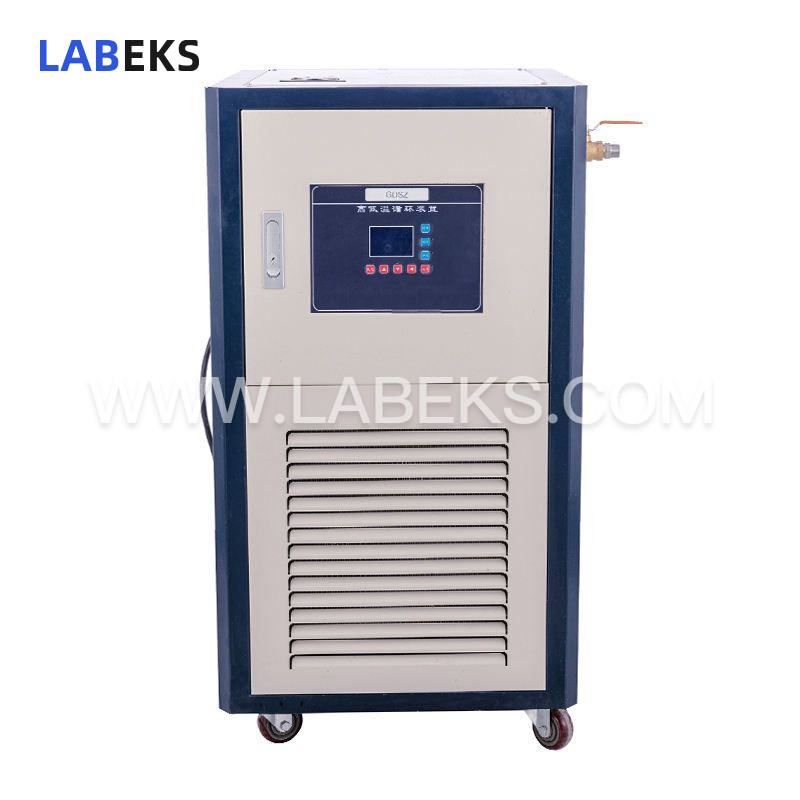

5L Recirculating Chiller Heater with ±1°C Temperature Accuracy and Imported Compressors
Designed to deliver precise indirect temperature control for reactor materials, this Recirculating Chiller Heater integrates cooling, heating and circulation systems, featuring a fully enclosed compressor-based refrigeration unit with plate heat exchangers and multiple safety protections.
- modelLGD-5/20 LGD-5/40 LGD-5/80
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The heating segment utilizes electric heating tubes to warm the circulating fluid. Via an integrated circulation pump and external circulation pipelines, the refrigerant or heat transfer fluid is delivered to the jacket of matching equipment, enabling indirect cooling and heating of reactor contents.

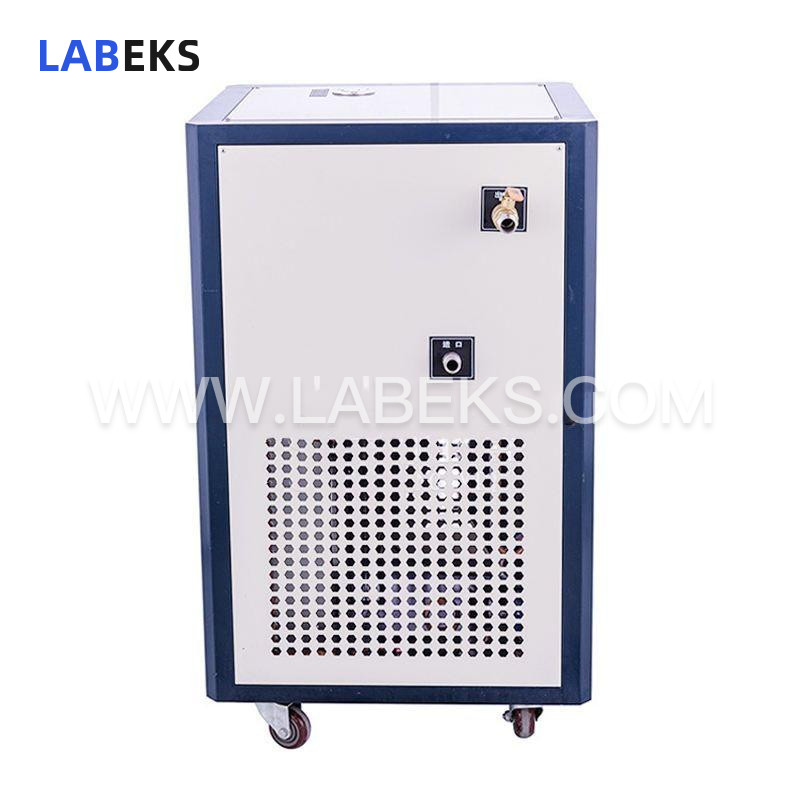

For external circulation operation, connect the unit’s upper outlet pipe to the kettle body’s lower inlet pipe; the circulating fluid will then flow back to the unit’s lower return port via the kettle’s upper circulation port, creating a closed circulation loop.
features
1. Incorporates fully imported compressors sourced from France and Denmark.
2. Delivers standard temperature control accuracy of ±1°C; an external sensor can be added to achieve a temperature difference accuracy of ±0.5°C.
3. Overtemperature limit protection function: the unit automatically powers off when its maximum temperature threshold is exceeded to prevent uncontrolled operation.
4. Compressor overheating protection: the compressor automatically shuts down once its maximum operational temperature limit is reached.
5. Water-cooled models include water flow and low water pressure safety protections.
6. Equipped with dedicated power supply protection mechanisms.
specifications
Model | LGD-5/20 | LGD-5/40 | LGD-5/80 |
|---|---|---|---|
Operating temperature range | -20～+200℃ | -40～+200℃ | -80～+200℃ |
Optimum ambient temperature | 5～35℃ | 5～35℃ | 5～35℃ |
Environment humidity | ≤70％ventilation | ≤70％ventilation | ≤70％ventilation |
Power supply | 220V/50HZ 1phase | 220V/50HZ 1phase | 220V/50HZ 1phase |
Safety protection | Delay,overcurrent, overheating, overtemperature | Delay,overcurrent, overheating, overtemperature | Delay, overcurrent,overheating, overtemperature |
Display | LCD display, key operation | LCD display, key operation | LCD display, key operation |
Temperature control accuracy | ±1℃ | ±1℃ | ±1℃ |
Sensor | PT100 | PT100 | PT100 |
Total power | 3835W | 2900W | 3600W |
Heating power | 3000W | 2000W | 2000W |
[Compressor]Specification | 1P | Totally closed | Totally closed |
[Compressor]Quantity | 1 | 1 | 2 |
[Compressor]Power | 735W | 736W | 1472W |
[Compressor]Cooling capacity | 2324W | 2208W | 4416W |
[Circulation pump]Power | 100W | 100W | 100W |
[Circulation pump]Head | 4-6M | 4-6M | 4-6M |
[Circulation pump]Flow | 20-40L/min | 20-40L/min | 20-40L/min |
[Circulation pump]Pressure | ≤0.4MPa | ≤0.4MPa | ≤0.4MPa |
Refrigerant | R22 | R404 | R404A |
Plate Heat Exchanger [Heat Exchange Area] | Heat exchange area 0.53㎡ | / | / |
Body material | Cold plate sprayanti-corrosion | Cold plate sprayanti-corrosion | Cold plate sprayanti-corrosion |
Outer loop interface | 4 points wire mouth with 4points × 2 meters metal circulation pipe two | 4 points wire mouth with 4points × 2 meters metal circulation pipe two | 4 points wire mouth with 4points × 2 meters metal circulation pipe two |
Circulating fluid | Grade A Silicone Oil | Grade A Silicone Oil | Grade A Silicone Oil |
Machine size(LxWxH) | 400*530*740mm | 420*550*780mm | 420*550*780mm |
Machine net weight | 62KG | 62KG | 75KG |
Package size | 470*620*910mm,0.27m³ | 450*580*930mm | 450*580*930mm |
Package weight | 80KG | 72KG | 85KG |
