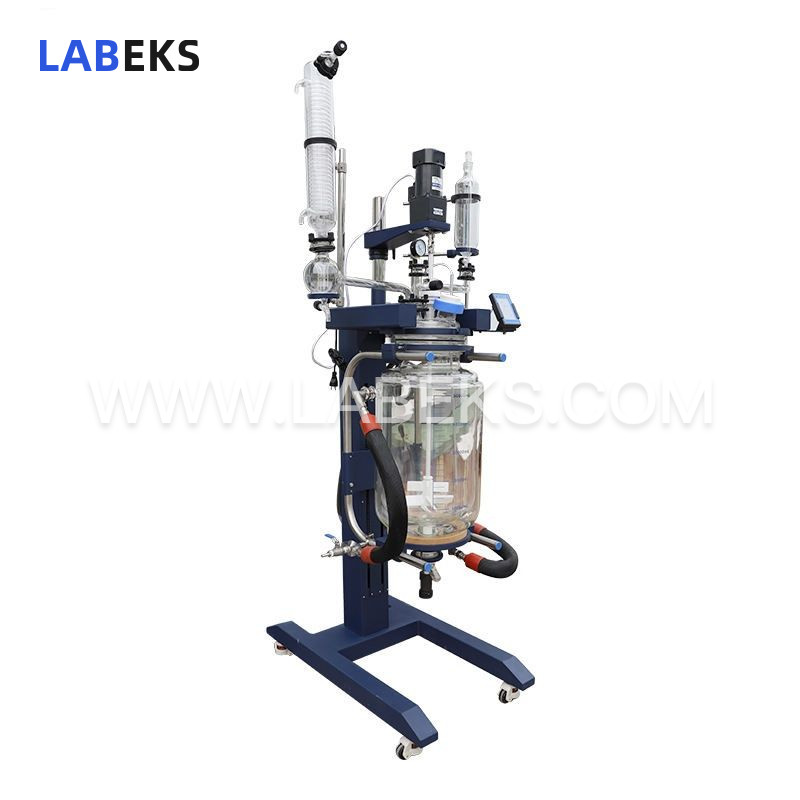

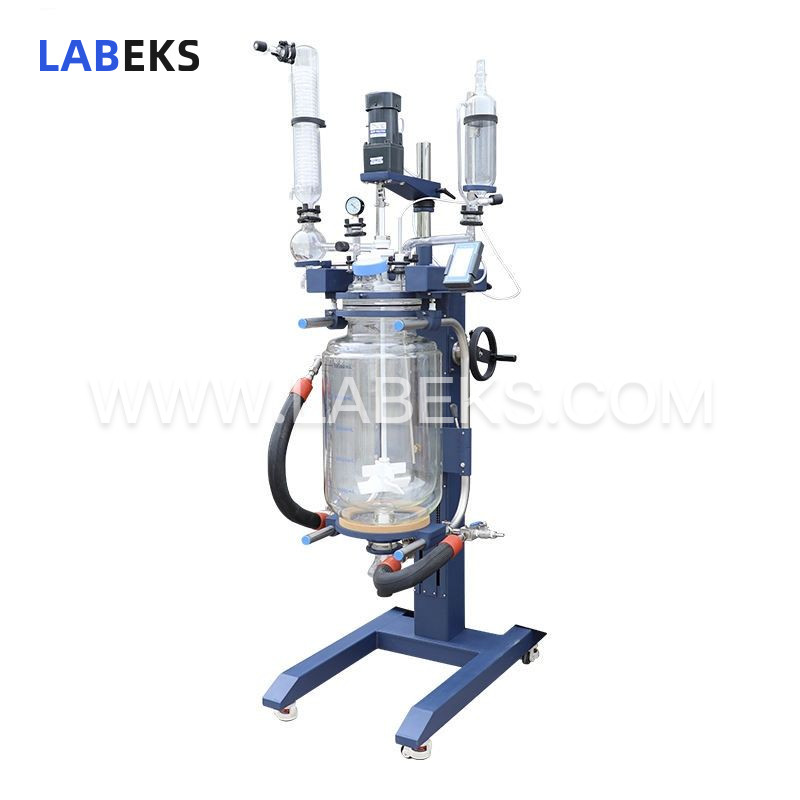

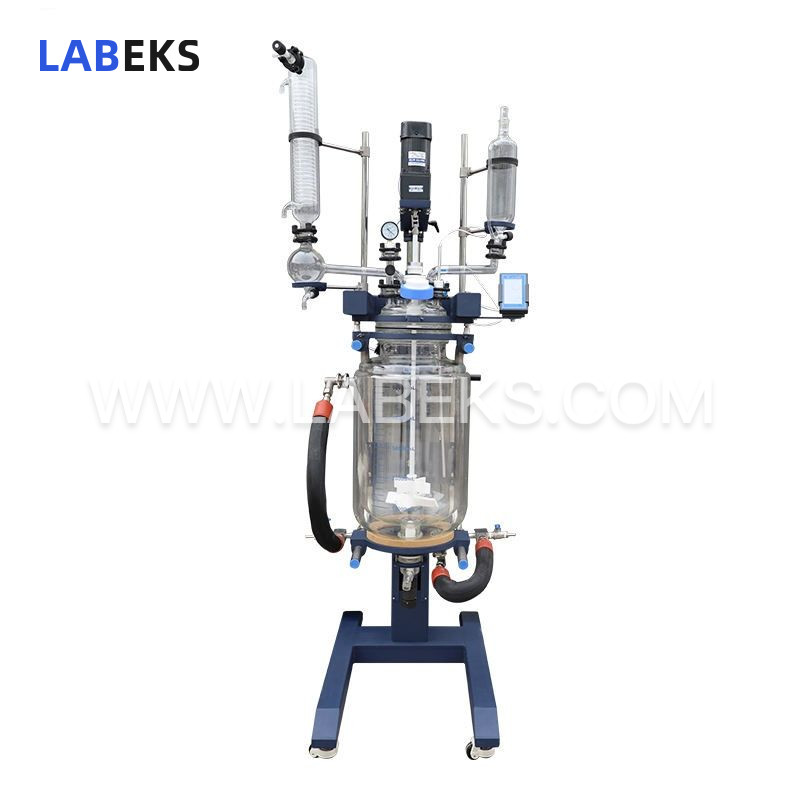

50L Jacketed Glass Reactor with Vacuum Monitoring & Digital Temp-Speed Display
For modern fine chemical, biopharmaceutical and scientific research operations, the jacketed glass reactor supports concentration, distillation, reflux, separation and purification under constant speed, force and temperature, making it an ideal instrument for teaching, experiments, pilot testing and production.
- modelLGR-50S
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

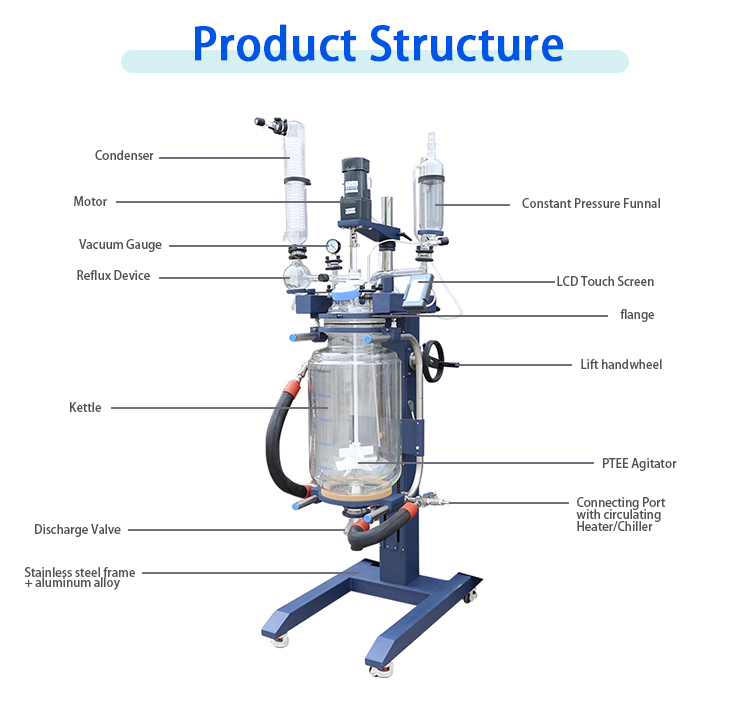

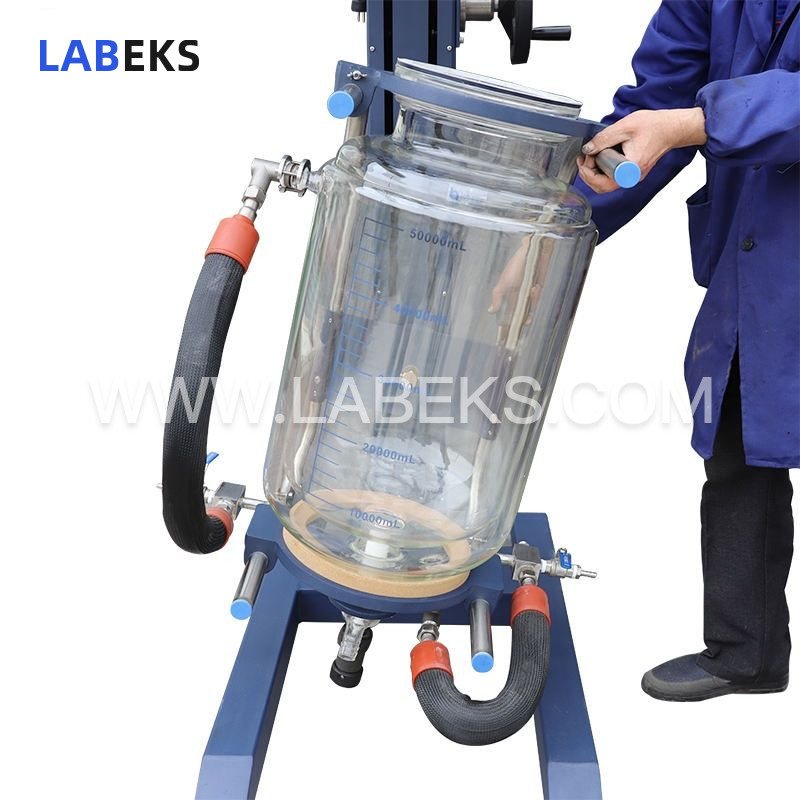

Inject thermostated (high or low temperature) heating fluid or coolant into the double-layer reactor jacket to heat or cool the reactor contents at a constant temperature, while delivering uniform stirring. Materials undergo reactions within the kettle, with precise control over evaporation and reflux processes. The kettle lid and stirring system can be lifted as a unit, and the kettle body rotates 150 degrees to allow direct pouring of viscous materials for easy cleaning. Liquid materials can also be discharged via the bottom outlet, ensuring effortless operation. This is ideal equipment for modern chemical sampling, petrochemical testing, experimental trials, biopharmaceutical production and new material development.
features
1. The reactor body is constructed from borosilicate glass (GG-17), boasting excellent physicochemical properties and full transparency for clear visibility of internal processes.
2. Equipped with PTFE components and mechanical seals featuring proprietary technology, the reactor delivers superior vacuum performance and an extended service life.
3. The stainless steel stir bar is coated with PTFE, suitable for stirring a wide range of solvents without causing contamination or corrosion.
4. Both the stirring motor and lifting motor are low-speed booster motors, ensuring stable operation, high torque, spark-free performance and a long lifespan.

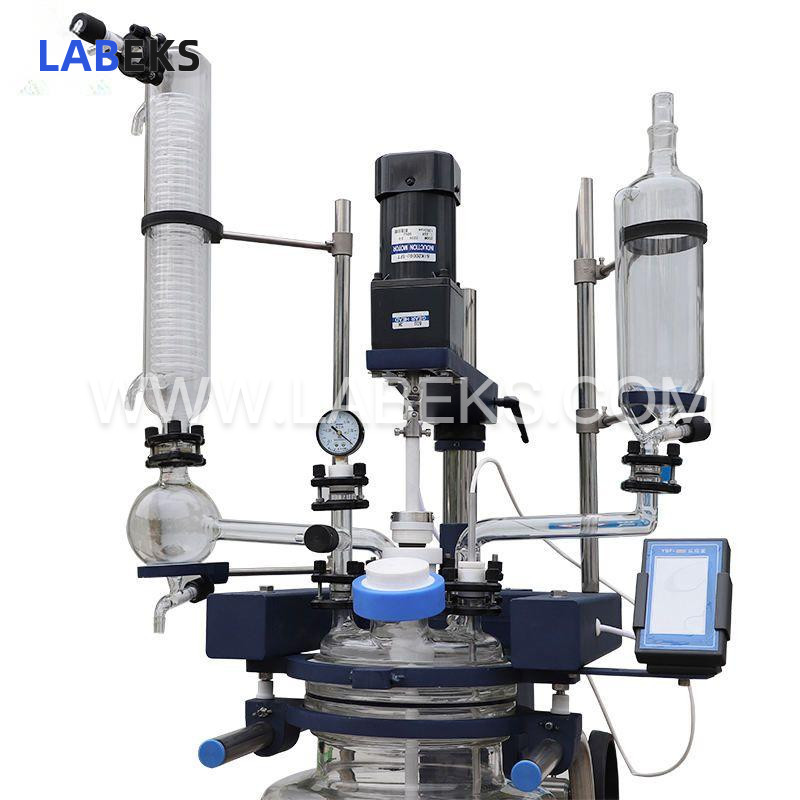

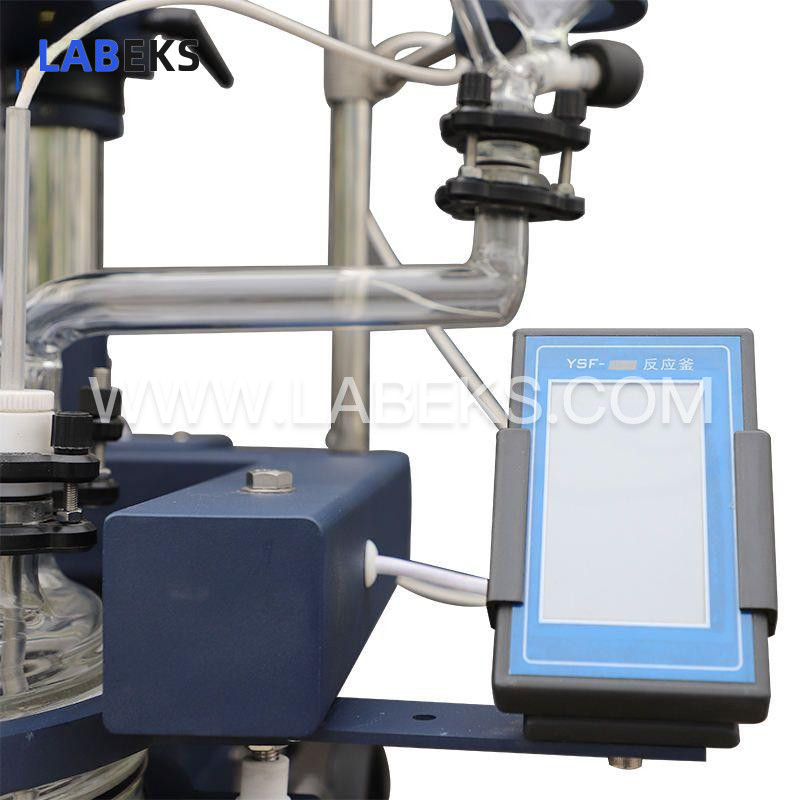

5. This reactor features a speed and temperature dual digital display governor. Rotational speed can be adjusted via a control knob for intuitive operation, and a PT100 temperature probe inside the kettle enables real-time monitoring of material temperature.
6. With an integrated vacuum display function, it allows users to select the optimal working vacuum level for high-boiling-point materials.
7. The main frame is composed of stainless steel and aluminum alloy, offering an attractive appearance, robust structure and excellent corrosion resistance.
8. The compact, well-designed structure includes brake-equipped universal wheels, enabling full unit mobility and easy operation.
9. A dead-angle-free angled glass discharge valve minimizes stirring blind spots and facilitates convenient material feeding.
specifications
Model | LGR-50S | |
|---|---|---|
Kettle volume | 50L, innerdiameter 365mm, outer diameter 410mm, inner length 576mm | |
Sandwich volume | about 16L | |
Voltage/frequency | 220V/50HZ | |
Overall power | 160W | |
Stirring power | 120W1/3 | |
Lifting power | 40W1/12.5 | |
Stirring speed | 0-450r/min | |
Temperature rangevessel can bear | -80 to 250℃ | |
Temperatureaccuracy | ±1℃ | |
Vacuum degree | 0.098Mpa | |
Cover diameter | Φ265mm | |
6port of cover | Stirring port | Φ50mm screw port |
Condenser refluxport | 50# ball millport | |
Constantpressure funnel port | 40#standard port | |
Relief port | 34#standard port | |
Temperaturemeasure port | Φ24mm flangeport | |
Solid feedingport | Φ80mm screw port，inner diameter Φ50mm | |
Stirringpaddle | Φ17*1000H(mm),leafing 190mm | |
Condenser size | Φ120*600H(mm),down with Φ60mm flange port | |
Condensationarea | 0.5㎡ | |
Reflux elbow | upper with Φ60mmflange port，left with 50# ball mill plug | |
Constantpressure funnel | 2L, upper with29# standard port matched with glass plug, down with 40# standard plug, downwith 40#standard port*40# standardplug, S-shape adapter and connect with the cover | |
Relief valve | 34# standardplug valve，vent nozzle (pagoda connector), outerdiameter 12mm | |
In and outcirculation port of the sandwich | Φ45 flange portmatched with 6 points buffer device, external for 4 points screw port | |
Baiting port | Φ75mm flangeport，Φ33mm baiting port，inclined discharging port(pagoda connector)Φ34mm，from floor 290mm | |
Vacuum suctionnozzle | padogaconnector,outer diameter 12mm | |
In and outcirculation nozzle of condenser coil | padogaconnector,outer diameter 15mm | |
Lifting distance | 740mm(acturally, subject to the stirring rod is 50mm away from the top of cover ) | |
Kettle rotation | Turn left 150° | |
Overalldimension (W*L*H) | 750*950*(2320-2950after lifting)mm | |
Net weight | 148kg | |
Packingdimension | 2380*680*1080mm，1.75m³ | |
Packing weight | 225kg | |
