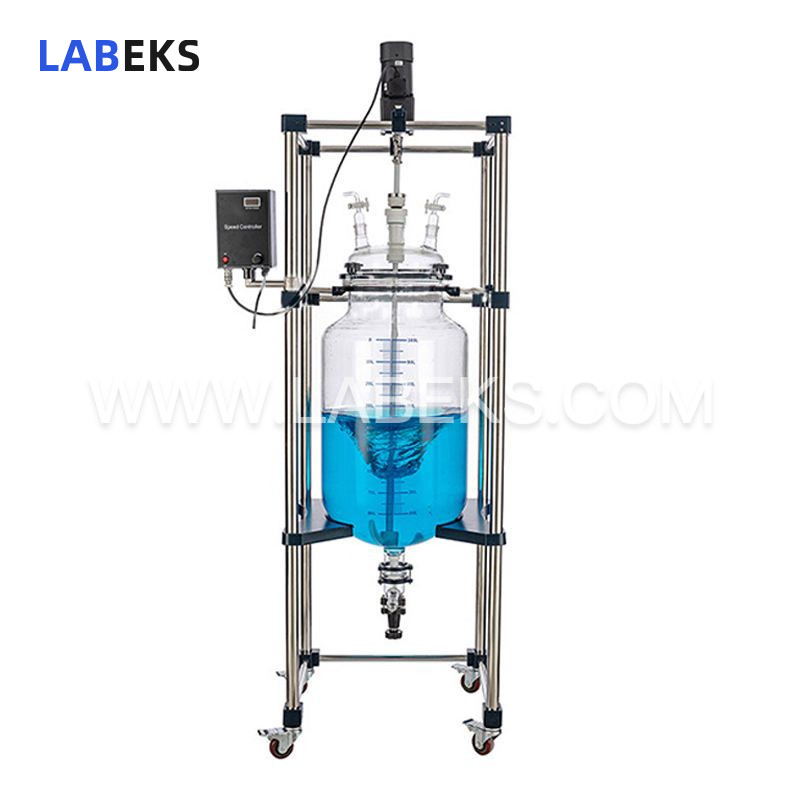

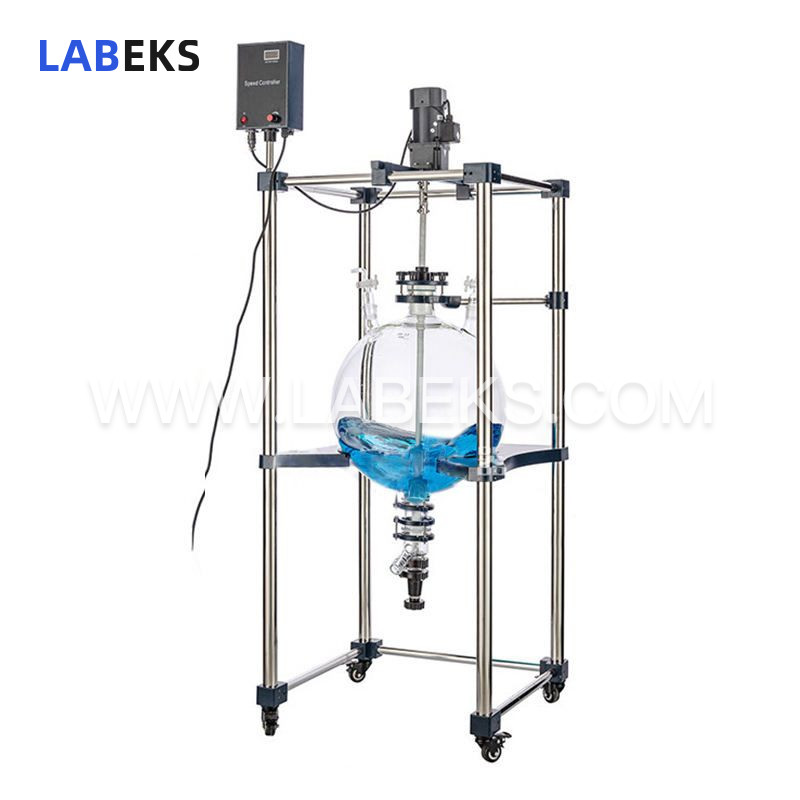

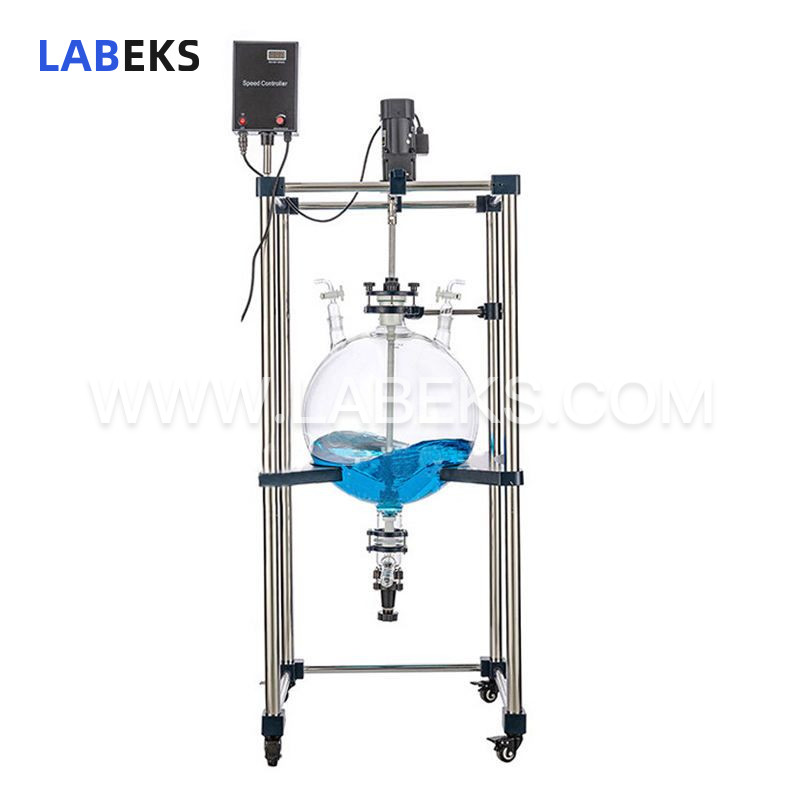

50L/100L Glass Liquid Separator: Vacuum-Enabled for Biopharmaceutical Liquid-Liquid Extraction
Crafted to meet the distinct needs of biopharmaceutical development firms, the glass liquid separator—an enhanced derivative of single-layer glass reactors—delivers reliable performance for liquid-liquid extraction and ambient-temperature chemical reactions.
- modelLFY-50/LFY-100
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Also known as an extraction separator, the glass liquid separator supports mixing of various materials for chemical or physical reactions, followed by separation and extraction of newly generated substances based on differences in specific gravity. Operated under vacuum, this equipment delivers fast, uniform reaction and collection results. Based on usage requirements, it can also serve as a standalone liquid separator or a conventional reactor.
features
Equipped with ceramic bearings and mechanical seals, the stirring system prevents wear and chipping of the stirring rod for sustained operational durability.
Its low-speed power-boosting motor comes with electronic stepless speed regulation, knob-controlled fine-tuning, and digital speed display, enabling safe, stable, and continuous operation.
The crescent-type stirring blade is made of 304 stainless steel combined with PTFE; the stirring rod consists of a 304 stainless steel core wrapped in a PTFE tube.
All glass components are constructed from GG17 high borosilicate glass, paired with a PTFE discharge valve that ensures full liquid discharge with no residue left on the discharge side.
The frame-type main body is fabricated from a robust combination of aluminum alloy and stainless steel.
Brake-equipped universal wheels at the machine’s base allow for full-unit mobility and easy operational handling.
Integrated fuse protection provides an added layer of operational safety.
specifications
Model | LFY-50L | LFY-100L |
|---|---|---|
Capacity | 50L cylinder type φ365mm inner length576mm | 100Lcylinder type φ465mm inner length 696mm |
Voltagefrequency | 220V/50Hz | 220V/50Hz |
Motor Power | 120W 1/3 | 200W 1/3 |
Rotatingspeed | 0-450rpm/min | |
Kettle body | φ470mm four ports | φ340mmfourports |
Stirringport | φ80mm flange mouth | |
Feeding port | 34# standard port | |
Decompressionport | 34# standard port | |
Lowerdischarge port | φ80mm flange mouth | |
Mixer | φ17*900H(mm) Leaf spread 190mm | φ17*1200H(mm)Leaf spread 240mm |
Feedingvalve | 34# standard plug valve feeding nozzle(pagoda joint) outer diameter 12mm | |
Pressurereducing valve | 34# standard plug valve vent nozzle(pagoda joint) outer diameter 12mm | |
Dischargeport | φ80mm flange φ33mm discharge holeOblique discharge port (pagoda joint) φ34mm 350mm from the ground | |
The wholemachine occupies space size | 720*600*1800mm | 750*800*2100mm |
Machine netweight | 51KG | 67KG |
Package Size | 1680*620*650mm wooden box 0.68m³ | 1920*720*760mmwooden box 1.06m³ |
Packageweight | 82KG | 115KG |
