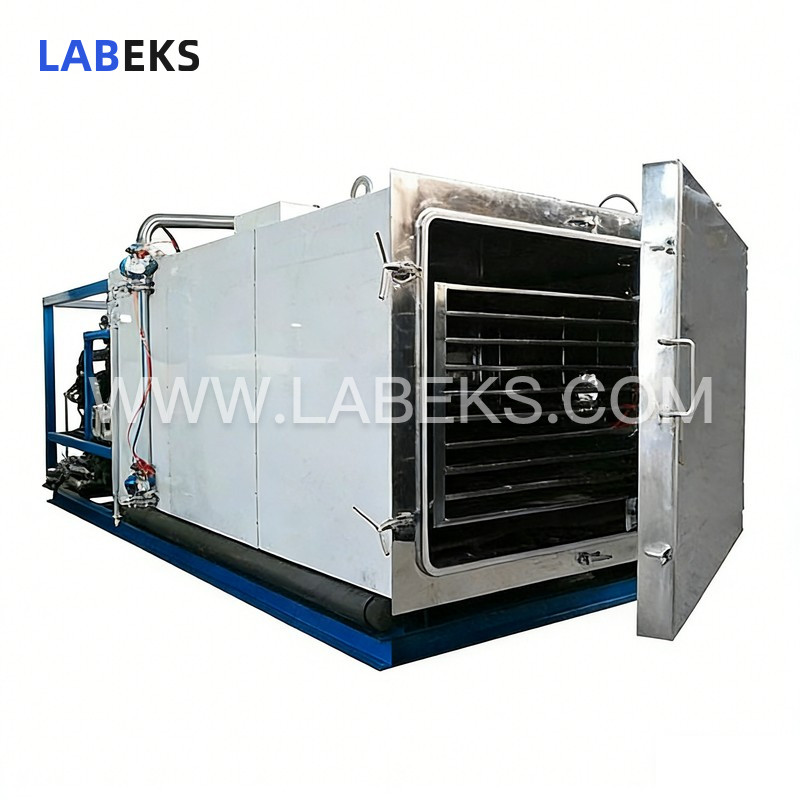

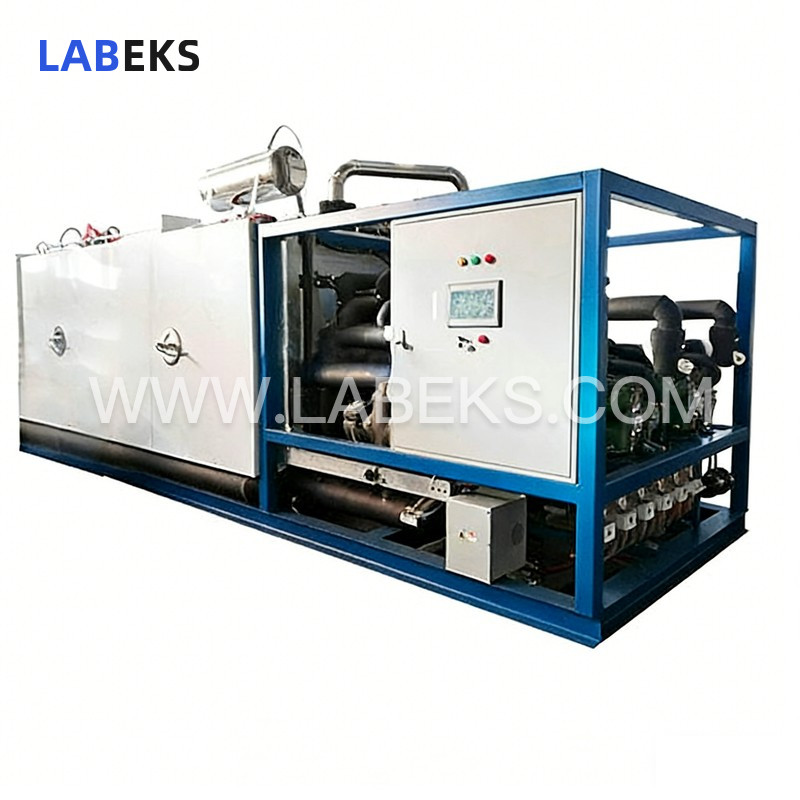

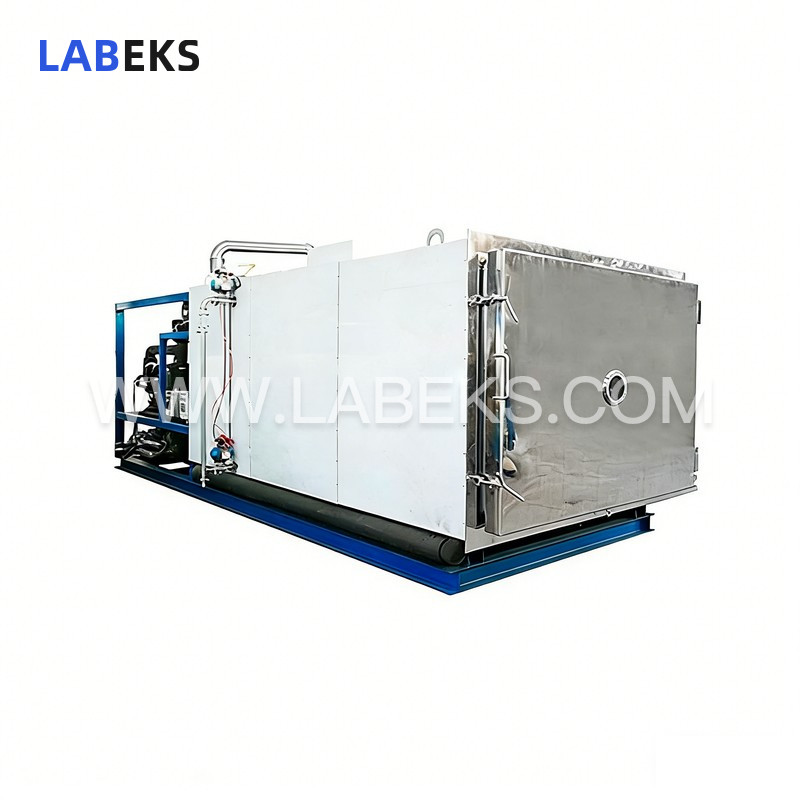

500kg Herbal Freeze Dryer: Industrial Control System for Pharma & Food Manufacturing
LABEKS offers the GZL-50 industrial vacuum freeze dryer, a system that supports long-term preservation of materials while retaining their original chemical and biological properties. Ideal for high-end raw materials, Chinese herbal medicine, biological samples, wild vegetables, dehydrated vegetables, food, fruits, chemicals, pharmaceutical intermediates and other materials.
- modelGZL-50
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Widely utilized in medicine, pharmacy, biological research, chemical engineering and food manufacturing, freeze dryers facilitate the long-term preservation of products. Post freeze-drying, items can be rehydrated to their original state while retaining full chemical and biological integrity.
features
1. Equipped with an industrial-grade embedded touch screen and dedicated SH-HPSC-IV modular controller, this system delivers exceptional stability, reliability and high control precision.
2. The professionally engineered LYO-CONTROL system stores multiple process recipes and supports real-time process adjustments during drying to enhance process optimization efficiency.
3. An optional high-performance LYO-MEGA host computer control system is available, capable of storing operational data, curves and alarm records for up to 10 years to boost product traceability. It also facilitates intuitive observation, operation and fault diagnosis.
4. An optimized drying curve control algorithm regulates both product heating rate and vacuum levels throughout the drying phase.
5. Vacuum levels are dynamically adjusted during drying to prevent foaming and splattering of special materials, thereby enhancing drying efficiency.
6. A specialized gas diversion design and control technology ensures superior moisture capture capability and high drying efficiency.
7. The high-efficiency mixed refrigerant medium features a low freezing point and high boiling point, enabling exceptional heat exchange efficiency.
8. Shelves are manufactured using specialized techniques, offering excellent pressure resistance, high flatness and uniform temperature distribution.
9. Dual manual and automatic control modes are available for flexibility: manual mode supports process development, while automatic mode is optimized for large-scale production runs.
10. Configurable user access levels and passwords enable structured, decentralized operational management.
11. Custom non-standard configurations are available to meet specific user requirements.
specifications
Model | GZL-50 |
|---|---|
Drying area (㎡) | 51 |
Input capacity (10mm thickness) (L) | 500 |
Shelf number (Layers) | 17+1 |
Shelf size (mm) | 1500*1000 |
Shelf space (mm) | 80 |
Temperature range (°C) | -50~+80 |
Water vapor condensation (Kg/D) | ≥1000 |
Cold trap temperature (°C) | ≤-75 |
Cooling mode | Water cooling |
Defrost mode | Water immersion |
Vacuum (Pa) | ≤5 |
Power (KW) | 210 |
Size (L*W*H) (mm) | 9000*2400*4500 |
Weight (kg) | 30000 |
