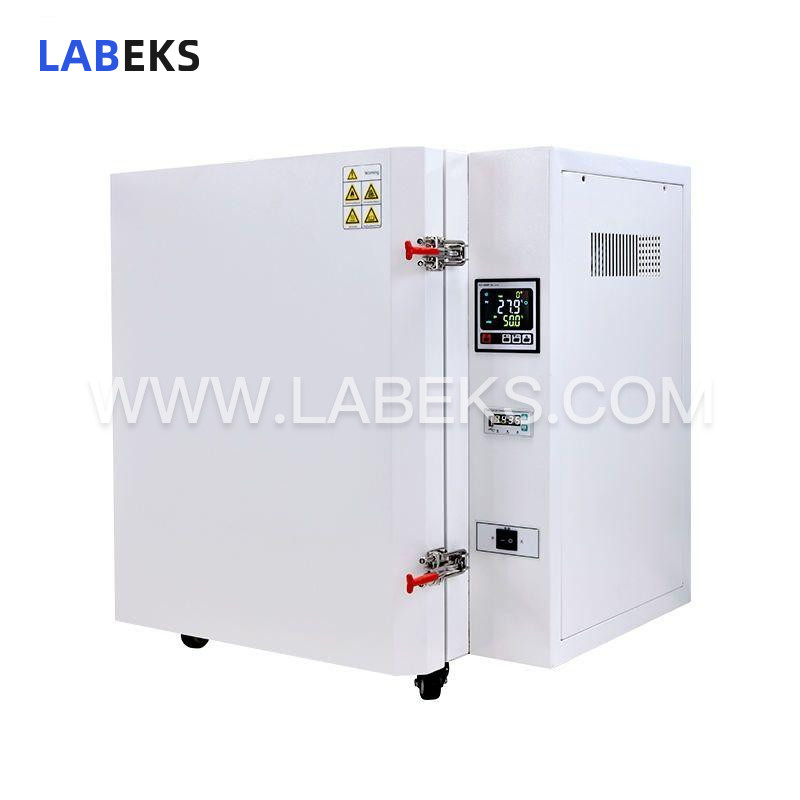

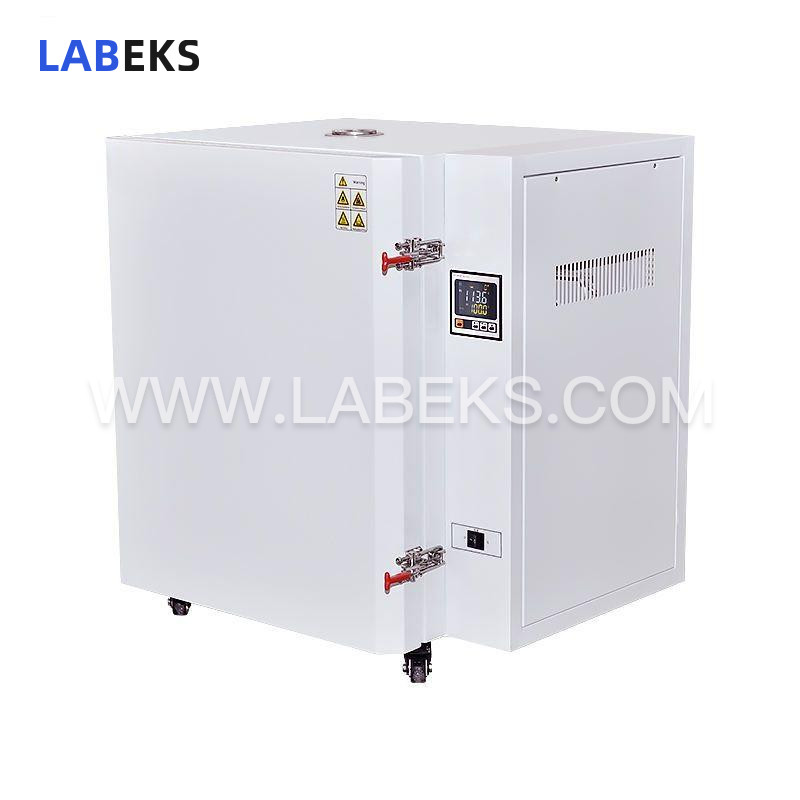

500°C High Temperature Drying Oven with PID Control for Lab & Industrial Use
Engineered for drying, baking, sintering, curing, heat treatment, insulation and high-temperature testing in industrial plants, medical facilities, research institutes and universities, the high temperature drying oven ensures consistent, precise thermal processing.
- modelLTWG Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

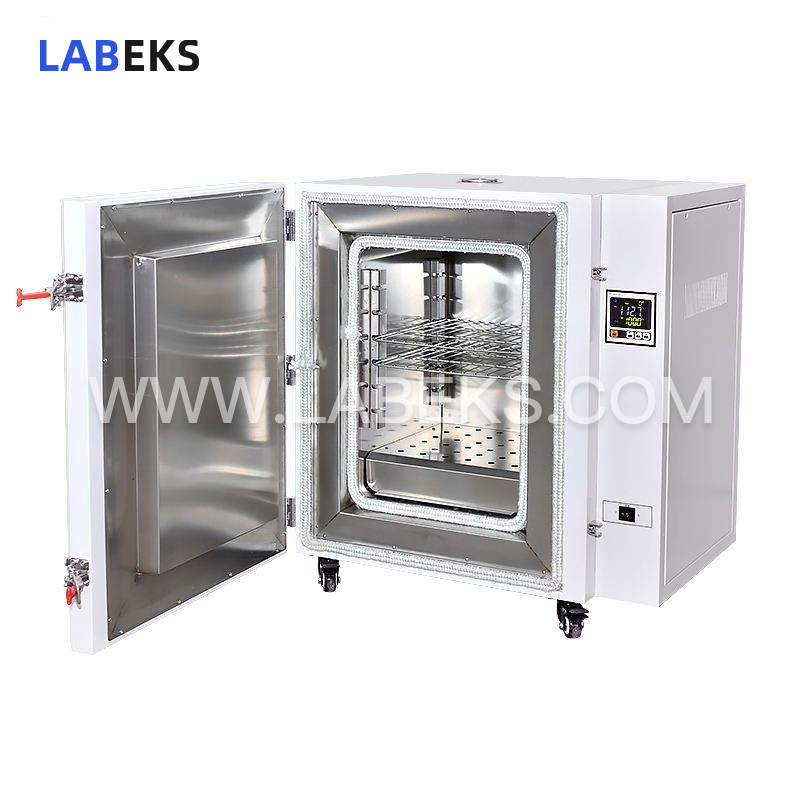

Constructed with a high-quality steel outer shell and a 304 hairline brushed stainless steel inner chamber, this drying oven provides excellent thermal insulation performance. A blower mounted on the top of the chamber, paired with built-in air ducts, enables regular hot air circulation to enhance temperature uniformity inside the oven.
Opening the chamber’s upper exhaust pipe allows internal exhaust gases to be vented outside the unit. The control system is housed in the left-side electrical box, with temperature setting and regulation fully managed by an intelligent microcomputer integrated temperature control system.
features

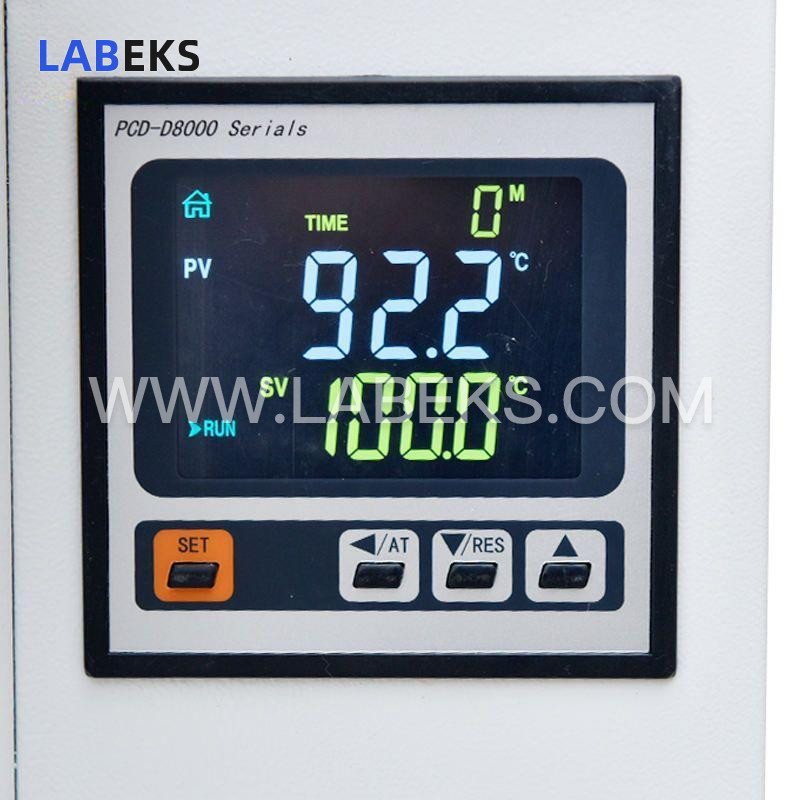

Equipped with an intelligent microcomputer integrated temperature control system featuring PID logic operation capabilities.
Color LCD digital display supports temperature setting, constant temperature maintenance, timing, self-tuning and over-temperature alarm functions.
Offers power failure recovery, sensor self-diagnosis and over-temperature alarm protection functions.
304 stainless steel inner chamber with rounded corner design for effortless cleaning.
Heating elements utilize 304 stainless steel heating tubes for durable, efficient heat output.

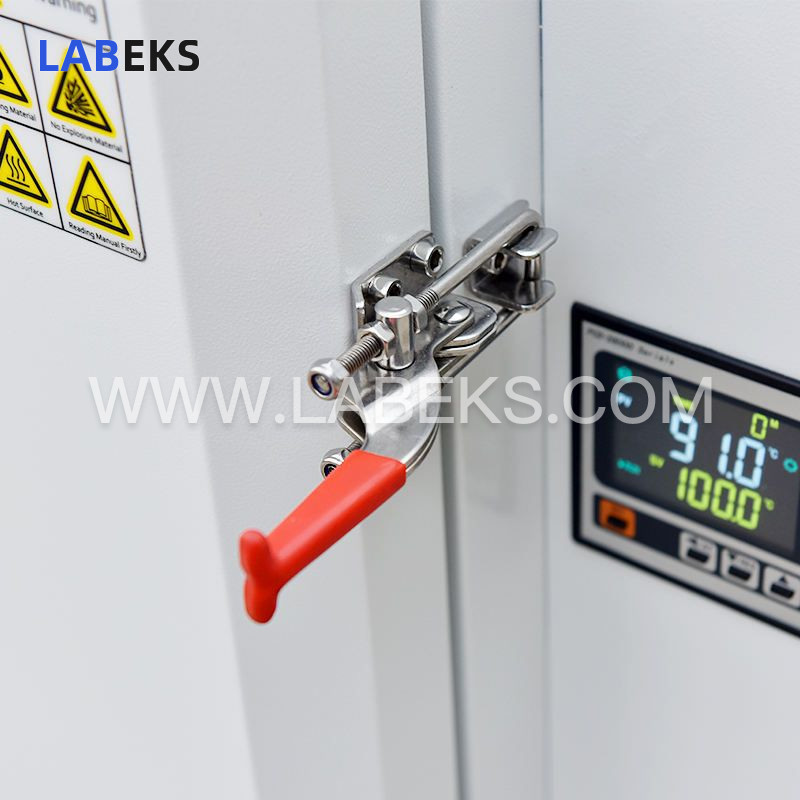

Inverted door lock mechanism automatically engages when the door is closed, enabling easy opening while ensuring excellent sealing performance.
Four lockable casters are included for convenient relocation and stable positioning of the oven.
Capable of performing high-temperature heat resistance tests and heat treatment processes at 400°C/500°C/600°C and below.
specifications
Model | LTWG-6032L | LTWG-6050L | LTWG-6080L | LTWG-6136L | LTWG-6225L |
|---|---|---|---|---|---|
Mode | Forcedhot air circulation | ||||
Operatingtemperature range | RT+10-600°C | ||||
long-termuse temperature | Maximumtemperature 600°C | ||||
580°C | |||||
Constanttemperature fluctuation | ≤±2°C | ||||
Temperatureresolution | 0.1°C | ||||
Temperaturedistribution accuracy | ±2.5% | ||||
Heatingrate | ≥5°C/min | ||||
Interior | 304hairline brushed stainless steel | ||||
Exterior | Cold-rolledsteel sheet with chemical-resistant coating on the surface | ||||
Thermalinsulation material | Aluminumsilicate fiber male | ||||
Heatingpipe | Dust-proofstainless steel heating tube | ||||
Heatingpower | 600°C | 600°C | 600°C | 600°C | 600°C |
3.0KW | 4.0KW | 4.0KW | 5.5KW | 7.0KW | |
Vent | Topinner diameter 40mm | ||||
Sensor | TypeK | ||||
Timingrange | 1-9999min | ||||
Operationmode | Fixedvalue operation, timing operation | ||||
Innerdimension (mm) | 300*300*350 | 350*350*400 | 400*400*450 | 450*550*550 | 500*600*750 |
Dimensions | 770*610*850 | 820*660*900 | 870*710*950 | 920*860*1050 | 970*910*1250 |
Outerdimension (mm) | 790*600*900 | 850*690*970 | 890*730*1010 | 940*880*1110 | 990*940*1320 |
Volume | 32L | 50L | 80L | 136L | 225L |
Traycarrier | 2partitions | ||||
Partitionload-bearing | 10KG | ||||
220V14A | 380V11A | 380V11A | 380V15A | 380V19A | |
accessories | 485interface | ||||
Optional | Programcontroller (30 segments), independent temperature limit controller, sound andlight alarm, timer, printing system, inert gas filling valve, emotional gascontrol system, mobile phone SMS alarm | ||||
