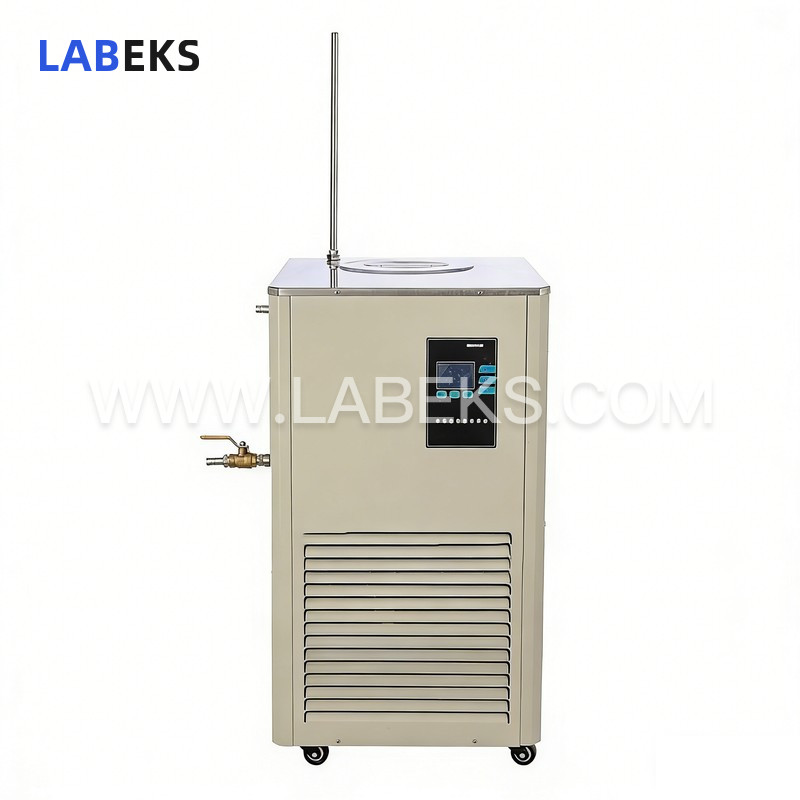

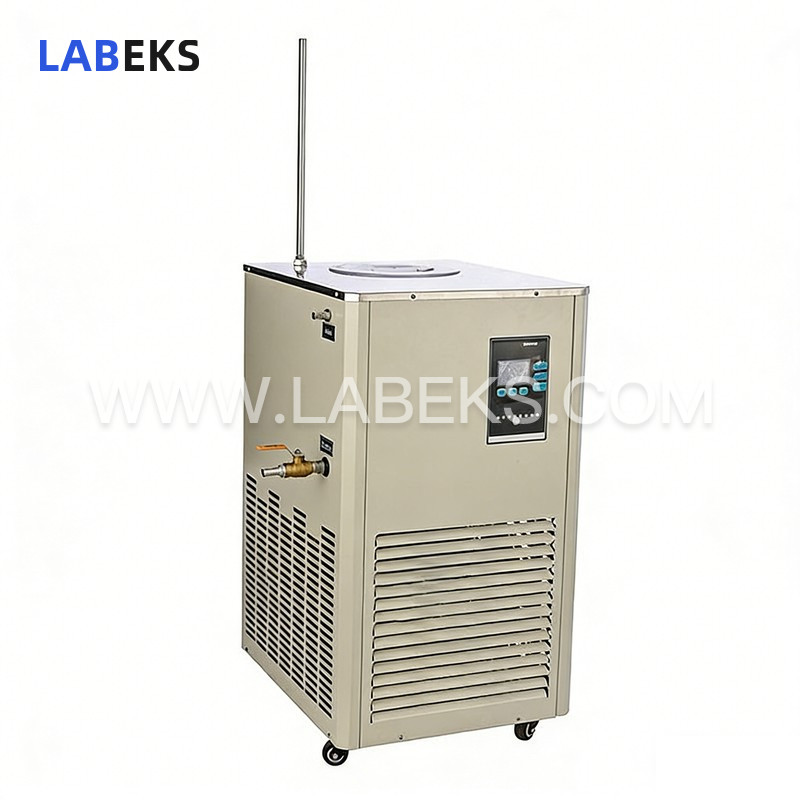

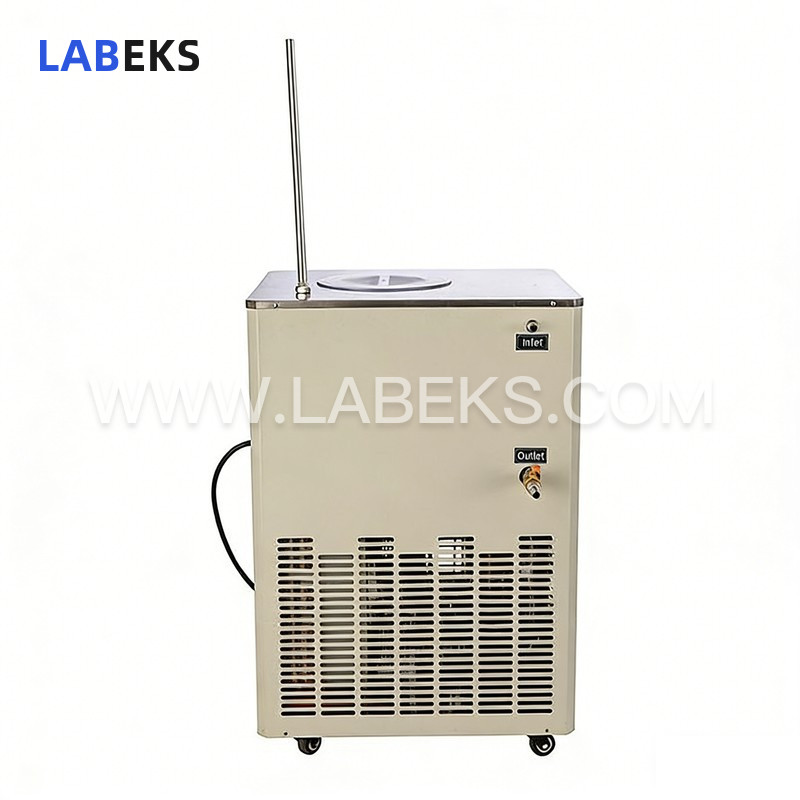

30L Laboratory Water Chiller with Digital Temperature Control for Low-Temperature Lab Processes
Facilitating efficient heat exchange between water and refrigerant in a closed-loop system, the water chiller delivers stable low-temperature control to support lab chemical reactions, sample storage, and seamless integration with precision lab instruments.
- modelDLSB-30
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Utilizing compression refrigeration technology, this low-temperature liquid circulation system enables direct cooling of tubes, reaction flasks, and other components to support low-temperature chemical reactions, as well as the cold storage of chemical and biological samples. Additionally, it is fully compatible with Rotary Evaporators, Vacuum Freeze-Drying Chambers, and Multi-Purpose Circulating Water Vacuum Pumps.
features
1. Digital temperature display paired with microcomputer control ensures intuitive, hassle-free operation.
2. Exceptional cooling capacity and rapid cooling rate significantly enhance overall work efficiency.
3. Imported air-cooled hermetic compressor for consistent, reliable performance.
4. Equipped with high-quality refrigeration-specific relays, protectors, capacitors, and components for guaranteed durability.
5. Operates reliably under challenging conditions including water scarcity, poor water quality, unstable water pressure, extreme water temperature, and high ambient temperatures, effectively safeguarding all types of precision instruments and equipment.
6. The integrated circulating pump features adjustable flow, with customization options available to meet the unique operational requirements of diverse users.
specifications
Model | DLSB-30/30 | DLSB-30/40 | DLSB-30/80 |
|---|---|---|---|
Temperaturerange | -30°C to RT | -40°C to RT | -80°C to RT |
Room Temperature | 5-35°C | 5-35°C | 5-35°C |
Room humidity | ≤70% ventilation | ≤70% ventilation | ≤70% ventilation |
Power supply | 220V 50HZ 1phase | 220V 50HZ 1phase | 220V 50HZ 1phase |
Safetyprotection | Delay, overcurrent, overheating | Delay, overcurrent, overheating | Delay, overcurrent, overheating |
Screen display | LCD screen, key operation | LCD screen, key operation | LCD screen, key operation |
Temperatureaccuracy | ±0.1°C | ±0.1°C | ±0.1°C |
Temperaturesensor | PT100 | PT100 | PT100 |
Total power | 1699W | 2434W | 4691W |
Compressor type | 2P | 3P | 3P |
Compressorquantity | 1 | 1 | 2 |
Compressor power | 1470W | 2205W | 4410W |
Cooling capacity | 4648W | 6972W | 13944W |
Power | 100W | 100W | 100W |
Flow | 20-40L/min | 20-40L/min | 20-40L/min |
Lifting head | 4-6M | 4-6M | 4-6M |
Pressure | ≤0.4MPa | ≤0.4MPa | ≤0.4MPa |
Power | 129W | 129W | 181W |
Heat exchangearea | 11㎡ | 11㎡ | 15.2m² |
Air volume | 2290m³/h | 2290m³/h | 3050m³/h |
Refrigerant | R22 | R22 | R22 |
Condensing coil | Φ12 Copper tube nickel plated | Φ12 Copper tube nickel plated | Φ12 Copper tube nickel plated |
Material | Cold plate spray anticorrosion | Cold plate spray anticorrosion | Cold plate spray anticorrosion |
Tank size | Φ350x350H (mm) about 33L | Φ350x350H (mm) about 33L | Φ350x350H (mm) about 33L |
Outer loopinterface | Φ16mm | Φ16mm | Φ16mm |
Dimension | 590x670x(975+500)mm | 590x670x(975+500)mm | 770x930x(1090+500)mm |
Weight | 94.5KG | 106KG | 199KG |
Package size | 720x590x1170mm,0.5m³ | 720x590x1170mm,0.5m³ | 990x810x1250mm,1m³ |
Package weight | 114KG | 126KG | 241KG |
