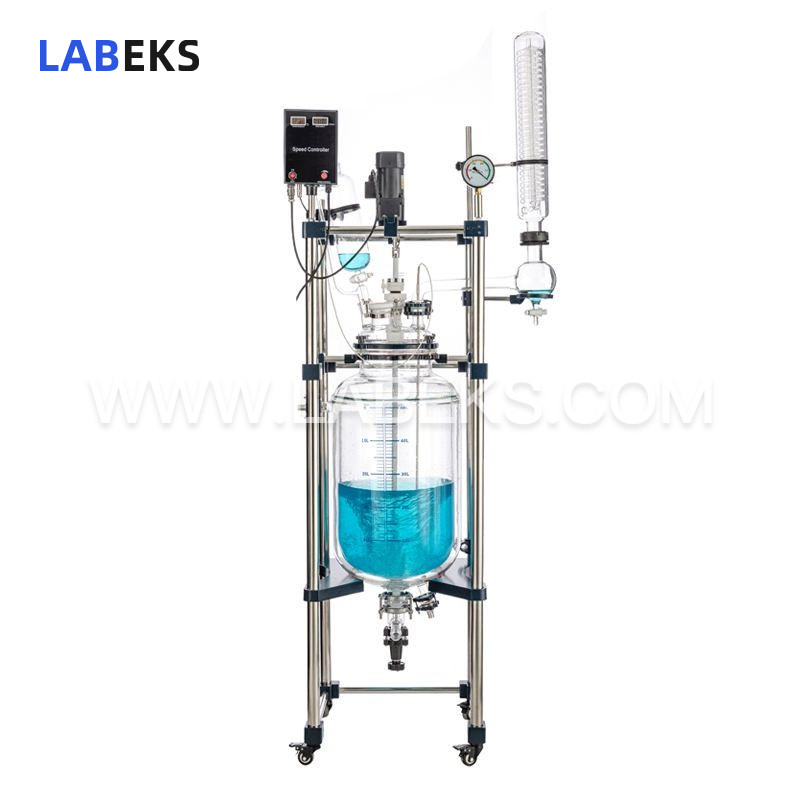

30L Jacketed Glass Reactor for Vacuum Synthesis (-60°C to 250°C)
Designed with a dual-glass structure, the jacketed glass reactor enables mixing reactions of process media in its inner vessel, while its interlayer accepts various thermal sources—cryogenic fluids, hot water, or heated oil—to support cyclic heating or cooling for controlled reactions.
- modelLGR-30L
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Jacketed reaction vessels are engineered for the synthesis of diverse materials under precisely controlled temperature and vacuum conditions. These versatile systems serve as integrated platforms for extraction, purification, distillation, and homogenization processes. Comprising an inner vessel paired with one or two insulating jackets, each reactor leverages temperature differentials generated by a chiller to regulate its internal operating environment. Operating under vacuum, these vessels are optimized for air-sensitive chemical and material synthesis applications. Constructed from glass, our jacketed reaction vessels are available in capacities spanning from 1L to 200L.
features
1.Broad operational temperature range: -60°C to 250°C, enabling diverse thermal process requirements.
2.Complete glassware assembly fabricated from GG3.3 borosilicate glass, offering exceptional resistance to heat, cold, and chemical corrosion.
3.Solvent-resistant PTFE sealing system delivers extended operational longevity, maintaining a vacuum level of -0.098MPa.

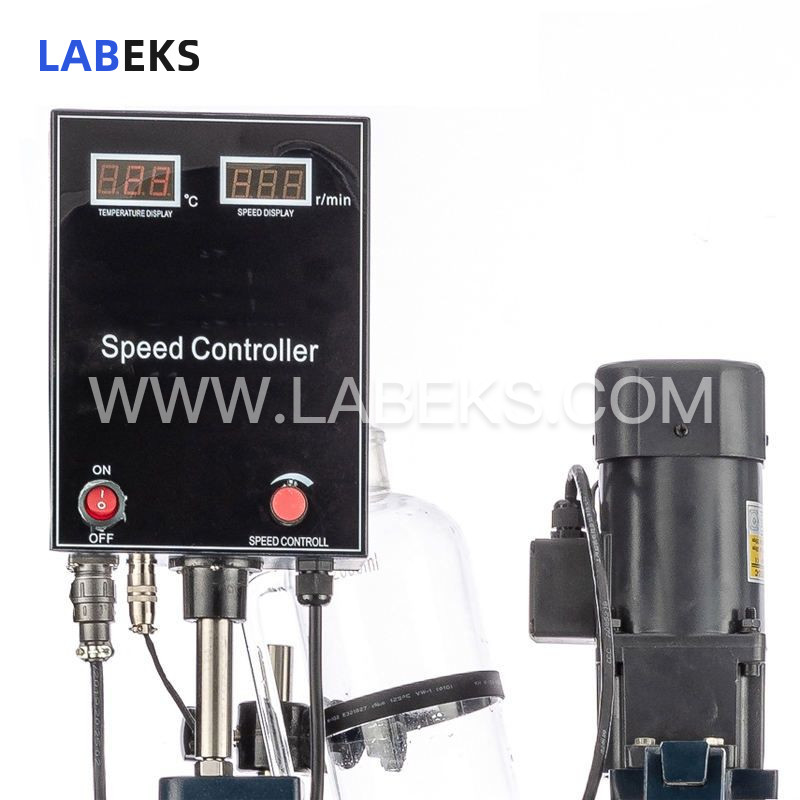

4.Integrated PT100 temperature sensor with LCD display for precise, user-friendly temperature monitoring and control.
5.Frequency-controlled AC induction motor with brushless, spark-free design, ensuring stable, secure, and uninterrupted continuous operation.
6.Rugged stainless steel-reinforced PTFE stirrer with anchored agitator, compatible with a broad spectrum of viscous materials; multi-layer stirring blades are available as an optional upgrade.
7.Robust stainless steel support frame equipped with lockable casters for enhanced mobility and stability; the entire frame and glass vessel are shipped pre-assembled for immediate setup.

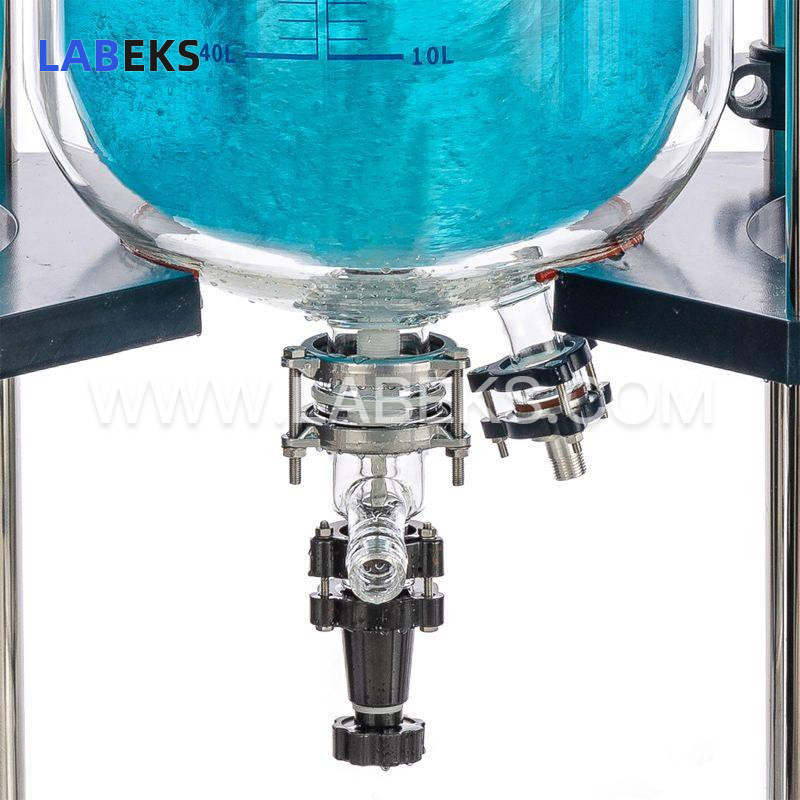

8.Bottom flange discharge port featuring a PTFE valve, securely fastened with aluminum flange components.
specifications
Model | LGR-30L | |
|---|---|---|

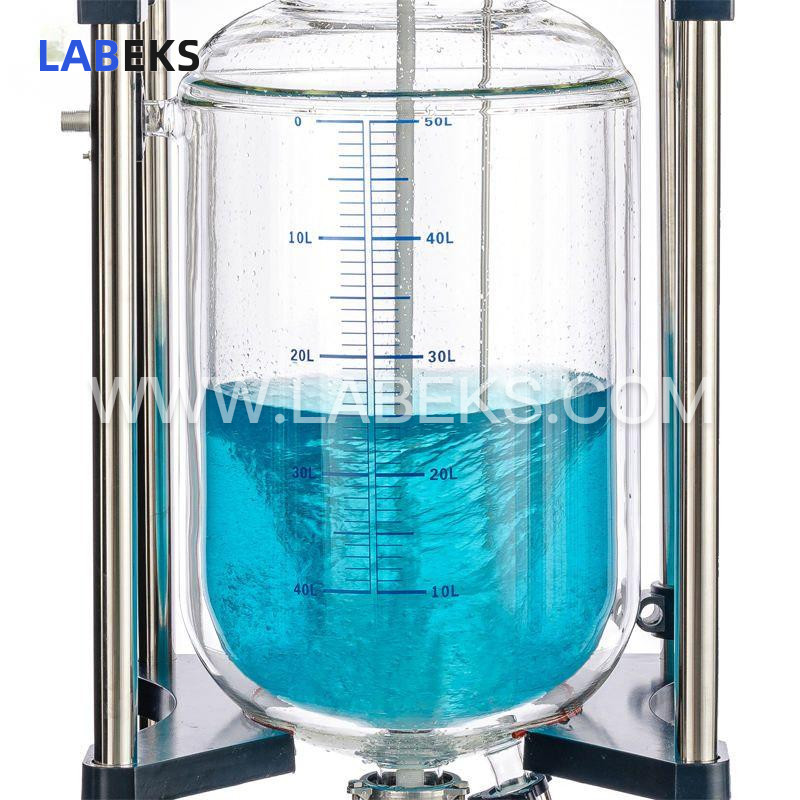

Kettle volume | 30L, innerdiameter 330mm,outer diameter 365mm, inner length 481mm | |
Jacketed volume | about 9L | |
Voltage/frequency | 220V/50HZ | |
Stirring power | 120W1/3 | |
Stirring speed | 0-450r/min | |
Temperatureaccuracy | ±1℃ | |
Vacuum degree | 0.098Mpa | |
Cover diameter | Φ265mm | |

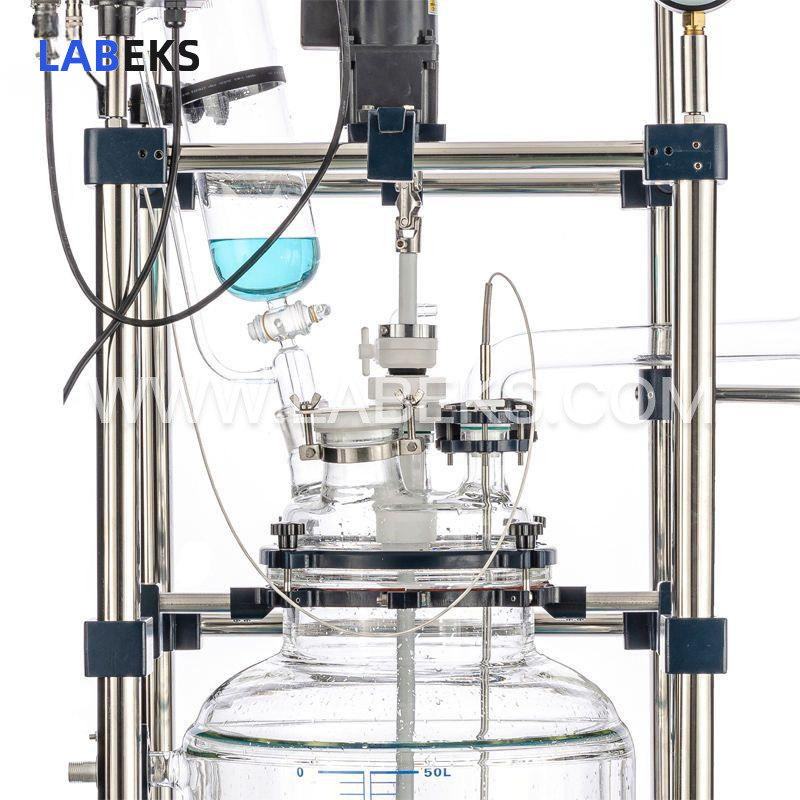

6ports of cover | Stirring port | Φ50mm flangeport |
Condenser port | 50# ball millport | |
Constantpressure funnel port | 40# standardport | |
Relief port | 34# standardport | |
Temperaturemeasure port | Φ45mm flangeport | |
Solid feedingport | Φ80mm flangeport，inner diameter Φ60mm matched with PTFE cover | |
Stirringpaddle | Φ17*1000H(mm),leafing 190mm | |

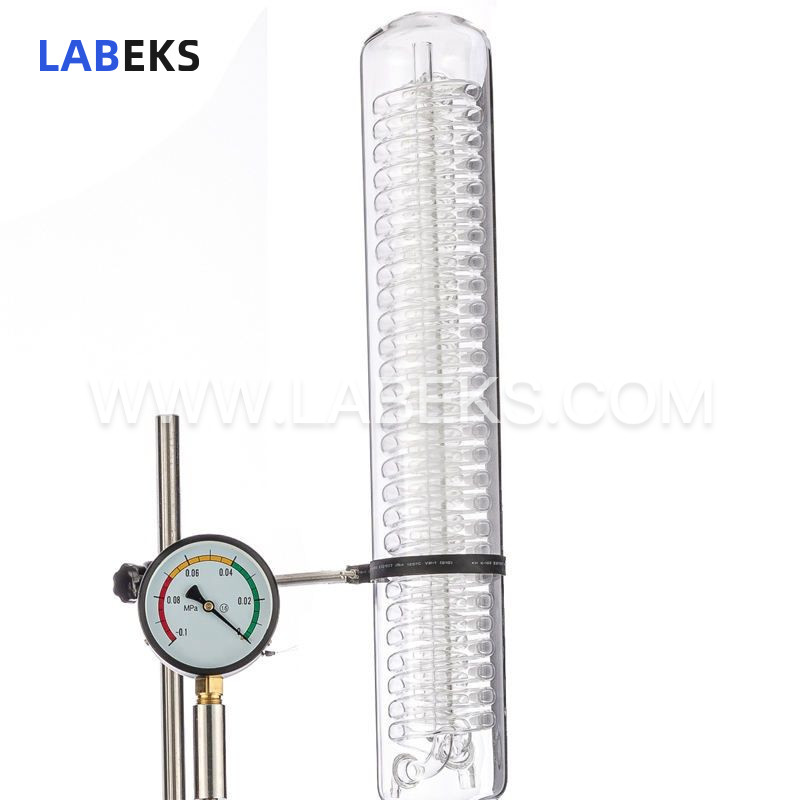

Condenser size | Φ100*700H(mm),down with Φ60mm flange port | |
Condensationarea | 0.4㎡ | |
Reflux elbow | upper with Φ60mmflange port，left with 50# ball mill plug | |
Constant pressurefunnel | 2L, upper with29# standard port matched with glass plug, down with 40# standard plug | |
Relief valve | 34# standardplug valve，vent nozzle (pagoda connector), outerdiameter 12mm | |
In and outcirculation port of the sandwich | Φ45 flange port matchedwith ring flange, 4 points outside the wire adapter | |
Baiting port | Φ75mm flangerport，Φ33mm baiting port，inclineddischarging port, (pagoda connector)Φ34mm，from floor 350mm | |
Vacuum suctionnozzle | padogaconnector,outer diameter 12mm | |
In and out circulationnozzle of condenser coil | padogaconnector,outer diameter 15mm | |
Overalldimension (W*L*H) | 870*560*2170mm | |
Net weight | 61kg | |
Packingdimension | 1590*615*880mm,0.87m³ | |
Packing weight | 97kg | |
