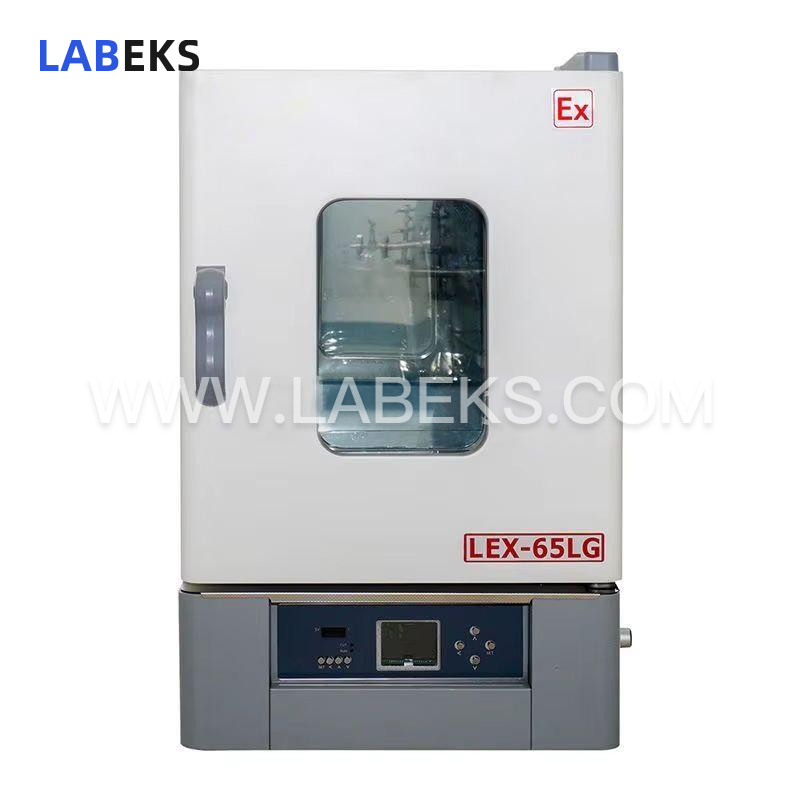

300℃ Explosion-proof Blast Drying Oven with Uniform Temperature for Hazardous Zones
Engineered for flammable and explosive hazardous locations (temperature class T2~T4), this explosion-proof blast drying oven ensures safe, reliable drying operations across petroleum, chemical, military, explosive, medical, pharmaceutical, research and laboratory fields.
- modelLEX-LG series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Constructed with a cold-rolled steel outer shell and a mirror-finish stainless steel working chamber, this oven uses silicon-aluminum fiber as insulation material. A grid-type stainless steel shelf is installed inside the chamber to hold test samples during processing. Its vertical dual-air duct air jacket and turbine centrifugal forced air supply system deliver uniform temperature distribution, complemented by a rational structure and sleek, professional appearance.
features
1. Certified with an explosion-proof rating of Ex d e mb IIB T4 Gb, this oven meets strict safety standards for hazardous operational environments.
2. The cabinet adopts an explosion-proof design, with all equipment and electrical components integrated with explosion-proof technology. An explosion-proof control box provides centralized protection to eliminate unsafe factors including high temperature, static electricity, and sparks.
3. This equipment is primarily composed of a drying chamber, explosion-proof heating system, and explosion-proof electrical control components.
4. The oven’s inner tank is made of mirror-finish stainless steel, while its outer shell uses high-quality cold-rolled steel—offering a sleek appearance and easy cleaning for the inner tank.
5. Heating is powered by an explosion-proof 304 stainless steel heating tube, ensuring safe and efficient thermal output.
6. Its vertical dual-air duct air jacket and centrifugal turbine forced air supply system guarantee uniform temperature distribution throughout the working chamber.
7. The oven supports flexible operational modes including fixed-value operation, timing operation, automatic stop, and scheduled start.
8. An LCD full-screen display presents all operational data clearly, with built-in power failure memory to retain settings during unexpected outages.
9. A pull-out tray shelf allows for quick and convenient sample loading and retrieval.
10. All exposed connecting wires are encased in explosion-proof flexible connecting tubes, which isolate static sparks and prevent temperature leakage to ensure operational safety.
specifications
Model | LEX-65LG | LEX-125LG | LEX-230LG | LEX-625LG |
|---|---|---|---|---|
Mode | Dual duct forcedconvection | Homogeneous airsupply in the rear air duct | Double air ductrotary air supply | |
Operating Temperaturerange | RT+10-300℃ | |||
Temperatureresolution | 0.1°C | |||
Temperaturefluctuation | ±1℃ | |||
Temperaturedistribution accuracy | ±2.5% | |||
Interior | Mirror stainlesssteel plate | |||
Exterior | Cold-rolledsteel plate with chemical-resistant coating on the surface | |||
Insulationmaterial | Aluminumsilicate fiber | |||
Heater | Stainless steelheating tube (explosion-proof qualification) | |||
Power rating | 1.6kw | 2.3kw | 3kw | 5.75kw |
Exhaust hole | Inner diameter28mm*1, top | Inner diameter28mm*2, top | ||
Temp controlmethod | LCD display dualcolumn PID control | |||
Tem settingmethod | Touch theexplosion-proof four-button setting | |||
Temprepresentation | Measuredtemperature display: LCD upper display; set temperature display; LCD lowerdisplay | |||
Timer | 0-9999 minutes(hours), timing function can be selected (no, constant temperature timing,running timing | |||
Operation function | Fixed valueoperation, timing operation, automatic stop, scheduled start. | |||
Externalconnection line protection | Explosion-proofflexible connecting pipe set (explosion-proof qualification) | |||
Sensor | Explosion-proofarmored PT100 (explosion-proof qualification) | |||
Additionalfeatures | Deviationcorrection, menu key lock, power failure memory, overheating preventer | |||
Explosion-proofgrade | Ex de mb IIB T4Gb | |||
Inner size(W*L*H)(mm) | 400*360*450 | 500*450*550 | 600*500*750 | 660*760*1250 |
Outer dimensions(mm) | 535*490*820 | 636*580*930 | 735*625*1220 | 900*960*1840 |
Packing size(mm) | 970*620*960 | 760*700*1060 | 898*814*1347 | 1051*1060*1949 |
Internal volume | 65L | 125L | 230L | 625L |
Shelf load | 15kg | |||
Shelf number | 9 | 13 | 17 | 7 |
Shelf space | 35mm | 150mm | ||
Power supply(50/60Hz) rated current | AC220/7.2A | AC220/10.5A | AC220/13.6A | AC380/8.7A |
Net weight/grossweight (kg) | 43/49 | 60/66 | 84/100 | 113/137 |
Partition | 2 pieces | |||
Partition rack | 4 pieces | |||
Optional | Explosion-proofgrille, explosion-proof hinge, explosion-proof pressure relief door,explosion-proof seven-inch touch screen instrument (with curve and programfunction), explosion-proof mouse | |||
