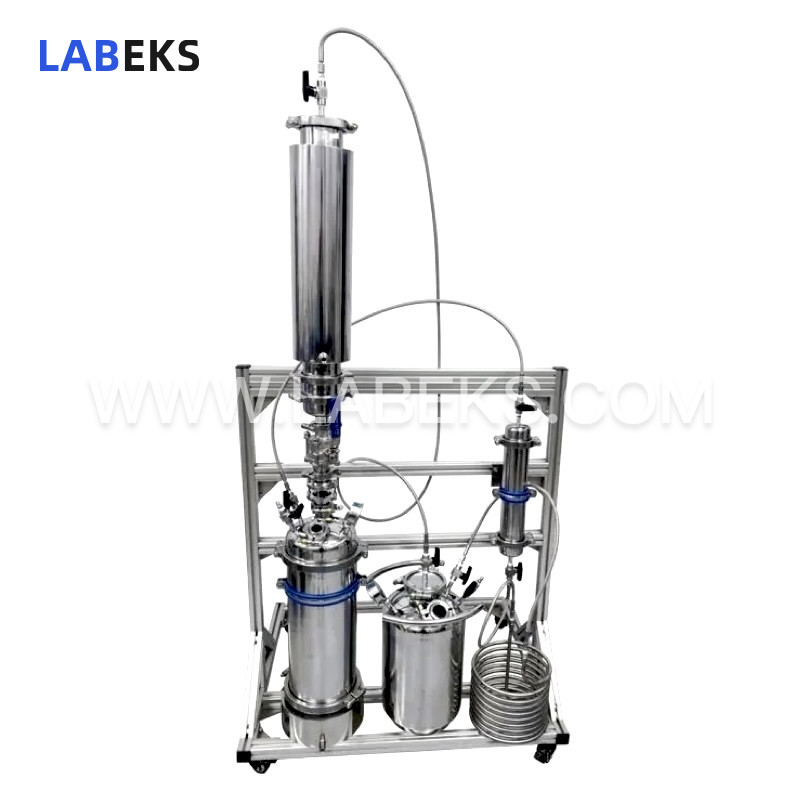

2LB BHO Closed Loop Dewax Extractor for Cannabis & Botanical Extraction with Solvent Recovery
Designed for cannabis and botanical processing, the closed loop dewax extractor operates in a fully sealed, vacuumed system to eliminate solvent air exposure, enable efficient solvent recovery, and deliver purified botanical oils via passive temperature-regulated pressure migration.
- modelLCLE-2
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Closed loop dewax extractors rank among the most widely used cannabis extraction systems globally. Recognized for their environmental sustainability and eco-friendliness, these systems leverage efficient solvent recovery to minimize waste and optimize extraction outcomes.
Operating Sequence: Load raw materials into the material column, where they are immersed in ethanol or alternative solvents to facilitate target compound extraction. The resulting mixture is transferred to a subsequent column for separation; solvents are diverted to a recovery system for repeated use, while purified extract is collected in the bottom reservoir. This solvent recycling capability delivers significant cost savings and reduces environmental impact.
features
1. Its hermetic, highly controlled design minimizes solvent evaporation and leakage risks, significantly enhancing operator safety during operation.
2. The fully closed-loop system encapsulates all solvents and reaction compounds throughout the entire extraction process, eliminating volatilization and external contamination.
3. Integrated solvent recovery system enables solvent recycling and reuse, reducing operational costs and waste generation.
4. Permits precise regulation of temperature, pressure and other key operating parameters to ensure extraction accuracy and repeatability.
5. Scalable design supports operations ranging from small laboratory batches to large-scale industrial production, with customizable system size and capacity as required.
6. Widely applicable in pharmaceutical manufacturing, natural product extraction, chemical processing, and food science sectors.
specifications
Model | LCLE-2 |
|---|---|
Capacity | 2LB (customizable) |
Extractor tank | 10″x10″ recovery tank 10″x10″ collection tank withjacketed splatter platter |
Splatter platter | 10″x4″ |
Max pressure | 145PSI |
Material column size | 3″x36″ |
Filter dryer size | 3″X18″ |
Chilling coil | 10″x10″ |
Body Material | 304 Stainless Steel |
Operating Temperature | -42℃~72℃ |
Surface treatment | Mirror Polished |
Connection method | High pressure clamp |
