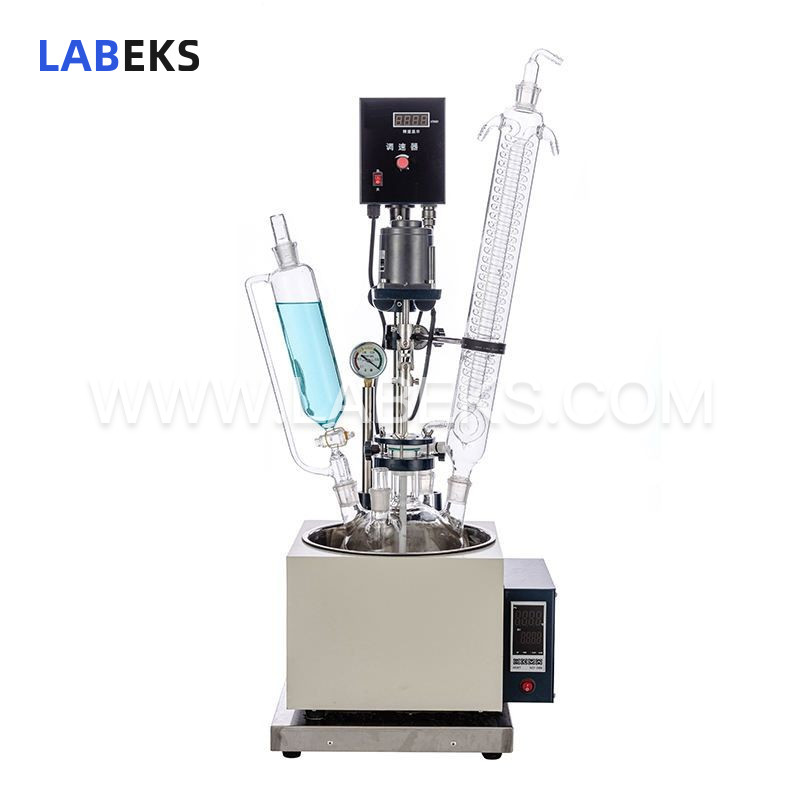

2L Single Layer Glass Reactor with High Vacuum Sealing for Chemical & Biopharmaceutical Synthesis
Integrating vacuum operation, distillation, reflux, stirring, and oil/water heating functions, the single layer glass reactor enables precise constant-temperature biochemical and synthesis reactions in a fully closed system, serving synthetic chemistry, biopharmaceuticals, and new material development.
- modelLGR-2F
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This single layer glass reactor features an internal chamber for holding and stirring reaction solvents, and can be heated via computer-controlled oil bath or electric heating system. It operates effectively under both atmospheric pressure and vacuum conditions, enabling precise control of reaction solution reflux and distillation. As an essential tool for modern synthetic chemistry, biopharmaceutical research, and new material development, it is suitable for both laboratory preparation experiments and small-scale production applications.
features
PTFE (ceramic) mechanical seal, featuring proprietary technology, delivers industry-leading vacuum performance among comparable equipment.

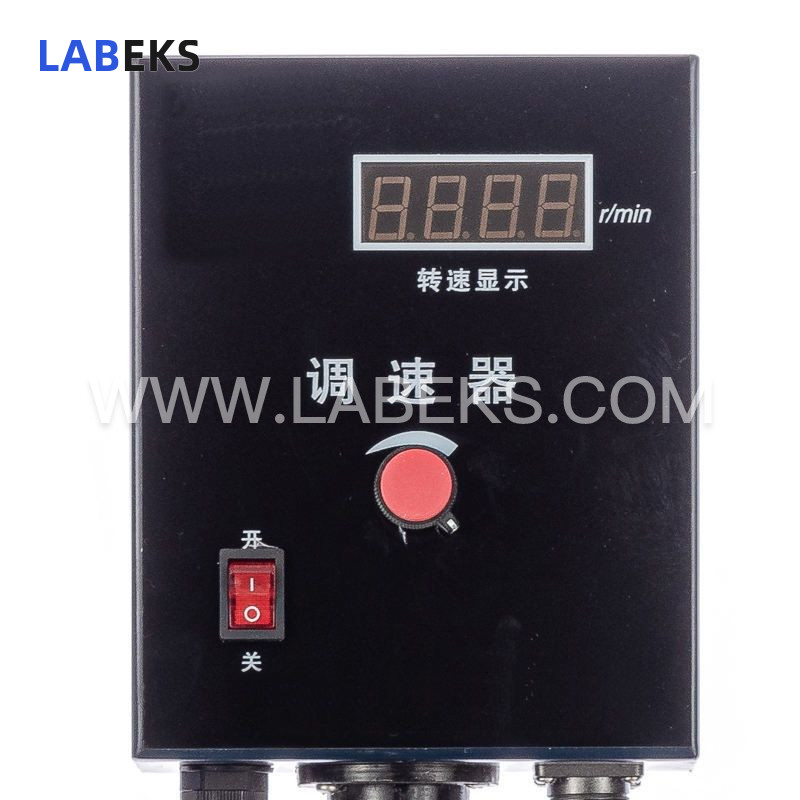

Variable frequency-controlled AC induction motor with digital constant speed display, brushless and spark-free for safe, stable, and continuous operation.
Constructed with GG3.3 high borosilicate glass, the reactor boasts excellent chemical and physical stability; its large-chamber design enables easy manual cleaning.
Computer-regulated thermostatic oil bath with intelligent PID control ensures accurate, user-friendly temperature management.
Full stainless steel frame structure—including tee and four-way valve connectors—offers a compact, rigid build that prevents shaking during stirring.
Dead-zone-free PTFE bottom valve allows for easy discharge of both solid and liquid materials.
Scientifically designed integral structure with a streamlined appearance for intuitive, easy operation.
Brake-equipped casters enable convenient, secure mobility of the unit.
Explosion-proof models are available for hazardous environments.
(Custom configurations including cooling coils and explosion-proof devices are available upon customer request.)
specifications
Model | LGR-2F | |
|---|---|---|
Kettle volume | 2L spherical | |
Voltage/Frequency | 220V/50HZ | |
Stirring power | 40W | |
Heating power | 1.5KW | |
Stirring speed | 0-800rpm/min | |
Bath temperaturerange | room temperatureto 180℃ | |
Temperatureaccuracy | ±1℃ | |
Vacuum degree | 0.098Mpa | |
Cover size | Φ166mm | |
5 ports | Stirring port | Φ50mm flangeport |
Condenser port | 24# standardport | |
Constantpressure funnel port | 24# standardport | |
Relief port | 19# standardport | |
Temperaturemeasuring port | 19# standardport | |
Stirringpaddle | Φ10*400H(mm)，leafing 80mm | |

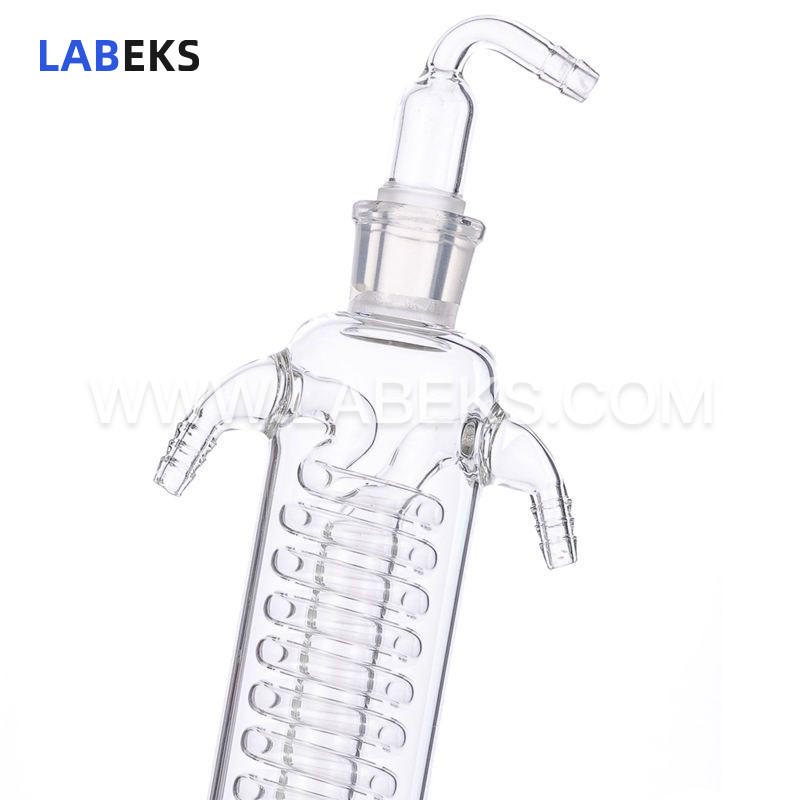

Condenser size | Φ40*350H(mm)，upper with 24# standard port，upper with 24# standard plug | |

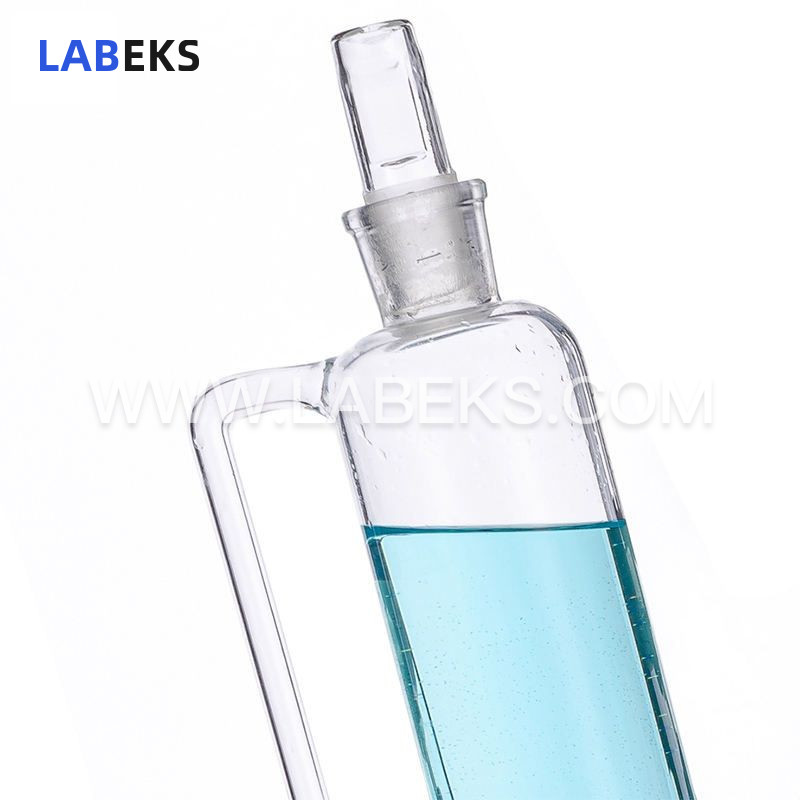

Constantpressure funnel | 250ml, upperwith 24# standard port match wit glass plug, upper with 24# standard plug | |
Relief valve | 19# standardplug valve，vent nozzle(padoga connector),outerdiameter 10mm | |
Temperaturemeasuring port | 19#standard plug glass measuring tube | |
Collectingdevice | 2 adaptor，24# standard port，500 sphericcollecting bottle | |
Vacuum suctionnozzle | 24# glassexhaustor，suction nozzle (padoga connector),outerdiameter 10mm | |
In and outcirculation nozzle of condenser coil | padogaconnector,outer diameter 10mm | |
Pot braverydimension | Φ245*140H(mm) | |
Overalldimension (W*L*H) | (400-700)*330*930mm | |
Net weight | 18kg | |
Packingdimension | 1000*460*510mm,0.23m³ | |
Packing weight | 33kg | |
