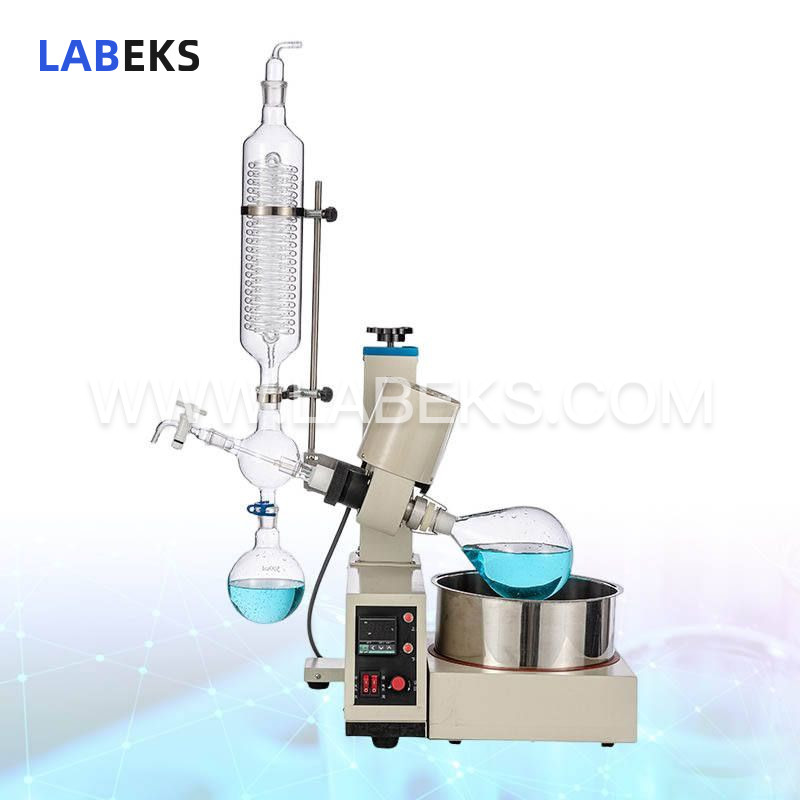

2L Rotary Evaporator for Pharma & Chemical Labs with Precision Temp Control
Designed for chemical, pharmaceutical, academic and research laboratories, the rotary evaporator enables efficient, gentle solvent removal from samples, acting as a critical tool for extraction and concentration in experimental and production workflows.
- modelLRE-5299
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As an essential foundational instrument for the chemical, pharmaceutical, higher education and scientific research sectors, this 2L rotary evaporator serves as the primary solution for extraction and concentration processes in both experimental and manufacturing settings.
features
9. The main unit supports electric lifting via dedicated up/down buttons, with an optional manual lifting function using a hand wheel for flexible operation.
10. Dual fuse safety protection is provided for both rotation and heating systems to prevent overcurrent damage.
7. Features electronic stepless speed adjustment, with precise fine-tuning achievable via a dedicated control knob.

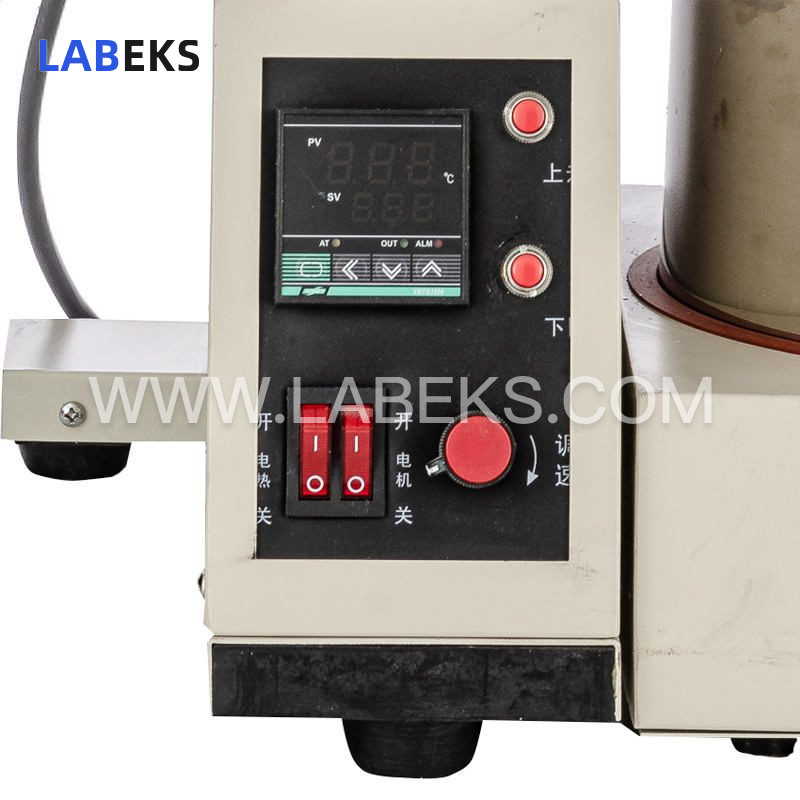

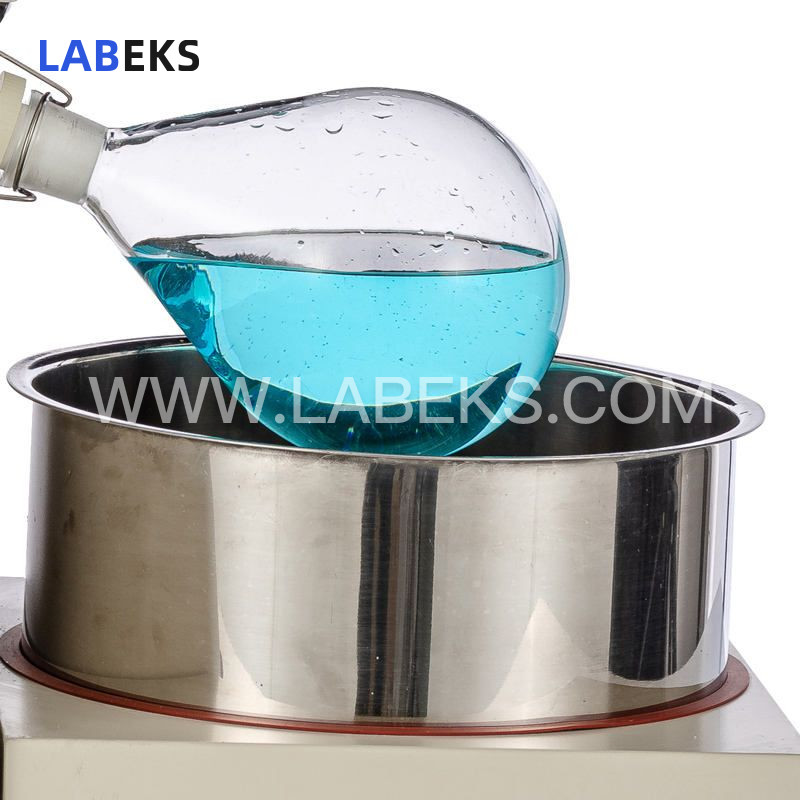

8. The constant temperature bath comes with a digital temperature display, paired with a Cu50 sensor and stainless steel probe mounted at the pot bottom for accurate temperature detection.
1. All material-contacting components are constructed from high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene, offering excellent chemical stability and resistance to material reactivity.
2. The main frame features a cold-rolled steel plate with anti-corrosion coating combined with aluminum alloy, while the heating pot is crafted from stainless steel.
3. The sealing system integrates a PTFE rotating shaft and fluororubber gasket to ensure reliable airtight performance.
4. The piston-style feed valve is fitted with a polytetrafluoroethylene extension tube, enabling continuous material feeding to the evaporation flask under vacuum conditions.

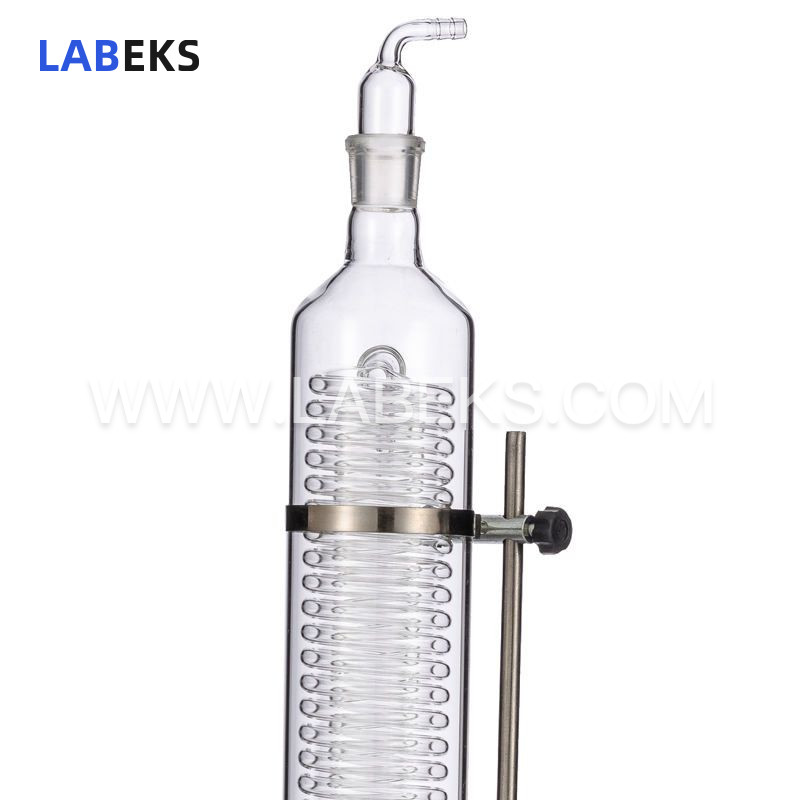

5. Equipped with a vertical double-layer serpentine coil glass condenser for efficient solvent condensation.
6. Rotation and heating functions are controlled via independent power switches, with dual-toggle tilt buttons for ON/OFF operation.
specifications
Model | LRE-5299 |
|---|---|
Voltage/Frequency | 220V/50HZ |
Whole power | 1045W |
Rotary power | 30W |
Lifting power | 15W1/15 (Decelerationboost) |
Heating power | 1000W |
Vacuum degree | 0.0098Mpa |
Rotary flask volume | Eggplant shape 1L,Φ131mm/24# standard port |

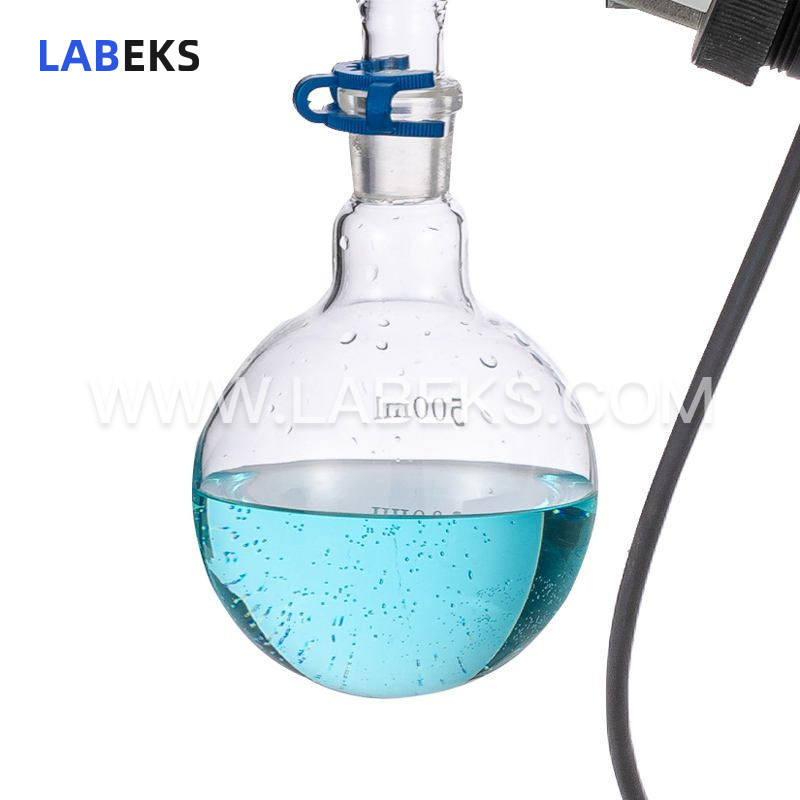

Receiving flask volume | Round shape 0.5L,Φ105mm/24#standard port |
Rotary speed | 0-120rpm/min |
Temp.cotrolling range | room temperature -99℃ |
Temp. accuracy | ±1℃ |
Hosting lifting distance | 150mm |
Condenser size | Φ85*450H(mm)Upper with 29#standard port and equipped with glass exhaustor, down with 29#standard plug |
Condensation area | 0.17㎡ |
Four-way bottle diameter | Upper with 29# standard port, down with 24# standard plug,left with 19# standard port, right with 24# standard plug |
Charging valve | 19# standard plug valve, feed nozzle(pagoda-shapeconnectors),outer diameter 10mm |
Vacuum suction nozzle | 29# standard plug valve, vacuum nozzle(pagoda-shapeconnectors), outer diameter 10mm |
Condensing coil in and out circuation nozzle | Pagoda-shape connectors, outer diameter 12mm |
Pot bravery size | Φ245*140H(mm) about 6.6L，5.5kg |
Overall dimensions (W*L*H) | 660*440*(880-1030)mm |
Net weight | 16.5kg |
Packing dimensions | 600*460*470mm, 0.13m³ |
Packing weight | 20kg |
