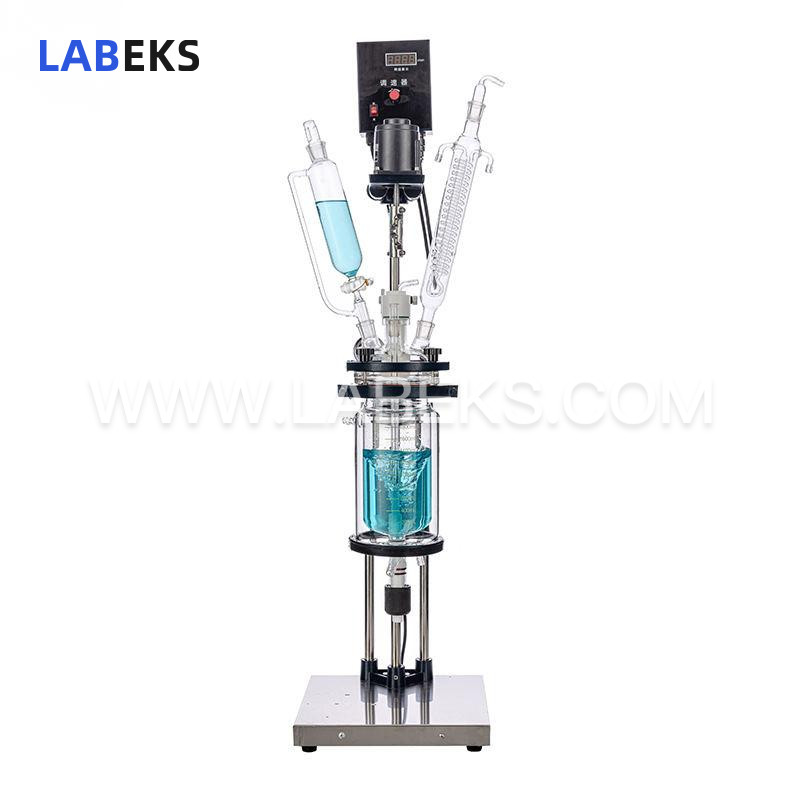

2L Jacketed Glass Reactor for Laboratory Chemical Synthesis with Vacuum Resistance
Ideal for controlled temperature and vacuum-driven lab processes, this jacketed glass reactor features high borosilicate glass vessels with a bottom valve, a port-equipped glass dome, PTFE-coated stirrers with mechanical seals, adjustable-speed stirrer drives, plus CE and ISO certifications.
- modelLGR-2L
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Jacketed glass reaction vessels are engineered for synthetic reactions of various materials under controlled temperature and vacuum conditions. Functioning as an all-in-one solution for extraction, refinement, distillation, and homogenization, these reactors incorporate an inner vessel with one or two jackets that utilize temperature differentials from a chiller to regulate internal environments. Operable under vacuum, they are optimized for air-sensitive applications. Constructed from glass, these reactors are available in volumes spanning 1L to 200L.
features
Complete glassware system crafted from GG3.3 borosilicate glass, offering exceptional resistance to heat, cold, and corrosion.
Solvent-resistant PTFE seals deliver long-lasting durability and reliable operation, maintaining a vacuum level of -0.098Mpa.
Broad operating temperature range: -60°C to 250°C.
Integrated PT100 temperature sensor with LCD display enables precise, user-friendly temperature monitoring.

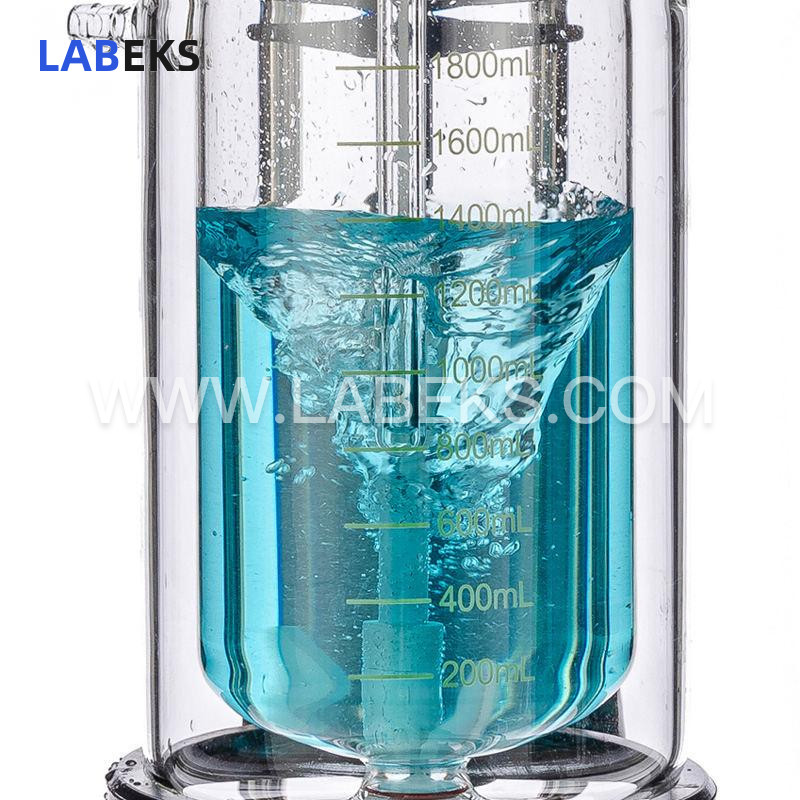

Stainless steel-reinforced PTFE stirrer with anchor agitator, ideal for handling various viscous materials; multi-layer stirring blades are available as an option.

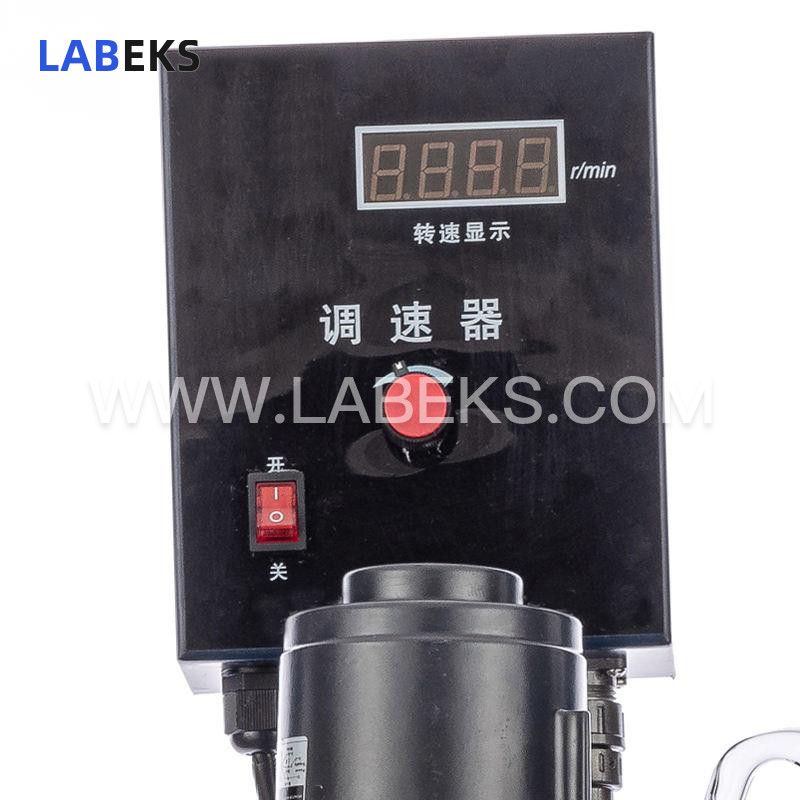

Frequency-controlled AC induction motor provides constant, brushless, spark-free operation for safe, stable, and continuous performance.
Robust stainless steel support frame with lockable casters for enhanced mobility and stability; the entire frame and glass vessel are shipped pre-assembled.

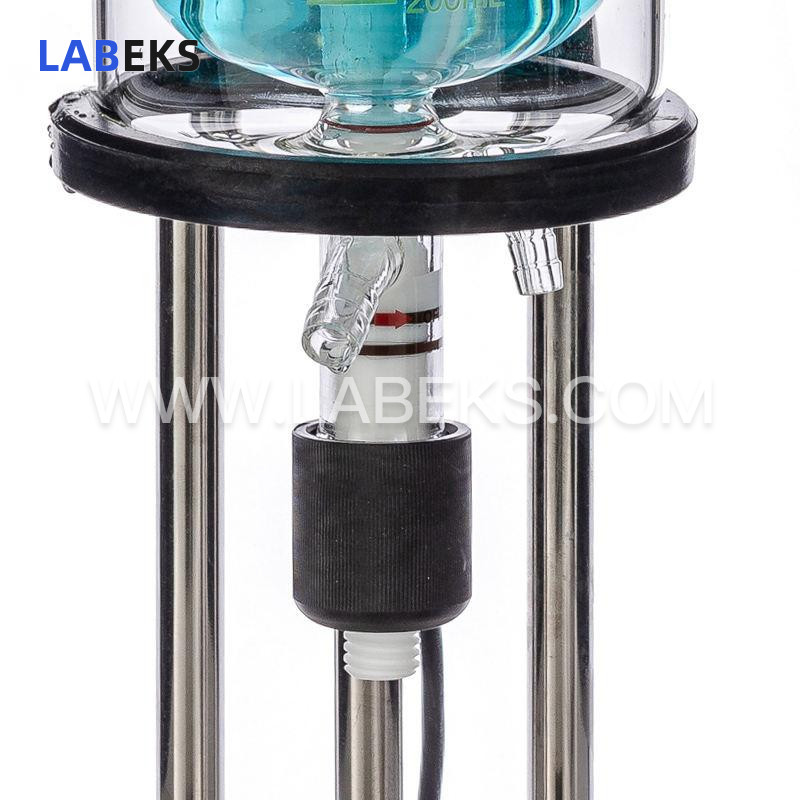

Bottom flange discharge port fitted with a PTFE valve, secured by an aluminum flange.
specifications
Model | LGR-2L | |
|---|---|---|
Kettle volume | 2L，inner diameter 120mm,outer diameter 150mm,inner length230mm | |
Jacketed volume | about 250ml | |
Voltage/frequency | 220V/50HZ | |
Stirring power | 40W | |
Stirring speed | 0-1100r/min | |
Temperaturerange vessel can bear | -80℃to 250℃ | |
Temperatureaccuracy | ±1℃ | |
Vacuum degree | 0.098Mpa | |
Cover diameter | Φ150mm | |

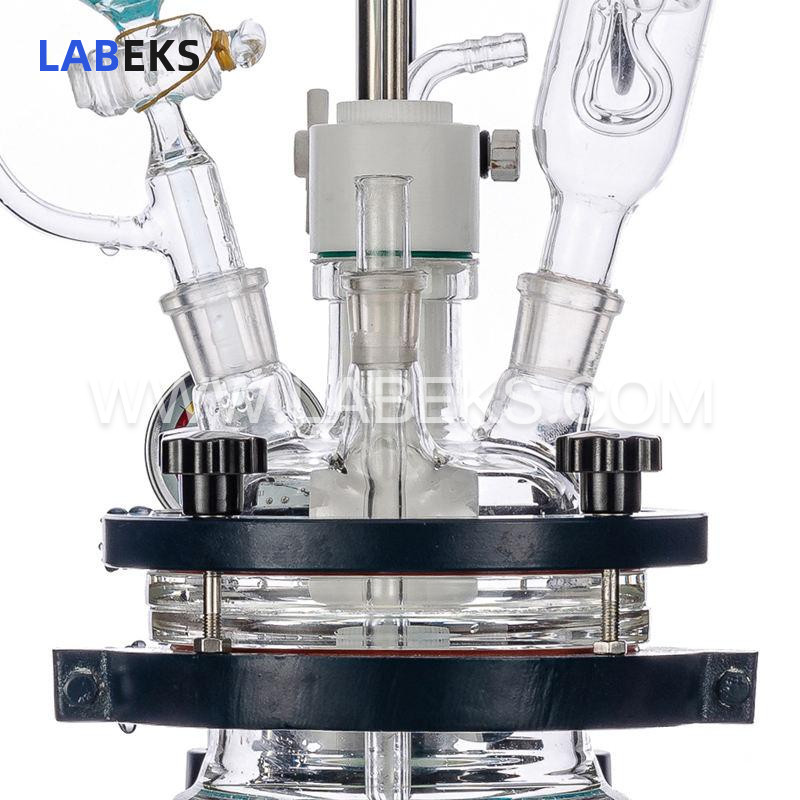

5port of thecover | Stirring port | Φ50mm flangeport |
Condenser port | 24# standardport | |
Constantpressure funnel port | 24# standardport | |
Relief port | 19# standardport | |
Temperaturemeasure port | 19# standardport | |
Stirringpaddle | Φ10*500H(mm),leafing 90mm | |

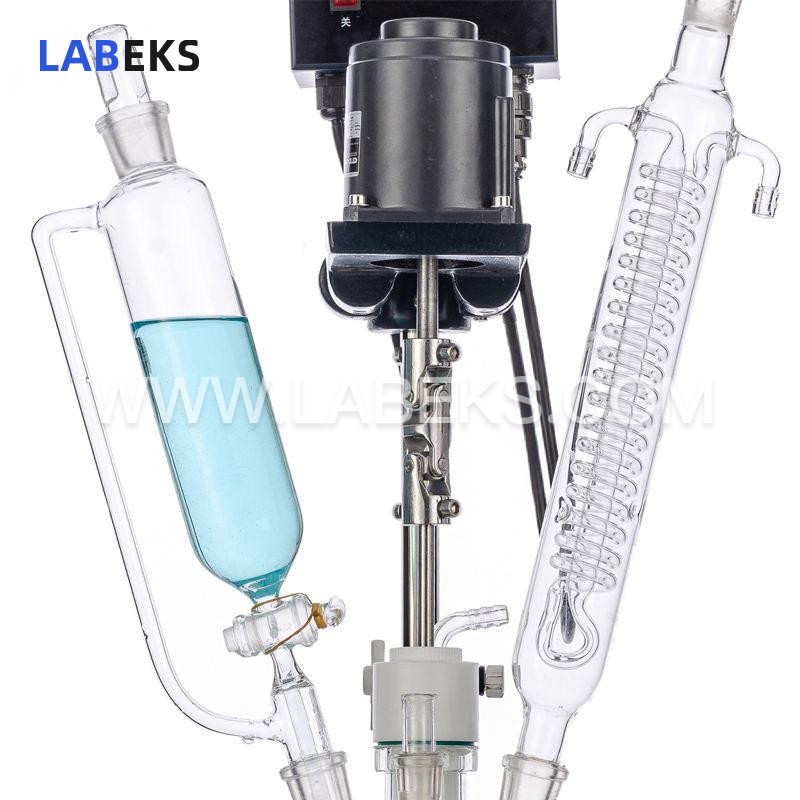

Condenser size | Φ40*350H(mm),upper with 24# standard port, down with 24#standard plug | |
Constantpressure funnel | 250ml,upper with 24# standard port matched withglass plug, down with 24# standard plug | |
Relief valve | 19# standardplug valve, vent nozzle（padogaconnector),outer diameter 10mm | |
Temperaturemeasuring port | 19# standardplug, glass temperature measuing port | |
In and outcirculation port of the sandwich | Φ35 flange portmatched with ring flange, adapter pagoda connector ,outer diameter 15mm | |
Baiting port | Screw portmatched with PTFE baiting valve, Φ18mm baiting port, inclined dischargingnozzle (pagoda connector), Φ12mm,from floor 350mm | |
Vacuum suctionnozzle | 24# glassexhaustor，suction nozzle(padoga connector),outerdiameter 10mm | |
In and outcirculation nozzle of condenser coil | padogaconnector,outer diameter 10mm | |
Overalldimension (W*L*H) | 330*350*1300mm | |
Net weight | 18.5kg | |
Packingdimension | 1200*400*450mm,0.22m³ | |
Packing weight | 32.5kg | |
