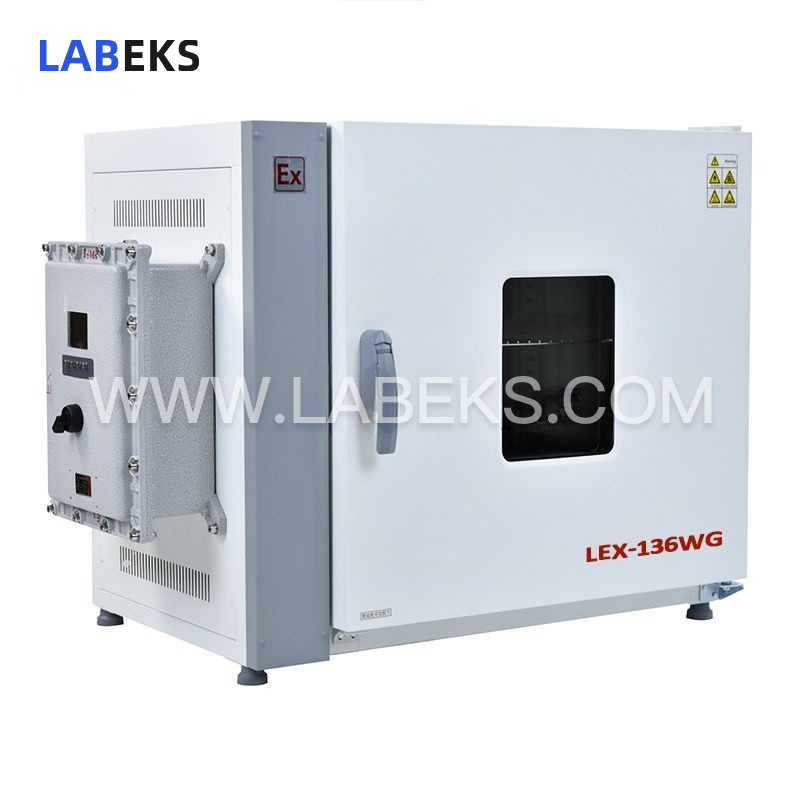

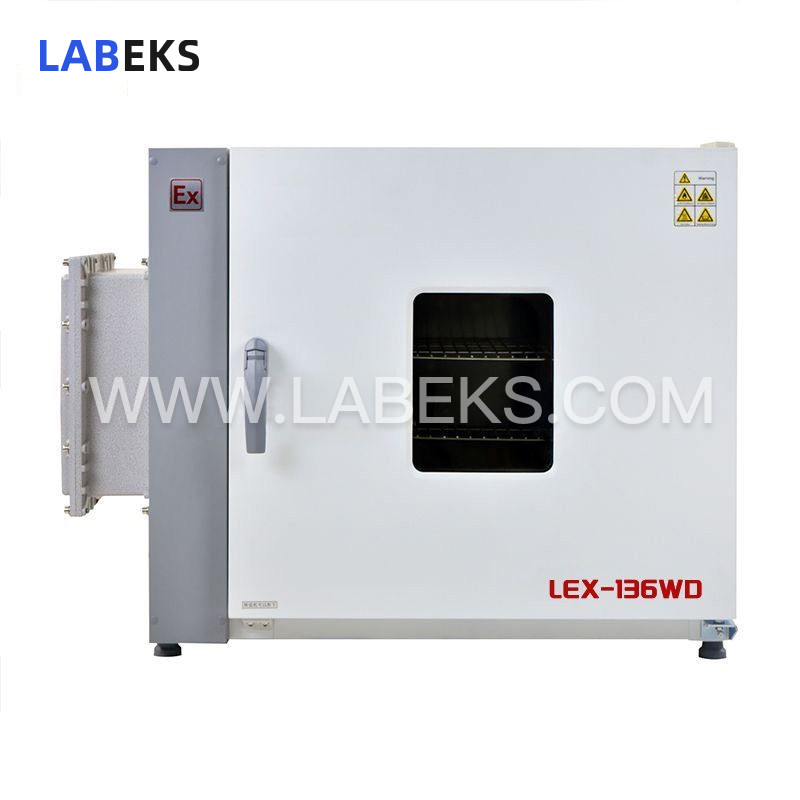

250℃ Explosion Proof Electric Heating Drying Oven for Petrochemical & Military Applications
Designed for use in petrochemical, chemical, military, explosive, medical, pharmaceutical, research and laboratory settings, this explosion-proof electric heating drying oven safely dries powdery and light-weight materials sensitive to air currents.
- modelLEX-43WD/LEX-71WD/LEX-136WD/LEW-225WD
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Engineered for deployment in petrochemical, chemical, military, explosive handling, medical, pharmaceutical, research and laboratory environments
Ideal for drying powdery and lightweight materials that are susceptible to damage from air circulation
features
1. Explosion-proof rating: Ex d e mb IIB T4 Gb

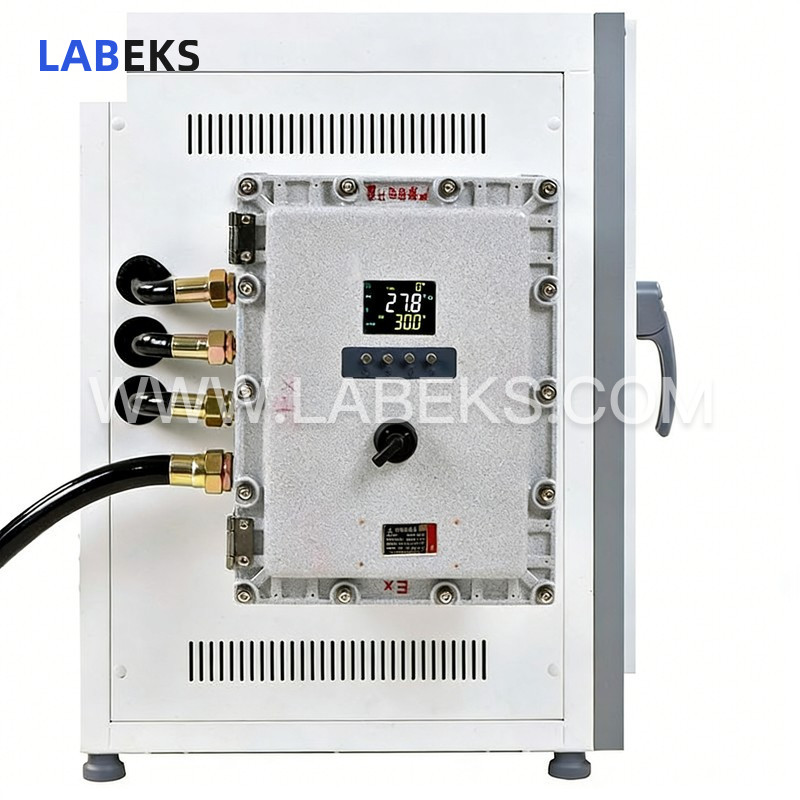

2. The cabinet adopts an explosion-proof design, with all equipment and electrical components utilizing full explosion-proof technology. An explosion-proof control box delivers centralized protection, preventing leakage of unsafe factors including high temperature, static electricity, and sparks.
3. This equipment is primarily composed of a drying chamber, explosion-proof heating system, and explosion-proof electrical control modules.
4. Heating is provided by explosion-proof 304 stainless steel heating tubes.
5. Valley-type convection system ensures uniform temperature distribution across the entire chamber.

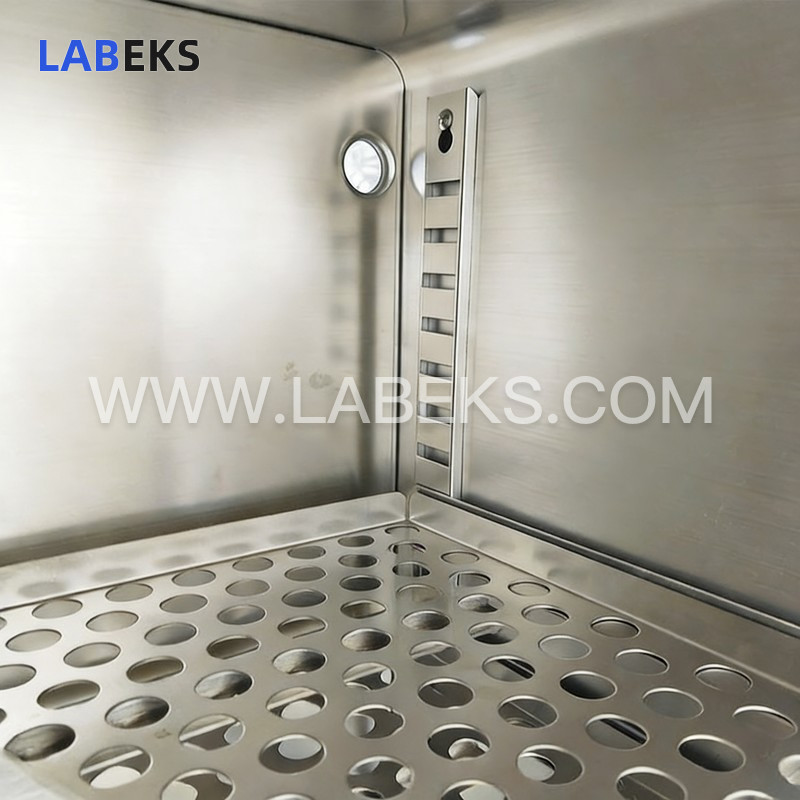

6. The chamber’s inner tank is crafted from mirror-polished stainless steel for easy cleaning, while the outer shell uses high-quality steel plate for an elegant, durable appearance.
7. Full-screen LCD operation display showcases multiple data points, with built-in power failure memory and power failure compensation functions.
8. User-friendly operation supports fixed-value operation, timed operation, automatic shutoff, and scheduled start modes.

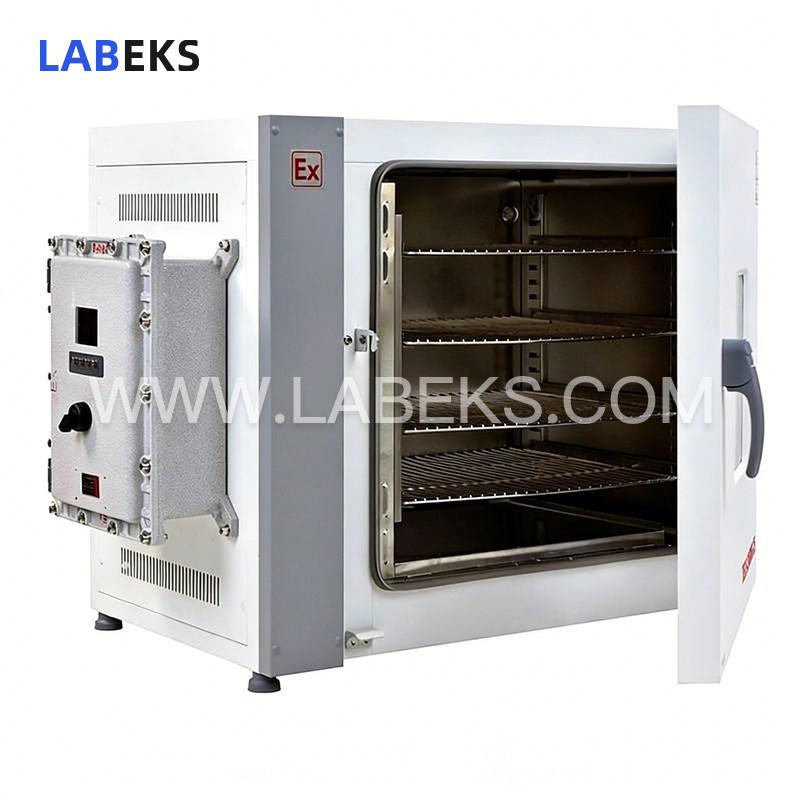

9. Pull-out tray shelves enable convenient and rapid sample retrieval.

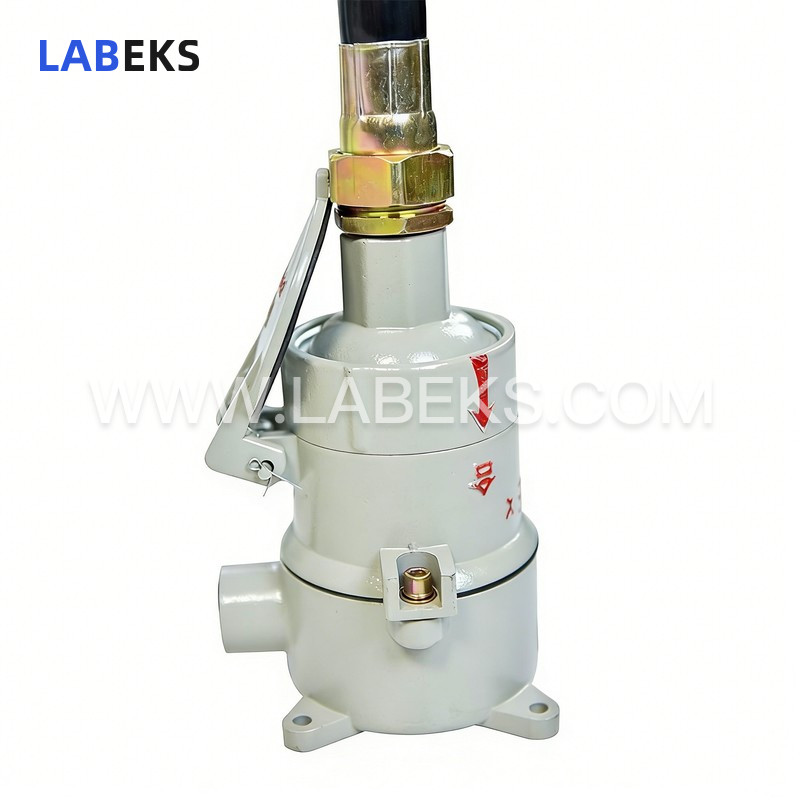

10. All exposed connecting wires are housed in explosion-proof flexible conduit sets to isolate static sparks and temperature leakage, guaranteeing operational safety.
specifications
Model | LEX-43WD | LEX-71WD | LEX-136WD | LEX-225WD |
|---|---|---|---|---|
Method | Valley naturalconvection | |||
Operatingtemperature range | RT+10-250℃ | |||
Temperatureresolution | 0.1℃ | |||
Temperature fluctuation | ±1℃ | |||
Temperaturedistribution accuracy | ±3.5% | |||
InteriorMaterial | Stainless steelplate | |||
ExteriorMaterial | Cold-rolledsteel plate, with chemical-resistant coating on the surface | |||
Insulationmaterial | Aluminumsilicate fiber | |||
Heater | Stainless steelheating tube (explosion-proof qualification) | |||
Rated power | 1.2KW | 1.6KW | 2.0KW | 4.0KW |
Exhaust vent | Inner diameter28mm*2, top test hole | |||
Temperaturecontrol mode | Liquid crystaldisplay dual column PID control | |||
Temperaturesetting mode | Touch theexplosion-proof four-button setting | |||
Temperaturerepresentation | Measuredtemperature display: LCD upper display; Set temperaturedisplay: LCD lower display | |||
Timer | 0-9999 minutes(hours), timing function can be selected (no, constant temperature timing,running timing | |||
Running function | Fixed valueoperation, timing operation, automatic stop | |||
Program mode | Optional | |||
Externalconnection line protection | Explosion-proofarmored PT100 (explosion-proof qualification) | |||
Sensor | Adoptexplosion-proof flexible connecting pipe set (explosion-proof qualification) | |||
Additionalfeatures | Deviationcorrection, menu key lock, power failure memory, overheating preventer | |||
Explosion-proofgrade | Ex d e mb IIB T4Gb | |||
Innersize (mm) | 400*350*350 | 500*350*450 | 600*450*550 | 600*500*750 |
Outerdimensions (mm) | 785*530*555 | 855*530*655 | 985*625*755 | 1015*685*995 |
Outerpacking size (mm) | 950*642*711 | 1040*642*811 | 1180*745*901 | 1220*802*1156 |
Internalvolume | 43L | 71L | 136L | 225L |
Shelfload | 15kg | |||
Shelflayers | 9floors | 13floors | 17floors | 9floors |
Shelfspacing | 25mm | |||
Powersupply (50/60Hz) rated current | AC220V/5.5A | AC220V/7.3A | AC220V/9.1A | AC220V/18.2A |
Netweight/gross weight kg | 34/53 | 46/70 | 66/92 | 81/110 |
Partition | 2pieces | |||
Partitionrack | 4pieces | |||
Optional | Explosion-proofgrille, explosion-proof hinge, explosion-proof pressure relief door,explosion-proof seven-inch touch screen instrument (with curve and programfunction), explosion-proof mouse | |||
