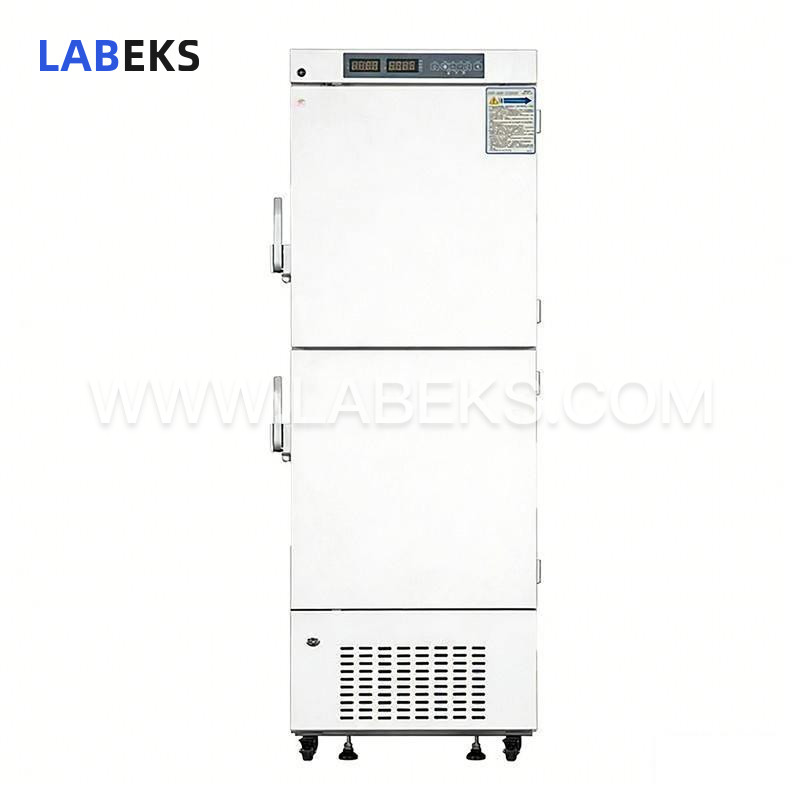

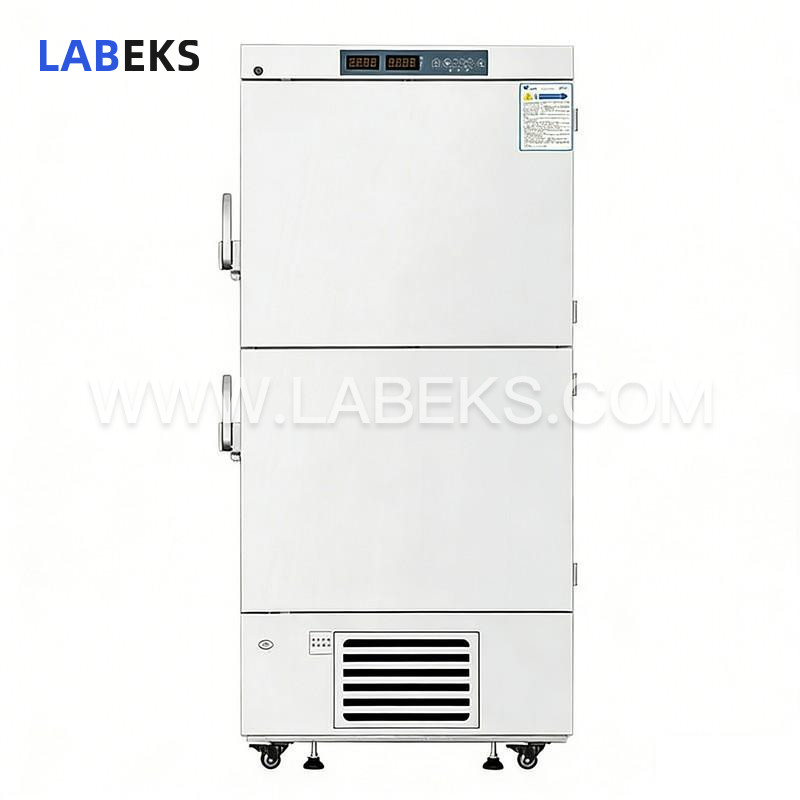

-25℃ Medical Deep Freezer for Vaccine & Plasma Storage (358L/528L)
Engineered to preserve vaccines, blood plasma, and other biological materials reliably, the -25℃ medical deep freezer from LABEKS (manufactured in China, available in 358L/528L capacities) is ideal for research institutions, clinical facilities, life science labs, electronic testing sites, and healthcare markets.
- modelLDF-25V Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Designed specifically for the secure storage of vaccines, blood plasma, and a wide range of biological materials, this -25℃ medical deep freezer is deployed across research institutions, clinical sites, life science facilities, electronic testing centers, and healthcare markets. Its internal inner door minimizes cold air leakage, ensuring enhanced internal temperature stability.
It is also suitable for scientific research, biomedical applications, electronics manufacturing, chemical processing, machining operations, and offshore fishing industries.
features
1. The top and bottom chambers feature 2 independent refrigeration circuits, enabling separate temperature regulation and defrosting for each compartment. This allows for easy sample transfer during defrosting without affecting the other chamber’s temperature.

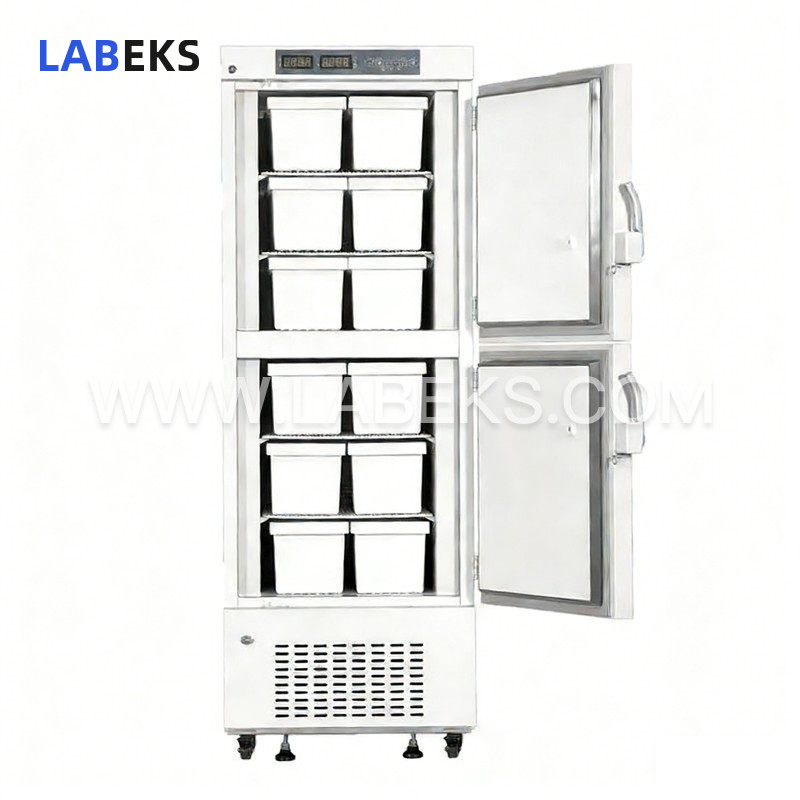

2. Fitted with separate inner and outer doors, the freezer suppresses cold air leakage during door operation, while manual defrosting functionality prevents temperature fluctuations that could compromise sample integrity.
3. The insulated door with a high-performance gasket ensures optimal sample protection and temperature uniformity. A ‘Hot-line’ door frame and gasket design prevents ice accumulation, reducing ongoing maintenance requirements.
4. A front-mounted display and control panel is positioned at an ergonomically convenient height, enabling effortless access for operation and monitoring.
5. A large-capacity condenser delivers superior heat dissipation performance, supporting stable operation within specified ambient temperature ranges.
specifications
Model | LDF-25V358 | LDF-25V528 |
|---|---|---|
Shelf/drawer | Shelves/4 drawers/12 | Shelves/4 drawers/18 |
Cooling method | Direct cooling | Direct cooling |
Defrost | Manual | Manual |
Refrigerant | R290 | R290 |
Power consumption(kWh/24h) | 3.2 | 3.4 |
Noise(db) | 49 | 55 |
Ambient temperature(℃) | 10℃~32℃ | 10℃~32℃ |
Temperature range(℃) | -10°~-25°C | -10°~-25°C |
Compressor brand/QTY | CUBIGEL/2 | MEIZHI/2 |
Condenser | Copper tube | Copper tube |
Sensor | NTC | NTC |
Temperature controller | Microprocessor | Microprocessor |
Display | Digital display | Digital display |
Voltage/frequency(V/Hz) | 220/50Hz | 220/50Hz |
Power(W) | 310W | 260W |
Current(A) | 3A | 1.9A |
Inside material | Color sprayedsteel | Color sprayedsteel |
Outside material | Color sprayedsteel | Color sprayedsteel |
Insulation | PURF | PURF |
Capacity(L/cu.ft) | 358/12.6 | 528/18.64 |
NT./GT.(kg) | 138/178 | 160/180 |
Exterior size(W*D*H)(mm) | 720×830×1870 | 900×818×1875 |
Interior size(W*D*H)(mm) | 466×636×625 | (651×631.5×635)×2 |
Package size(W*D*H)(mm) | 780×920×1990 | 921×960×1950 |
CBM | 1.43 | 1.80 |
20GP/40GP/40HQ | 18/39/39 | 12/24/24 |
High/low temperature | Y | Y |
Power off | Y | Y |
Sensor malfunction | Y | Y |
Ambient temperature（℃） | Y | Y |
Abnormal voltage | / | / |
Temperature controllermalfunction | Y | Y |
Door ajar | Y | Y |
Power failure backupsystem(alarm) | 8H | 8H |
Caster | Y | Y |
Test hole QTY/diameter | 2/25MM | 2/25MM |
USB port | Y | Y |
Data logger | Optional | Optional |
Remote alarm | Optional | Y |
Certification | ISO9001, 13485, 14001,CE | ISO9001, 13485, 14001,CE |
