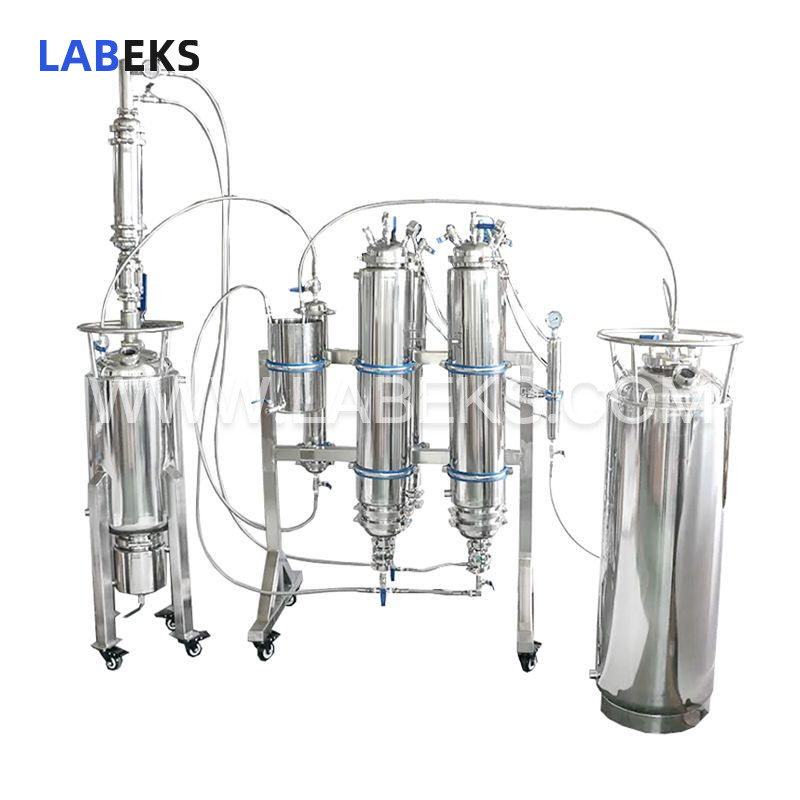

20LB Closed Loop BHO Extraction System with Integrated Solvent Recovery
For botanical extraction operations, the closed loop BHO extraction system from LABEKS operates in a fully sealed, vacuumed setup that prevents solvent exposure to air. This 20LB passive unit uses temperature-regulated pressure differentials to migrate solvent, separating and recovering it to leave purified oil after collecting oil-bearing solvent in its base.
- modelLCLE-20
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Closed loop extraction systems rank among the most widely used cannabis extraction devices on the global market. They are widely recognized as an eco-friendly and sustainable extraction solution, thanks to their built-in solvent recovery capabilities and high extraction efficiency.
Here’s the operational workflow of the closed loop extractor: Raw materials are loaded into the material column and soaked with ethanol or alternative solvents, enabling the extraction of target substances. The resulting mixture is then transferred to the next column for separation; solvent is moved to another dedicated column, while the extracted oil is collected in the bottom vessel for user retrieval. Importantly, solvents can be recycled and reused multiple times, delivering substantial cost savings for operators and notable environmental benefits.
features
Enhanced operator safety is ensured through the unit’s robust sealing and precise control systems, which minimize risks associated with solvent evaporation and leakage.
Integrated with a dedicated solvent recovery system, the unit enables solvent recycling, significantly cutting operational costs and reducing waste output.
Operators have full, precise control over temperature, pressure, and other key operational parameters, ensuring consistent, repeatable extraction results.
Throughout the entire extraction process, solvents and target compounds remain within a fully enclosed system, eliminating solvent volatilization and preventing external contamination.
This system finds extensive application across pharmaceutical manufacturing, natural product extraction, chemical processing, food science, and related sectors.
Versatile enough to support operations ranging from small laboratory-scale trials to large-volume industrial production, the system’s size and capacity can be customized to meet specific operational needs.
specifications
Model | LCLE-20 |
|---|---|
Capacity | 20LB (customizable) |
Extractor tank | 14″X40″ Single Jacketed ReclaimTank With Dip Tube and Internal Condensing Coil 12″X24″ Single JacketedCollection Vessel With Movable Legs |
Max pressure | 145PSI |
Material column size | 6″X36″ |
Filter dryer size | 4″X24″ |
Chilling coil | 8″X10″ |
Body Material | 304 Stainless Steel |
Operating Temperature | -42℃~72℃ |
Surface treatment | Sanitary high mirror polish |
Connection method | High pressure clamp |
