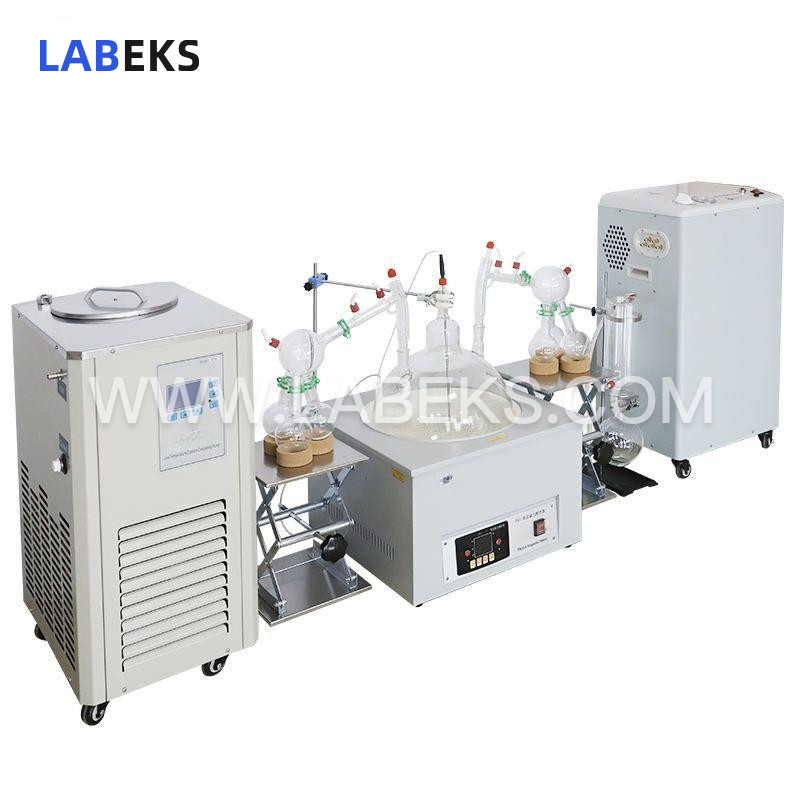

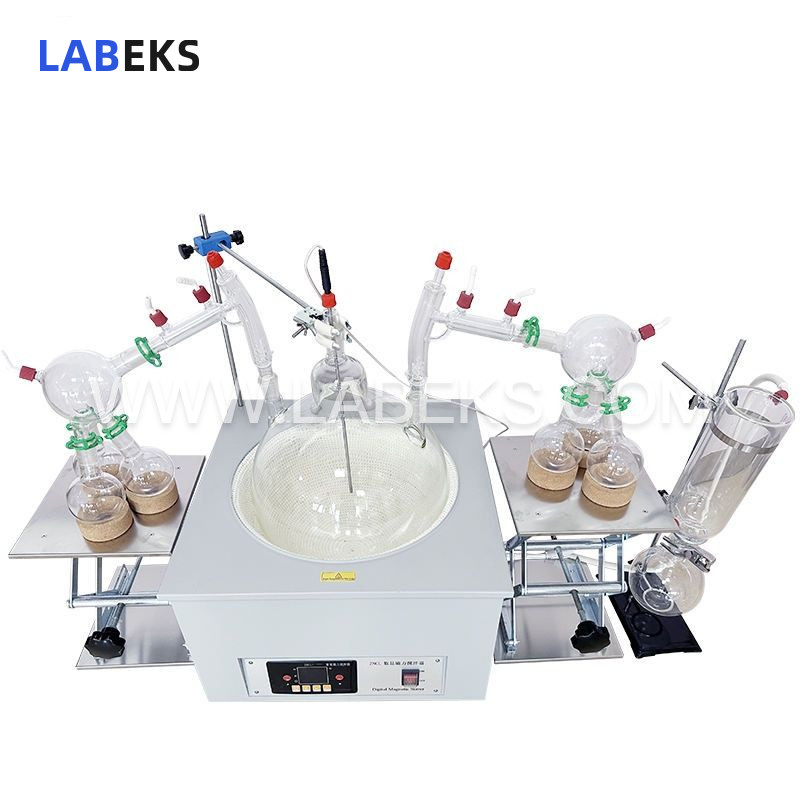

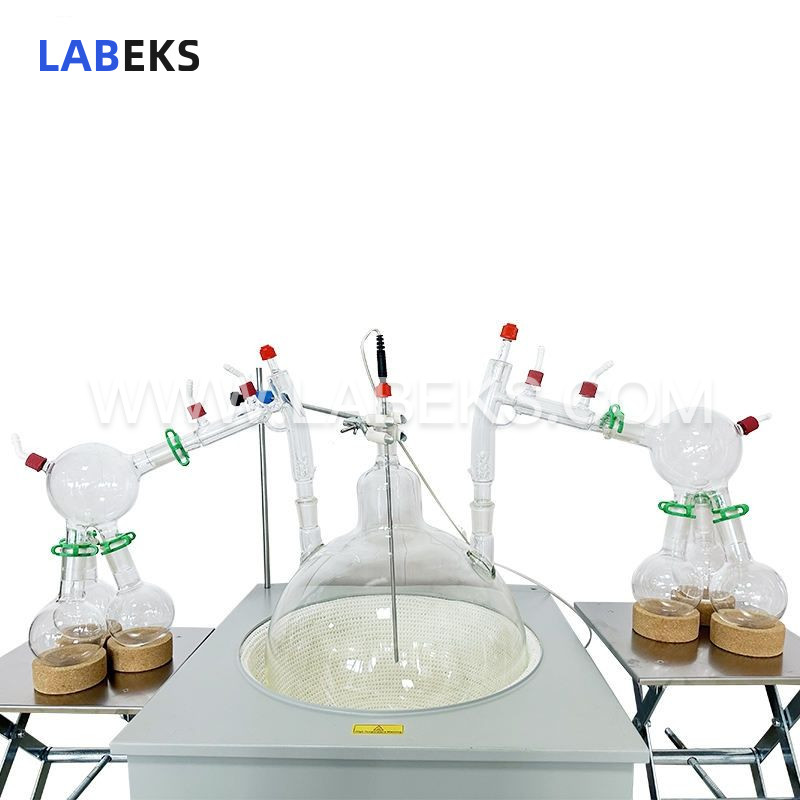

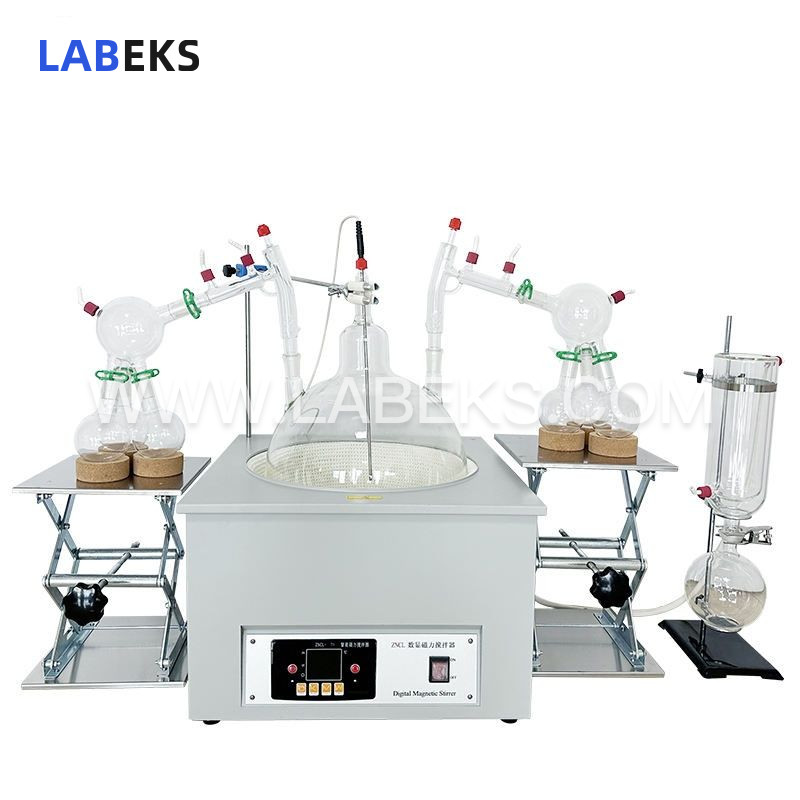

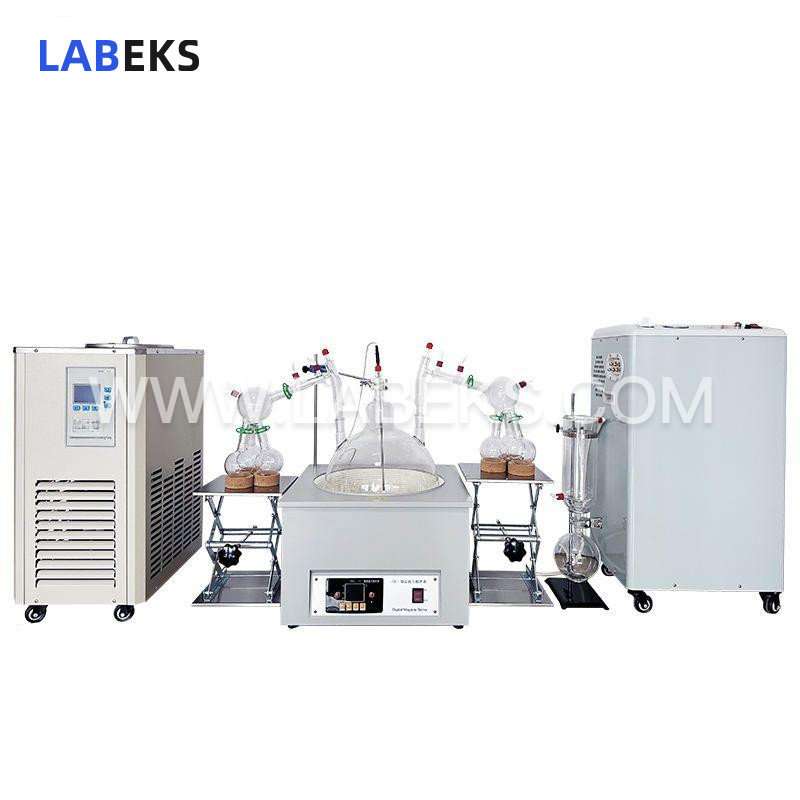

20L Short Path Molecular Distillation: High-Vacuum Processing for Heat-Sensitive Substances

Engineered for operation under extreme high vacuum, the short path molecular distillation (20L, dual-collection) excels at separating high-boiling point and heat-sensitive substances, and stands as a key offering in our distillation product series.

  • model
    LSD-20L
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

Short path distillation is an advanced distillation technology executed under reduced pressure. It is specifically tailored for compounds that are thermally unstable or require purification in small volumes. Key advantages include a heating temperature (under reduced pressure) that is far lower than the liquid’s boiling point at standard atmospheric pressure, plus a short travel distance for distillate before condensation, which minimizes compound loss on the device’s inner surfaces.

features

1. No bubbling or boiling occurs during operation, which facilitates sustaining a high degree of vacuum throughout the entire system.

2. Separation can be achieved at the material’s boiling point temperature, provided the system pressure is lower than the saturated vapor pressure of the material’s light components, and the distance between the heating surface and condensation surface is less than or equal to the mean free path of the light component molecules.

specifications

LSD-20L

Part Description

Quantity

Round Bottom Flask, 20L, 3-neck

1

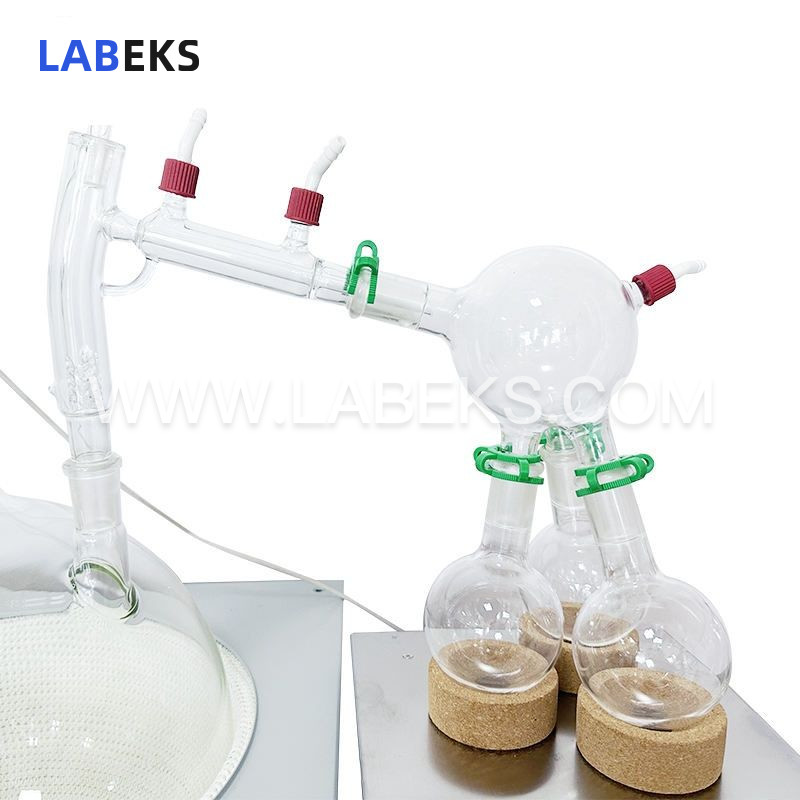

Short Path Distillation Head,Vacuum Jacket

2

Distillation Cow Receiver,1-to-3,24/40

2

24/40 round bottom flask 1000ml

6

Heating mantle (room temperature – 300 degrees)

1

Keck Clamp, stainless steel

3

Keck Clamp, plastic

8

Stainless Steel elevator-platform

5

Cork Ring Stand for Flask

3

Clamp Holder

1

Lab support Stand

1

Cold Trap

1

1L cold trap collection bottle

1
