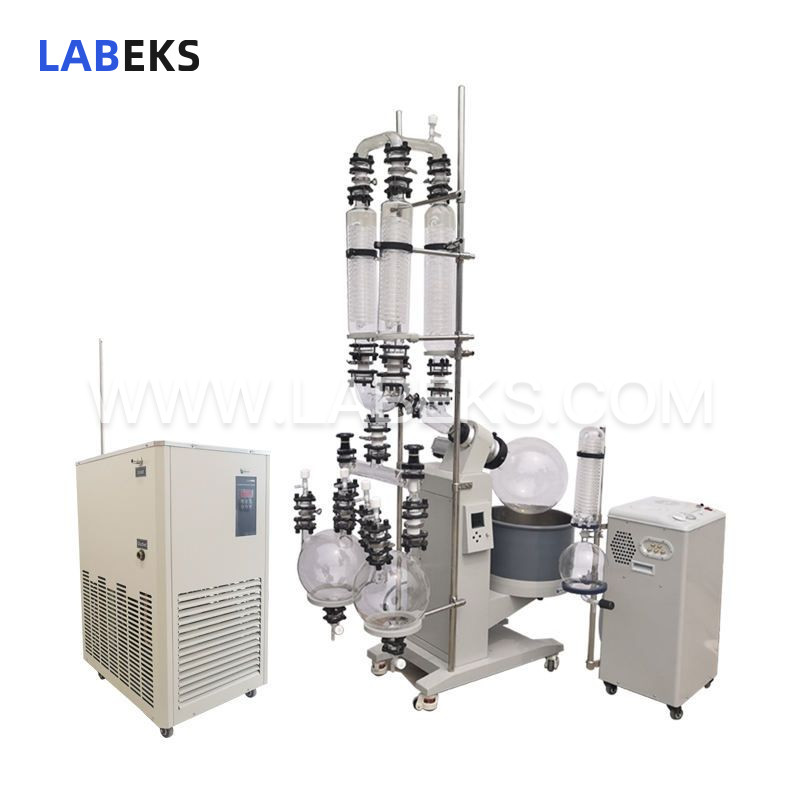

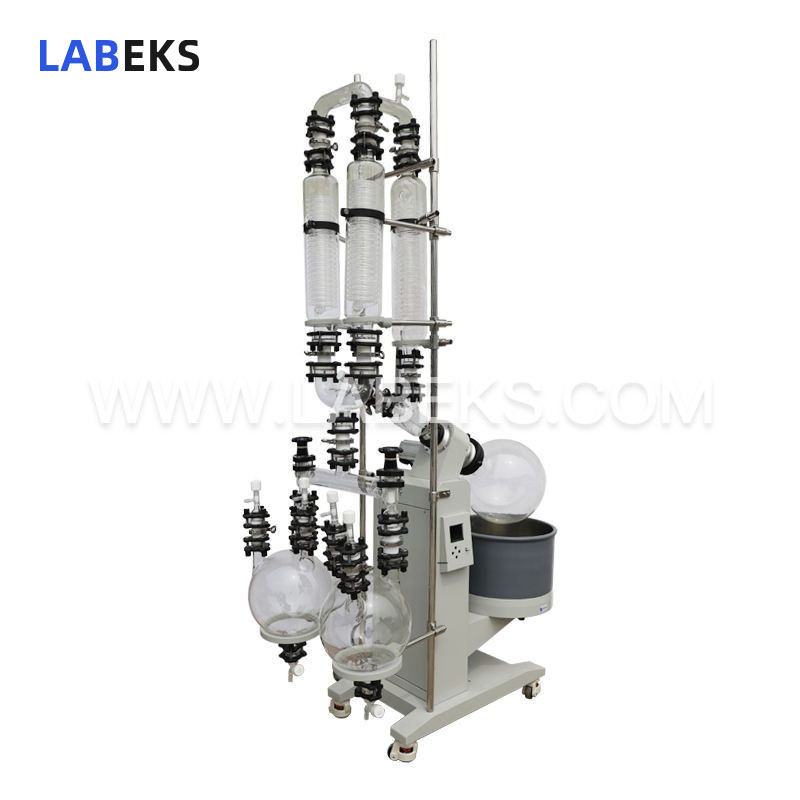

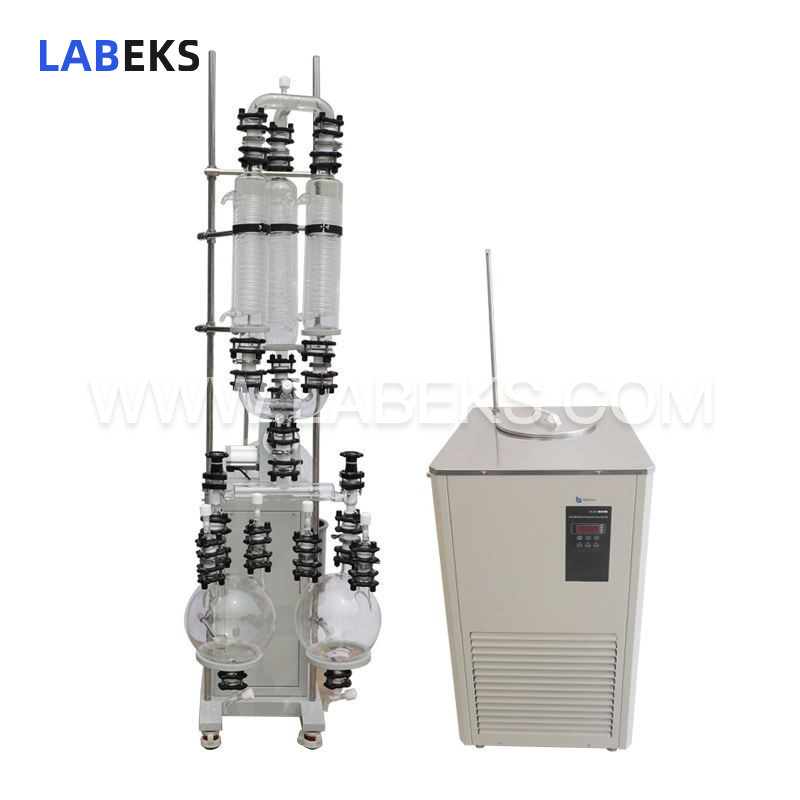

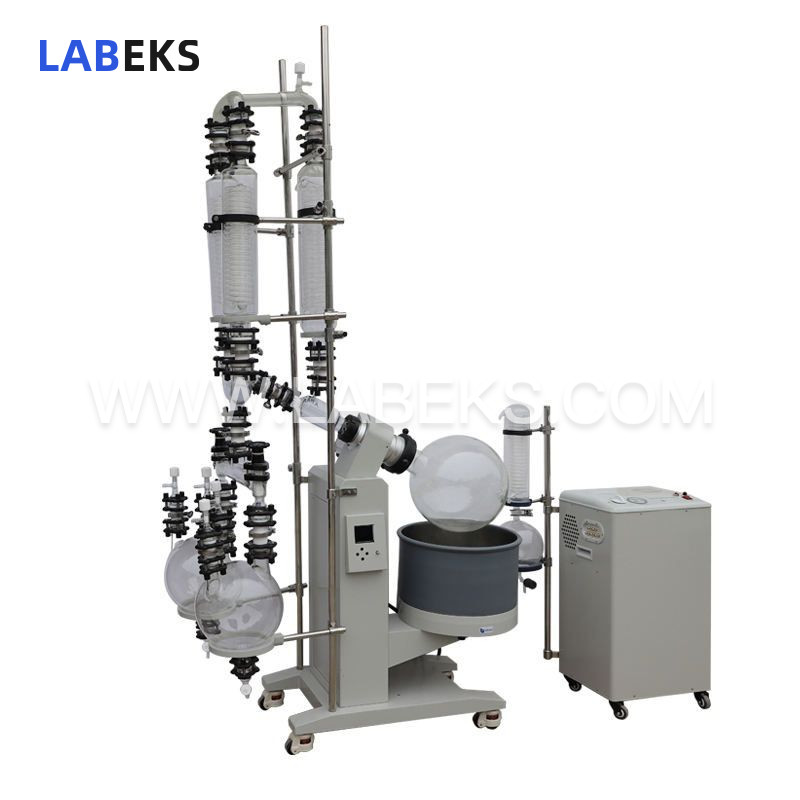

20L Rotary Evaporator with Vacuum Control for Chemical Lab Solvent Removal
Ideal for chemical laboratories, this rotary evaporator enables efficient and gentle solvent removal from samples via controlled evaporation, streamlining essential lab purification and sample preparation tasks.
- modelLRE-20C1
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Featuring stepless speed control, this rotary evaporator drives its glass rotating flask to spin at a constant speed, ensuring materials form a uniform, large-area film on the flask wall. The rotating flask is uniformly heated by an intelligent constant-temperature water bath; under vacuum conditions, solvents evaporate rapidly, then are cooled by high-efficiency glass condensers and collected in the receiving flask.
features
1. Integrated with double condensers and dual receiving flasks to boost solvent recovery efficiency.
2. Equipped with a vacuum controller that enables accurate vacuum degree control and real-time display.
3. Incorporates an LCD screen for clear, intuitive visualization of key operational parameters.
4. All sealing components are made of PTFE, paired with quick clamps for reliable, leak-proof connections.
5. Supports real-time vapor temperature display to monitor distillation processes precisely.
6. Features a programmable time function for automated operation scheduling.
7. Comes with a USB interface to enable easy downloading of historical process data.
8. Includes an expansion column to optimize vapor condensation performance upstream of condensers.
9. Equipped with an emergency stop button for immediate system shutdown and enhanced operational safety.
specifications
NO. | ITEM | DETAILS |
|---|---|---|
1 | 20Lrotary evaporator | Distillationrate>10 liter/hr Ethanol |
2 | Dualcondenser | |
3 | Dualcollection flask | 10L |
4 | ExpansionColumn | |
5 | Vacuumcontroller | Displayvacuum |
Controlvacuum | ||
1mbar steps for setting | ||
6 | Heatingwater bath | For20L flask |
Motorizedlifting | ||
5-90C water temp | ||
Measurement,Accuracy ±1 C | ||
3*2.1kw=6.3kW | ||
Displaytemperature | ||
1ºC steps for setting | ||
7 | Rotation | 5-150rpm, Soft Start |
adjustableelectronically | ||
Accuracy±1 | ||
ab0.3kw | ||
Displayrotation speed rpm | ||
1rpm steps for setting | ||
8 | ReceivingFlask | 2* 10 liter |
DisconnectingValves at top/Bottom, PTFE valve | ||
#1can be unloaded, while Distillation continue to #2 | ||
9 | ExpansionColumn | ExistUpstream to Condense |
Withvapor temperature sensor | ||
DisplayVapor Temperature | ||
1ºC steps for setting | ||
10 | Condenser | 2condensers, inparallel manner, Chilled, D2HP configuration |
Connectionbetween glassware is Quick Clamps | ||
eachcondenser>0.6 m2 | ||
Vacuumis at bottom Condensers | ||
11 | Material | MOC:SS304/SS316 |
Glass:Borosilicate 3.3 | ||
InContact with Product: PTFE | ||
12 | Otherrequest | Withtimer function |
Leakageof complete System:<1mbar/min | ||
WithProcess Data Recording function, USB interface | ||
Withair switch for emergency button | ||
Over-Pressureprotection |
