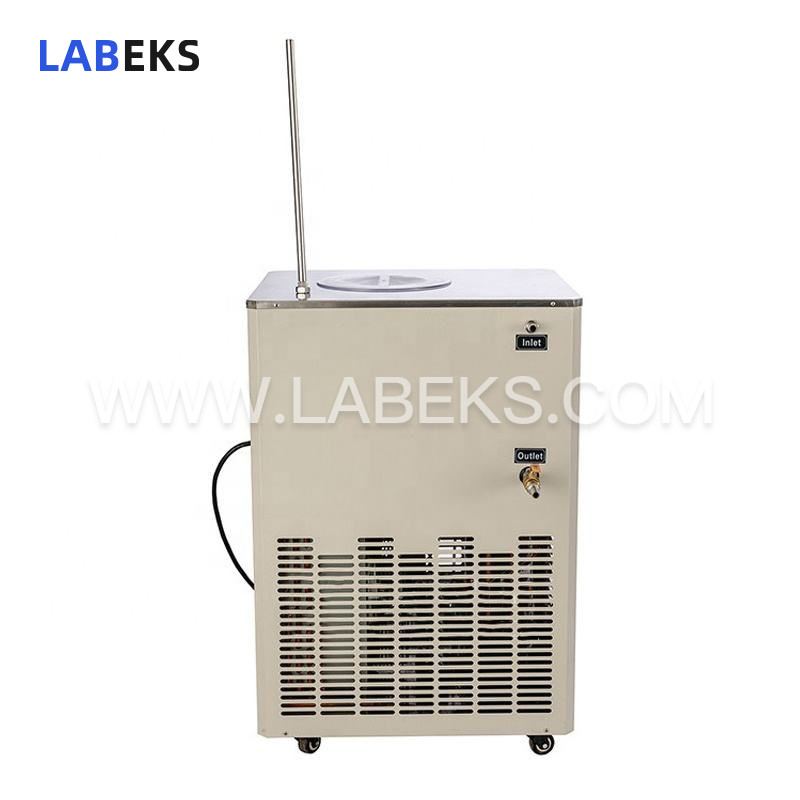

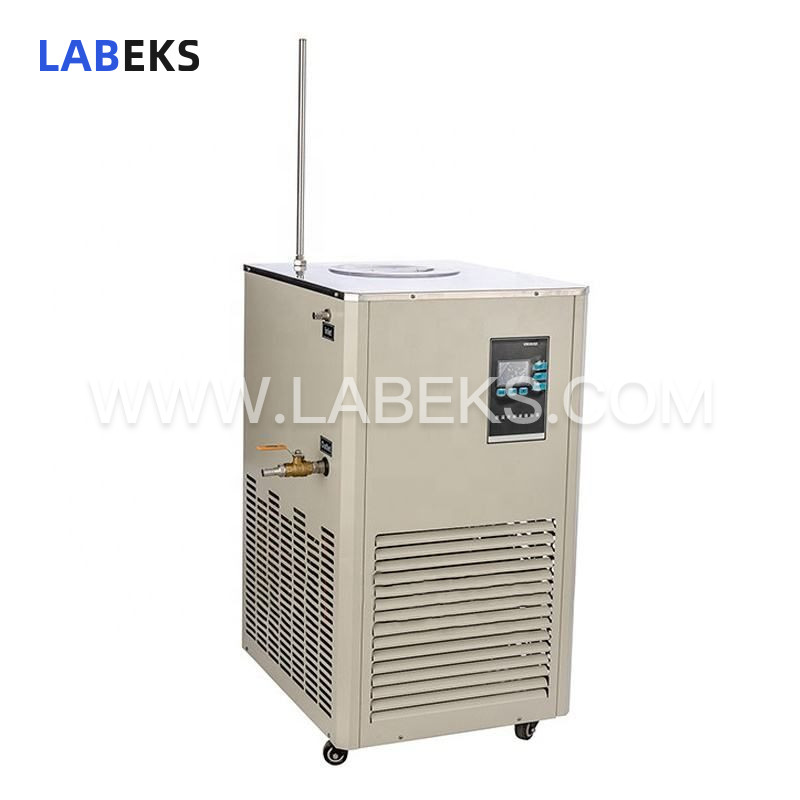

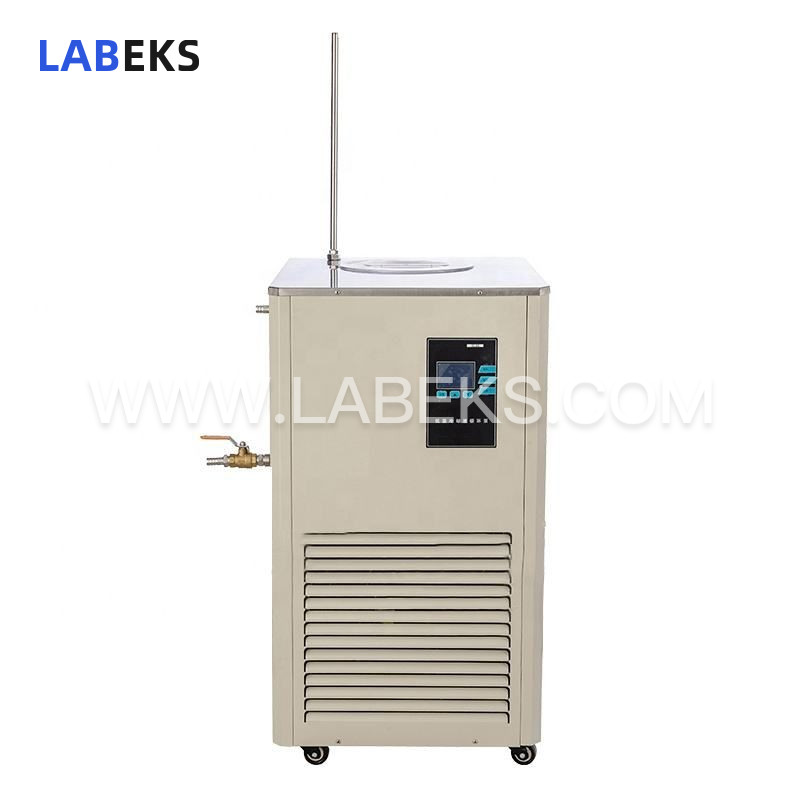

20L Recirculating Water Chiller with -30°C to RT Range for Lab Equipment Integration
Enabling targeted heat exchange between water and refrigerant in a closed-loop system, this recirculating water chiller offers reliable cooling support for laboratory processes and specialized instrument pairing.
- modelDLSB-20
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Utilizing compression refrigeration technology, this low-temperature liquid circulation equipment enables direct cooling of tubes, reaction flasks, and other components to facilitate low-temperature chemical reactions, as well as the cold storage of chemical and biological products. In addition, it can be seamlessly integrated with Rotary Evaporators, Vacuum Freeze-Drying Boxes, and Multipurpose Circulating Water Vacuum Pumps.
features
1. Equipped with a reliable imported air-cooled hermetic compressor for consistent, long-lasting performance.
2. Features a digital temperature display and microcomputer-based control system for intuitive, straightforward operation.
3. Delivers exceptional cooling capacity and rapid cooling rates, significantly boosting workflow efficiency.
4. Incorporates high-quality, refrigeration-specific relays, protectors, capacitors, and other critical components for guaranteed operational reliability.
5. Effectively safeguards various precision equipment and instruments even under challenging operating conditions, including water scarcity, substandard water quality, unstable water pressure, and high ambient temperatures.
6. The integrated circulating pump offers adjustable flow rates, with customization options available to accommodate the unique requirements of diverse users.
specifications
Model | DLSB-20/30 | DLSB-20/40 | DLSB-20/80 | DLSB-20/120 | |
|---|---|---|---|---|---|
Temperaturerange | -30°C to RT | -40°C to RT | -80°C to RT | -120°C to RT | |
Room Temperature | 5-35°C | ||||
Room humidity | ≤70% ventilation | ||||
Power supply | 220V 50HZ 1phase | ||||
Safetyprotection | Delay,overcurrent, overheating | ||||
Screen display | LCD screen, keyoperation | ||||
Temperatureaccuracy | ±0.1°C | ||||
Temperaturesensor | PT100 | ||||
Total power | 1332W | 2434W | 4691W | 6973W | |
Compressor | Compressor type | 1.5P | 3P | 3P | 3P |
Compressorquantity | 1 | 1 | 2 | 3 | |
Compressor power | 1103W | 2205W | 4410W | 6615W | |
Cooling capacity | 3486W | 6972W | 13944W | 20916W | |
Circulating pump | Power | 100W | |||
Flow | 20-40L/min | ||||
Lifting head | 4-6M | ||||
Pressure | ≤0.4MPa | ||||
Air-cooledcondenser | Power | 129W | 181W | 258W | |
Heat exchangearea | 11㎡ | 15.2m² | 22m² | ||
Air volume | 2290m³/h | 3050m³/h | 4580m³/h | ||
Refrigerant | R22 | ||||
Condensing coil | Φ12 Copper tubenickel plated | ||||
Material | Cold plate sprayanticorrosion | ||||
Tank size | Φ300x300H (mm)about 21L | ||||
Outer loopinterface | Φ16mm | ||||
Dimension | 590x670x(975+500)mm | / | / | ||
Weight | 83KG | 96KG | / | / | |
Package size | 725x590x1120mm(woodenbox0.48m³) | 720x590x1140mm(woodenbox0.49m³) | 1060x840x1100mm(woodenbox1.03m³) | 1060x850x1370mm(woodenbox1.24m³) | |
Package weight | 110KG | 133KG | 190KG | / | |
