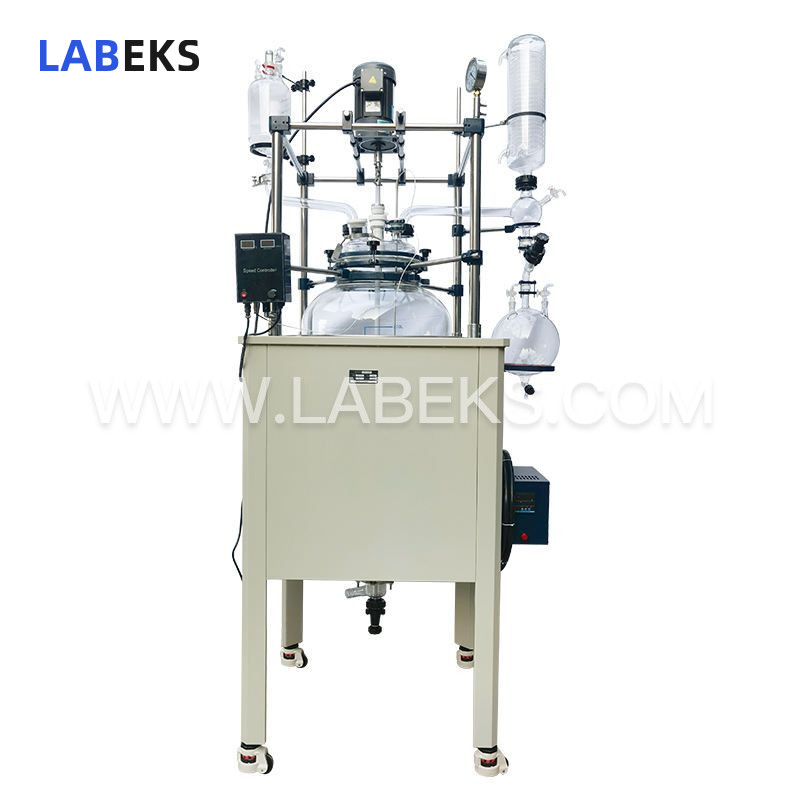

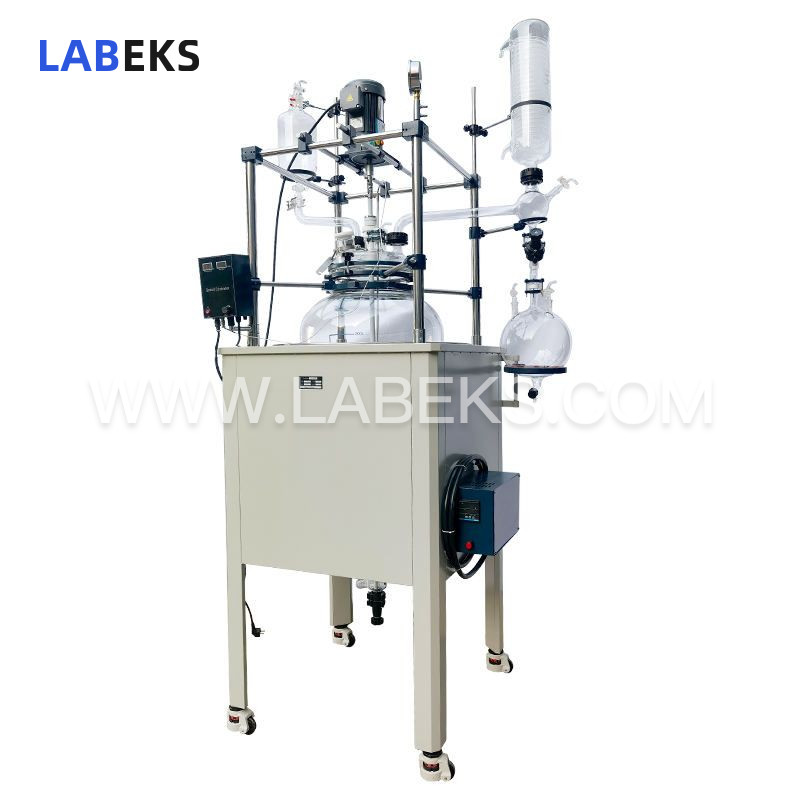

200L Single Layer Glass Reactor with Vacuum & Reflux for Chemical Synthesis
Integrating vacuum operation, distillation, reflux, stirring, and oil/water heating with heating mantle, the single layer glass reactor enables precise constant-temperature biochemical and synthesis reactions within a fully closed system.
- modelLGR-200F
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

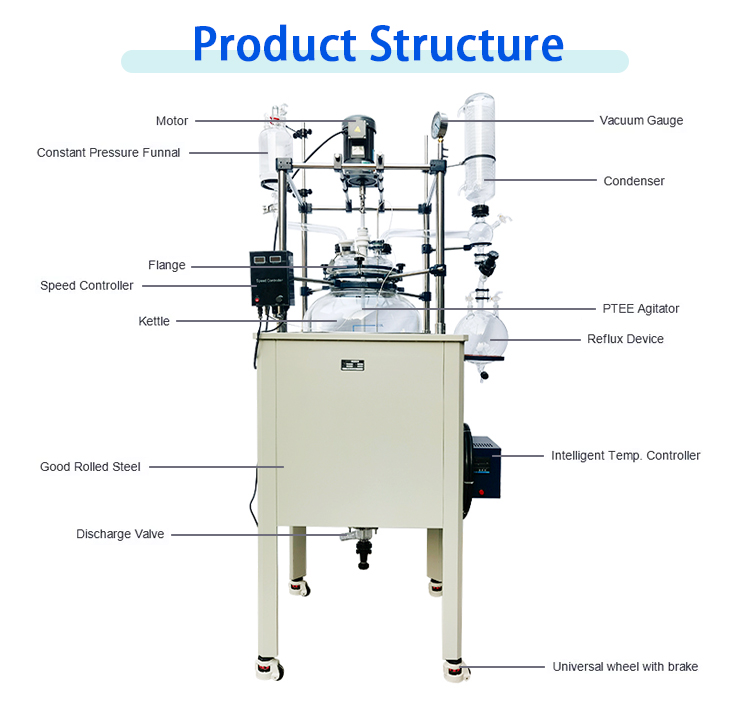

The inner chamber of the single layer glass reactor holds reaction solvent that can be agitated, and the vessel is heated via computer-controlled oil bath or electric heating system. It operates under either atmospheric pressure or vacuum conditions to facilitate reflux and distillation of reaction solutions. As an ideal system for modern synthetic chemistry, biopharmaceuticals, and new material development, it supports both laboratory preparation experiments and industrial-scale production operations.
features
1. Reaction vessel constructed from GG3.3 borosilicate glass, offering excellent chemical and physical stability; large-capacity design enables easy manual cleaning access.

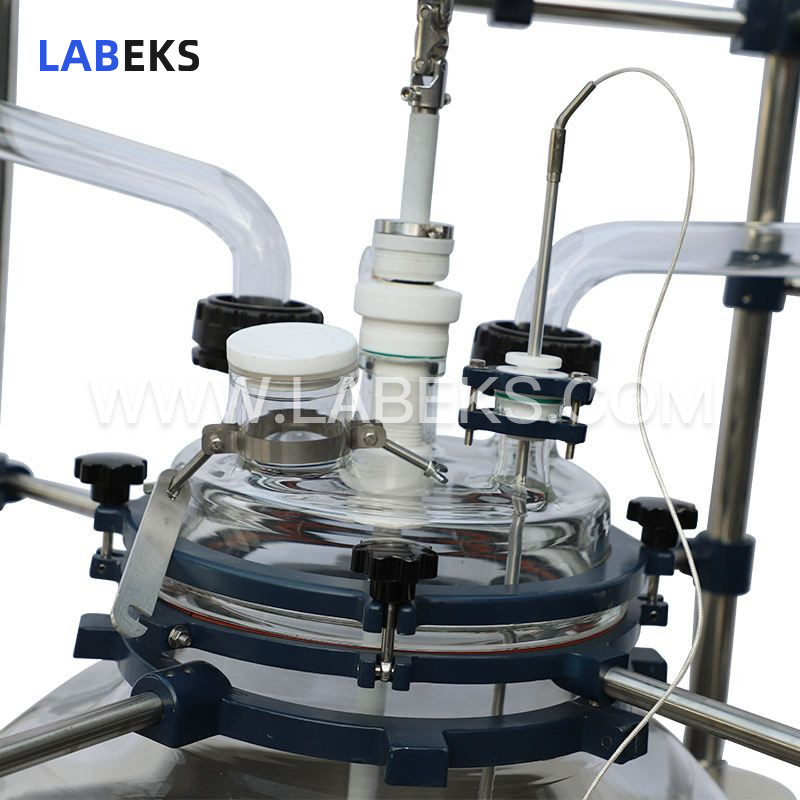

2. PTFE (Ceramic) mechanical seal with proprietary technology, delivering the highest achievable vacuum levels among comparable products.
3. Frequency-controlled AC induction motor with digital constant speed display: brushless, spark-free operation ensures safe, stable, continuous runtime.
4. Computer-controlled constant-temperature oil bath with intelligent PID regulation ensures accurate, user-friendly temperature control.
5. Full stainless steel frame structure (including tee, four-way valve, and other foot connectors) ensures a compact, rigid platform with zero shaking during stirring operations.
6. Dead-zone-free PTFE bottom valve allows easy discharge of both solid and liquid materials from the vessel base.
7. Brake-equipped casters enable convenient, secure mobility for flexible placement.
8. Scientifically engineered integral structure features a sleek appearance and intuitive operational access.
9. Explosion-proof configurations available.
(Custom modifications including cooling coils and explosion-proof devices can be implemented per user requirements)
specifications
Model | LGR-200F | |
|---|---|---|
Kettle volume | 200L tubular | |
Voltage/frequency | Stirring220V/50HZ, heating pot 380V/50HZ | |
Stirring power | 750W，1/5 | |
Heating power | 12KW | |
Stirring speed | 0-280rpm/min | |
Bath temperaturerange | room temperatureto 180℃ | |
Temperatureaccuracy | ±1℃ | |
Vacuum degree | 0.098Mpa | |
Kettle size | Φ340mm | |
6ports of thecover | Stirring port | Φ60mm flangeport |
Condenser refluxport | 50# ball millport | |
Constantpressure funnel port | 50#ball mill port | |
Relief port | 34# standardport | |
Temperaturemeasuring port | Φ45 flange port | |
Solid feedingport | Φ80mm flangeport , inner diameter Φ60mm matched with PTFE cover | |
Stirringpaddle | Φ20*1300H(mm),leafing 240mm | |
Condenser size | Φ160*600H(mm)，down with Φ60 flange port | |
Condenser area | 0.95㎡ | |
Reflux elbow | upper with Φ60flange port，left with 50# ball mill plug，right with 24# standard port , matched with functionalvalve | |
Adding dropwisebottle | 5L tubular，upper with 29# standard port vent valve*2, 34# standardport matched with glass plug | |
Receiving bottle | 10L，upper with 50# ball mill port，24# standard port vent valve*2, down matched with glassplug | |
Relief valve | 34# standardplug valve，padoga connector,outer diameter 12mm | |
Baiting valve | Φ80 flange port，Φ33mm baiting port，inclineddischarged port (pagoda connector) Φ34mm, from floor 350mm | |
Vacuum suctionnozzle | padogaconnector,outer diameter 12mm | |
In and outcirculation nozzle of condenser coil | padogaconnector,outer diameter 15mm | |
Pot braverydimension | Φ700*800H(mm) | |
Overalldimension (W*L*H) | ||
Net weight | 178kg | |
Packingdimension | 2310*860*1195mm,2.37m³ | |
Packing weight | 241kg | |
