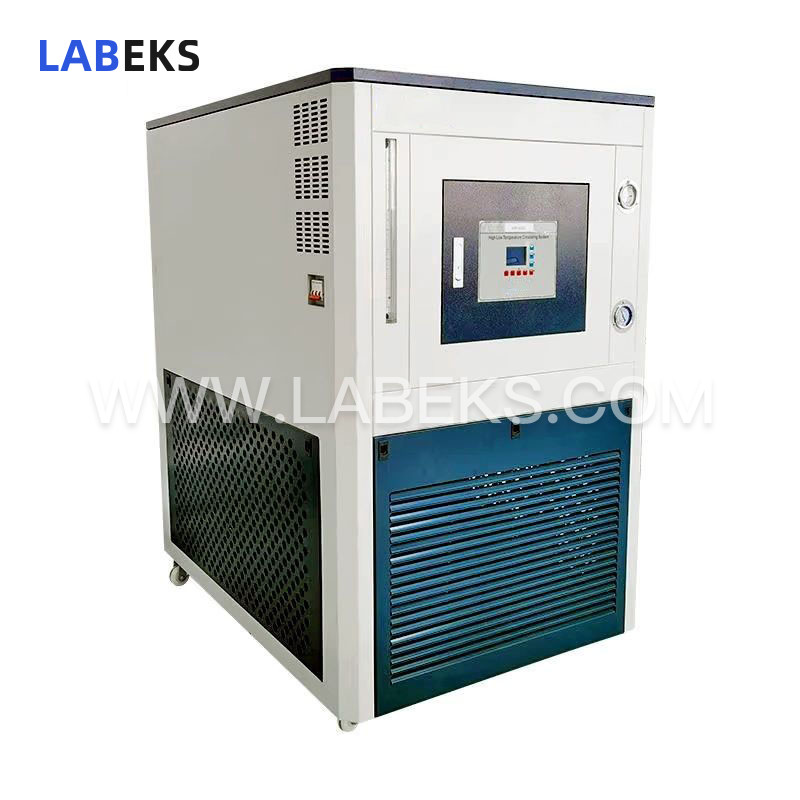

200L Large Scale Refrigerated Heating Circulator with -80°C to 200°C Range & Precise Control
Designed for routine and sophisticated applications demanding precise temperature regulation, the LABEKS LGD series refrigerated heating circulator delivers exceptional performance across -80°C/-40°C to 200°C, with custom -120°C capability available upon request.
- modelLGD-200/40 LGD-200/80
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The refrigerated heating circulator integrates cooling, heating and circulation functionalities, and consists of a refrigeration unit, heating unit, circulation system and control system.
The refrigeration module relies on a fully hermetic compressor for mechanical refrigeration, and incorporates plate heat exchangers, expansion valves and pressure protectors to satisfy cooling demands.
The heating module utilizes electric heating tubes to warm the circulating fluid. Via the integrated circulation pump and external circulation pipelines, the cooling or heating medium is delivered to the jacket of matched equipment, enabling indirect temperature control of materials within the reactor.
For external circulation operation, connect the circulator’s upper outlet pipe to the kettle body’s lower inlet pipe; the circulating fluid will then flow back to the circulator’s lower return port via the upper circulation port of the kettle, establishing a closed circulation loop.
features
1. Equipped with imported compressors sourced from France and Denmark for reliable, high-performance operation.
2. Offers standard temperature accuracy of ±1°C; connection to an external sensor enables enhanced temperature difference accuracy of ±0.5°C.
3. Integrated over-temperature limit protection: the unit will automatically shut down if the set maximum temperature is exceeded to avoid operational failure.
4. Compressor overheat protection functionality: the compressor will automatically cease operation once its temperature threshold is exceeded.
5. Built-in power supply protection safeguards against electrical anomalies.
6. Water-cooled configurations include water flow and low water pressure protection mechanisms for stable operation.
specifications
Model | LGD-200/40 | LGD-200/80 |
|---|---|---|
Matched reactor | 200L | 200L |
Tank Volume(L) | 50 | 50 |
Heating volume(L) | 30 | 30 |
Heating tank size(mm) | ￠350*350 | ￠350*350 |
Oil tank size(mm) | 400*400*400 | 400*400*400 |
Working temperature range(℃) | -40℃to +200℃ | -80℃to 200℃ |
Ambient temperature(℃) | ≤25 | ≤25 |
Lowest temperature (No load) | -40℃ | -82℃ |
Power | 380V±10% 50HZ | 380V±10% 50HZ |
Heating power(W) | 18000 | 24000 |
Temperature accuracy(℃) | ±0.1 | ±0.1 |
Sensor | PT100 | PT100 |
Medium quality degree | 500C.S.T | 500C.S.T |
Circulating pump power(w) | 750 | 750 |
Lift head(m) | 22 | 22 |
Flow(L/min) | 80 | 80 |
