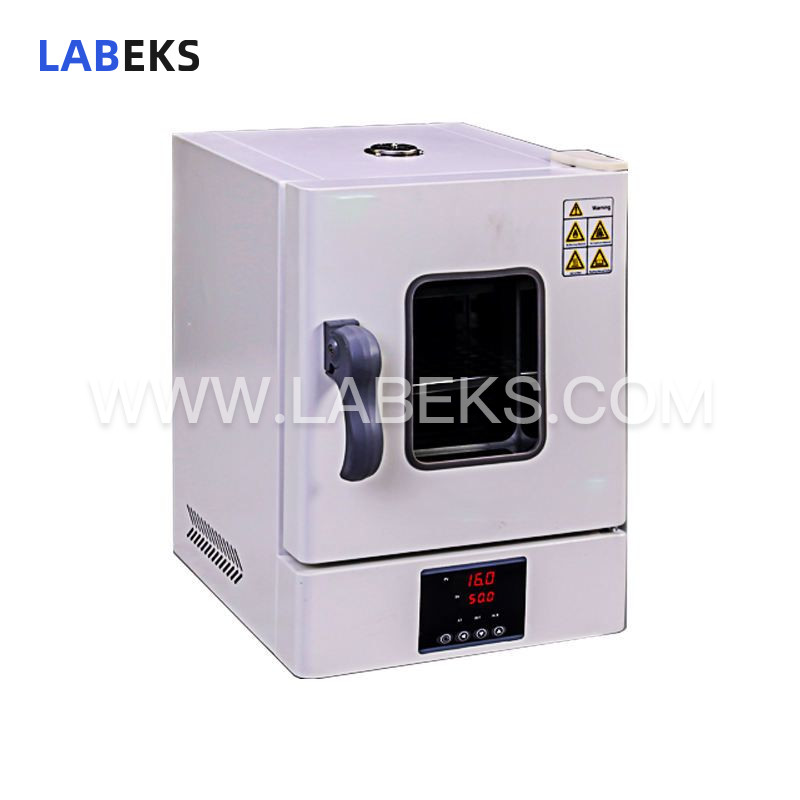

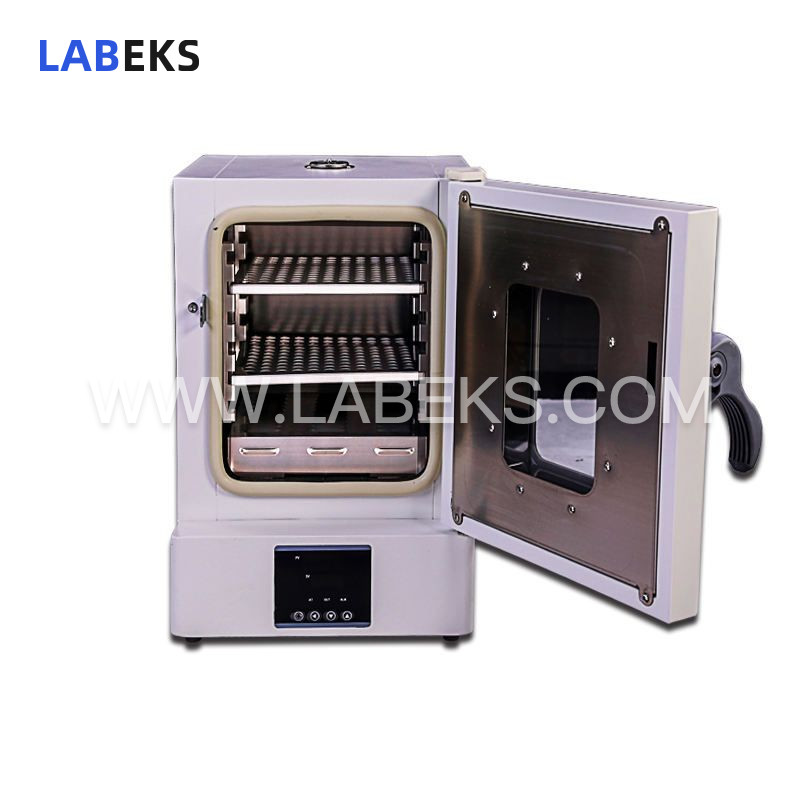

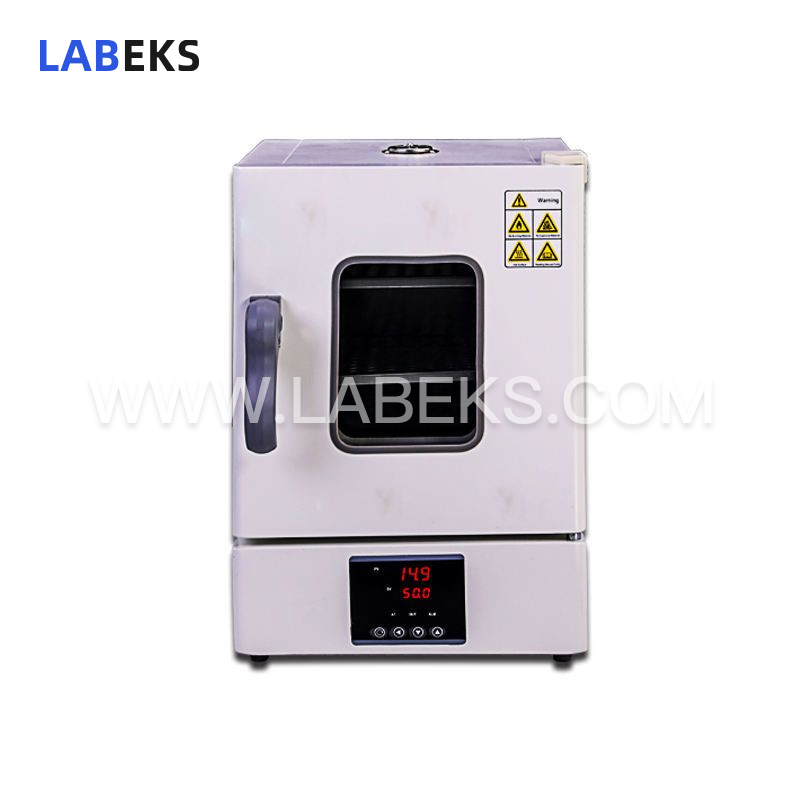

18L Desktop Electric Thermostatic Drying Oven with PID Precision Temperature Control
Ideal for bacterial cultivation, fermentation and constant temperature testing in healthcare, pharmaceutical, biochemistry and agricultural research labs, this electric thermostatic drying oven delivers precise, stable thermal regulation for research and industrial production needs.
- modelLHL Series LWP Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The LHL Series Desktop Electric Heating Constant Temperature Drying Oven features an 18L internal cavity, operates via natural convection, offers a working temperature range of RT+5~300°C, and incorporates PID precise temperature control with an accuracy of ±3.5%.
The LWP Series Desktop Incubator comes with an 18L internal cavity, uses natural convection, has an operating temperature range of RT+5~65°C, and utilizes PID precision temperature control with an accuracy of ±2.0%.
features
Intuitive operation with support for fixed-value operation, timed operation, and automatic shutdown functions.
Dedicated function keys facilitate precise temperature parameter setting.
An auxiliary menu provides access to over-temperature alarm, temperature deviation correction, and menu lock features.
Integrated over-temperature alarm and menu lock functions enhance operational safety and consistency.
Traditional heat transfer technology ensures uniform temperature distribution throughout the cavity.
Double-layer tempered glass observation window enables real-time monitoring of experimental processes.
specifications
Model | LHL-25A /LHL-25AB | LWP-25A /LWP-25AB | |
|---|---|---|---|
Mode | Natural convection | ||
Performance | Temp. range | RT+10~300℃ | RT+5~65℃ |
Temp. resolution | 0.1℃ | ||
Temp. fluctuation | +-1℃ | +-0.5℃ | |
Temp. distribution | +-3.5% | +-2.0% | |
Constitution | Interior | A-type:high strength carbon steel plate AB-type:stainless steel plate | |
Exterior | cold-rolled steel plate, surface coating with chemical resistance | ||
Thermal insulation material | aluminum silicate fiber | ||
Heater | Ni-Cr alloy heating wire OCr27AL7Mo2 | ||
Rated power | 0.6kw | 0.18kw | |
Exhaust port | I.D. 28mm*1, top | ||

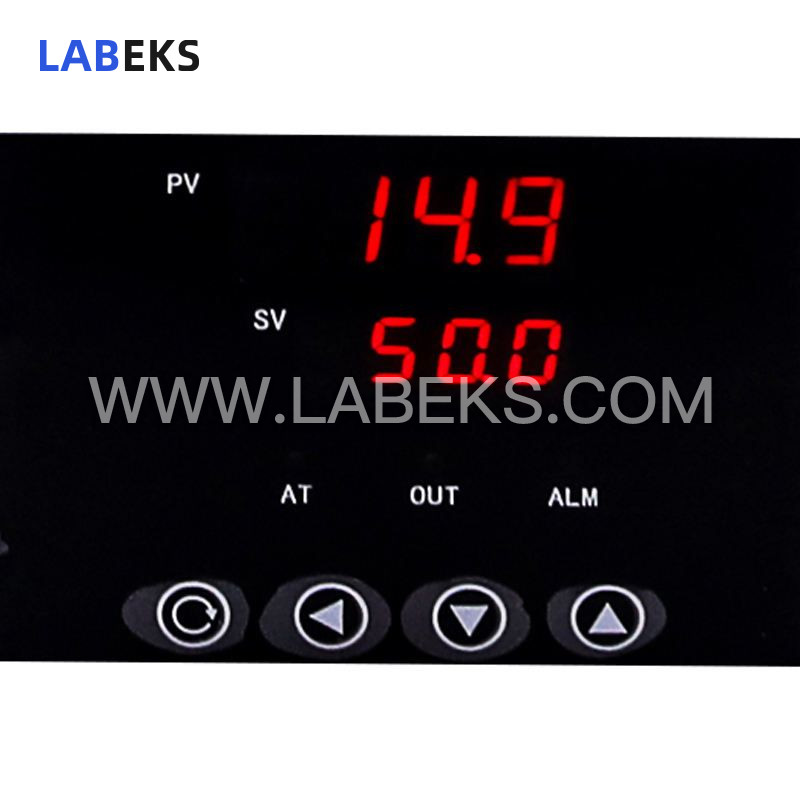

Controller | Temp control mode | digital tube dual-row PID | |
Temp setting method | Tap four buttons to set | ||
Temp display method | Measuring temp display: 3-digit digital upper; Set temp display: 3-digit digital lower | ||
Timer | 0-9999 minutes ((with timing wait function) | ||
Running function | fixed value running, timing running, automatic stop | ||
Program mode | optional | ||
Additional functions | deviation correction, menu button lock, power failure compensation, powerfailure memory | ||
Sensor | Pt100 | ||
Safety device | Overheating alarm | ||
SPEC | Internal dimensions | 260*260*260(W*L*H)mm | |
External dimensions | 376*464*548(W*L*H)mm | ||
Outer packaging size | 450*490*615(W*L*H)mm | ||
Internal volume | 18L | ||
Partition bearing capacity | 15kg | ||
Partition layers | 6 layers | ||
Space between partitions | 35mm | ||
Power supply(50/60Hz) rated current | AC220/2.7A | AC220/0.8A | |
Net weight/Gross weight | 21/23 kg | ||
Accessories | Partition | 2 pieces | |
Configuration that can be added | Partition, RS485 interface, printer, recorder, external communication,remote control, program temperature controller, wireless SMS alarm, U diskdata storage. | ||
