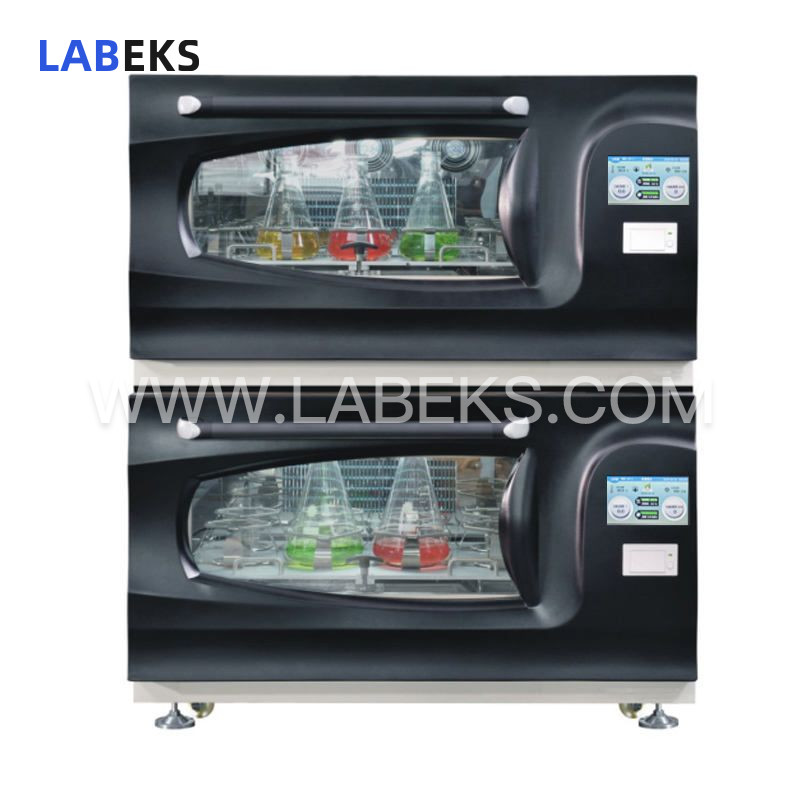

189L Horizontal Stacked CO2 Incubator Shaker with 0.1% CO2 Accuracy for Cell Culture
Ideal for bacterial culture, fermentation, hybridization, biochemical reactions, enzymology, and cell tissue research, the CO2 incubator shaker provides precise control of temperature, oscillation frequency, and CO2 levels to meet rigorous experimental demands for cell, tissue, and bacterial cultivation.
- modelLJS-2012R CO2
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This integrated CO2 constant temperature incubator shaker utilizes a single-axis balance drive system, ensuring ultra-low noise operation. It offers a CO2 control range of 0-20% with a control accuracy of 0.10%, and is equipped with multiple safety features including upper and lower limit over-temperature audible and visual alarms, upper and lower limit overspeed alarms, an independent over-temperature protector, and door-open shutdown protection.
Additional safety safeguards include leakage and overcurrent protection devices. This instrument is widely applied in bacterial culture, fermentation, hybridization, biochemical reactions, enzymology, and cell tissue research.
features
Equipped with a high-quality variable frequency motor, the unit features low vibration, ultra-low noise, high efficiency, wide speed regulation, maintenance-free operation, energy savings, and long-lasting reliability.
Single-axis balanced drive technology ensures ultra-low noise operation for a quiet laboratory environment.
An intelligent microprocessor controller with environment scanning capabilities delivers audible and visual alarm functions for enhanced operational safety.
A large LCD screen clearly displays both set parameters and real-time measured parameters for straightforward monitoring.
Over-temperature audible and visual alarm functionality is included; the system automatically cuts off power to respective components in the event of motor overheating, temperature runaway, or abnormal over-temperature conditions.
Power-off recovery function allows the device to automatically resume operation according to pre-set programs after an unexpected power outage and subsequent power restoration.
A dedicated acceleration control circuit ensures the shaker starts slowly and accelerates steadily, safeguarding the integrity of experimental samples.
Operating parameters can be encrypted and locked to prevent accidental human misoperation that could disrupt experiments.
Running parameter memory function eliminates the need for repetitive, tedious setup operations.

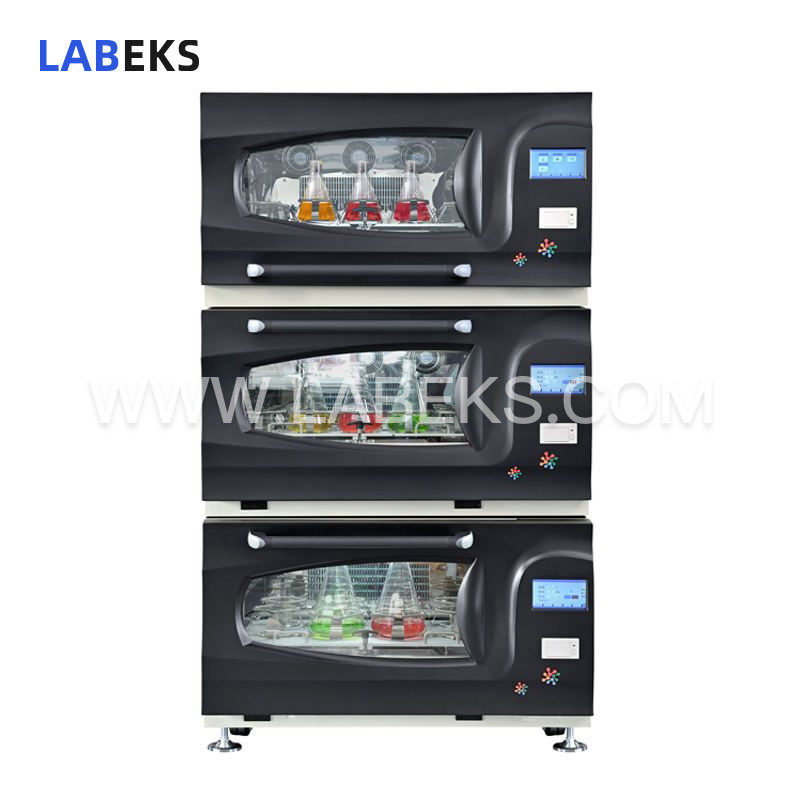

Up to three units can be stacked vertically, occupying only the floor space of a single shaker to optimize laboratory layout.
With a downturn door design and easily accessible pull-out pallet, the instrument offers intuitive, hassle-free operation.
The working chamber features mirror-finish 304 stainless steel with rounded arc corners for easy cleaning and durability.
Boasting a streamlined, luxury machine silhouette with an aesthetic design concept, the unit comes with an electrostatic powder-coated cabinet and tempered double-glazed windows.
Application range
Cell culture, extraction experiments, dyeing and decolorizing, hybridization experiments, solubility tests, plasmid purification, bacterial suspension preparation, elution processes, protein expression
specifications
Model | LJS-2012R CO2 |
|---|---|
Control method | P.I.D(Microcomputerenvironment scanning micro processing chip) |
Display method | 7-inch colortouch screen |
Cyclic mode | Forcedconvection |
Oscillation mode | Rotaryoscillation |
Drive mode | Single-axisbalancing device (Chinese patent, ultra-low mute) |
Temperaturerange | 4℃-60℃ |
Temperatureaccuracy | ±0.1℃ |
Temperatureuniformity | ±1℃ |
CO2 controlrange | 0-20% |
CO2 controlprecision | 0.10% |
Securityfunction | Upper and lowertemperature deviation alarm; upper- and lower-line speed deviation alarm,independent over-temperature protector; open door stop protection; leakageprotection, chiller overload protection. |
Accessoryfunction | Speed storage,call recovery, parameter memory, temperature speed correction, clock display,room temperature / measured temperature double display. |
Programmingfunction | Repeat, step,eight-segment curve programming settings. |
Print function | Embeddedbuilt-in micro printer. |
Interface | USB data storageoutput function |
Rotationfrequency | 10-300rpm |
Rotationaccuracy | ±1rpm |
Pendulumamplitude | Φ25mm |
The refrigerant | CFC-Free (134A)fluorine-free safety refrigeration system. |
Cooler | 200W |
Heater | 800W |
Timing range | 0-500h/Sustainable |
Rocker size | 780*480(mm) |
Maximum capacity | 250ml*40,500ml*28, 1000ml*15, 2000ml*12 |
Rocker quantity | 1 piece |
Net weight | 180kg/set |
Inner cavitysize | 870*550*395H |
Dimensions | 1150*780*630H(single) |
1150*780*1260H(doublestack) | |
1150*780*1890H(trifold)90mm without feet/with high stool. | |
Opening method | The second floorbelow: pull-down type Third floor:flip-up type |
Rocker | Free pull |
Annex | Lighting lamp,UV ultraviolet lamp |
Power | 1120w |
Motor | High qualityvariable frequency motor |
Power supply | AC 200-240V50-60HZ |
Bearing | NSK importeddouble row bearings |
Shaft material | 45# carbonsteel, 220-250HBW quenching and tempering treatment |
Inner cavitymaterial | All 304 highquality imported stainless steel mirror panel |
Box material | High quality andhigh strength channel steel, angle steel, cold rolled steel plate |
