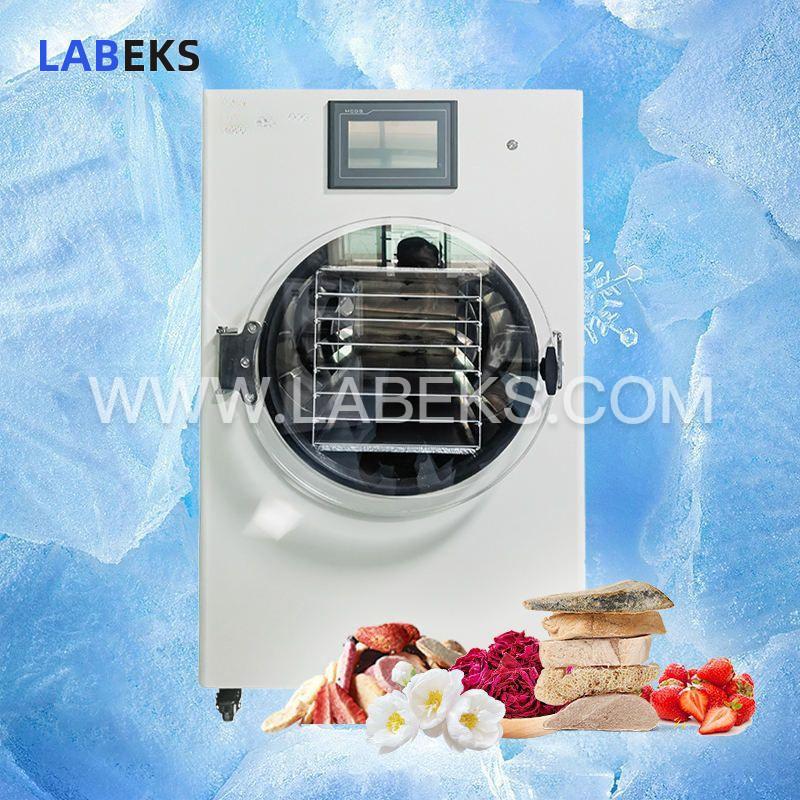

15kg Household Vacuum Freeze Dryer for Home Use & Small-Batch Food Preservation
Crafted for home use and small-batch online retail operations, this vacuum freeze dryer supports lyophilization across vegetables, aquatic products, meat, seasonings, instant drinks, convenience foods, traditional Chinese medicine, materials and biological sectors.
- modelLFD-15
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Lyophilization, or freeze drying, is a dehydration process where a product is first frozen and then placed under a vacuum. This allows ice to transition directly from a solid state to vapor without passing through a liquid phase. The procedure comprises three distinct, unique, and interdependent stages: freezing, primary drying (sublimation), and secondary drying (desorption).
features
1. Equipped with an original imported refrigeration compressor, featuring large cooling capacity, high energy efficiency, extended service life and low operational noise.
2. Partitioned intelligent energy-saving temperature control technology ensures high temperature control precision, remarkable energy-saving performance, and stable, reliable system operation.

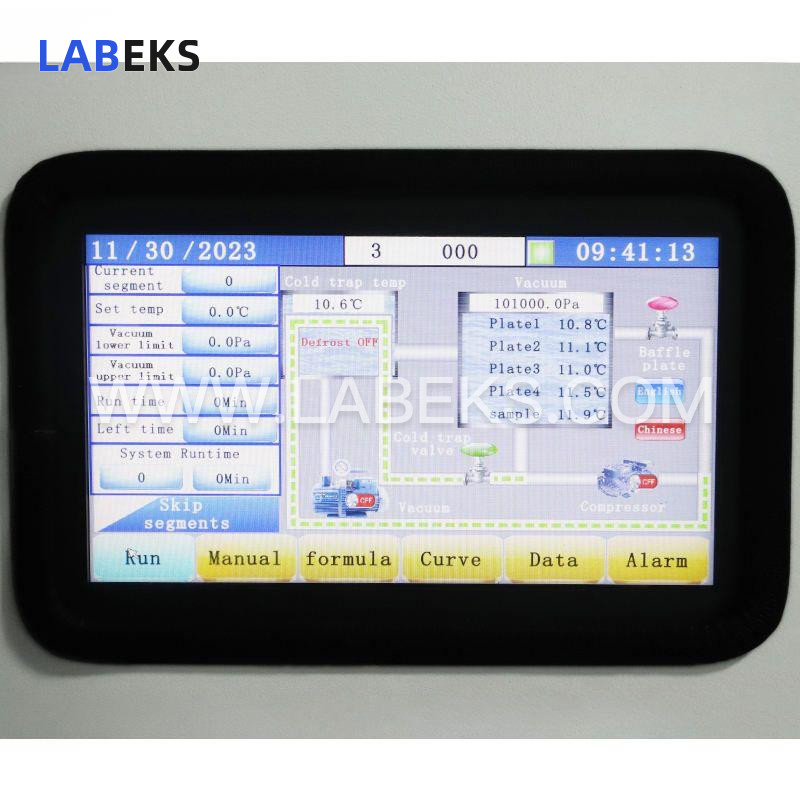

3. Integrates a PLC control system for one-button startup and intuitive operation.
4. Boasts high automation and user-friendly operation, enabling full completion of the freeze-drying process with a single button press.
5. Preset standard freeze-drying processes eliminate the need for in-depth knowledge of complex lyophilization principles and procedures, with one-click process import functionality.
6. Supports customization of freeze-drying processes via adjustable parameters including temperature, freeze-drying duration, and vacuum level to tailor lyophilization curves.
7. Intelligent fault diagnosis technology presents fault information in text format, significantly simplifying equipment maintenance and troubleshooting.
8. Real-time temperature and vacuum protection throughout the freeze-drying process safeguards both stable equipment operation and consistent drying results.
9. Safety lock feature prevents unauthorized modification of system status and process parameters due to misoperation, avoiding freeze-drying failures or equipment damage.
10. Features a user-friendly, plug-and-play design with an aesthetically pleasing appearance, compact structure and excellent cost performance.
11. Incorporates an aerospace-grade high-transmittance plexiglass door, allowing real-time observation of the entire sample freeze-drying process.
12. One-click rapid defrosting technology ensures safe and efficient defrosting operations.
specifications
Model | LFD-15 |
|---|---|
Freeze-driedArea | 1.45㎡ |
Cold traptemperature | ≤-35℃ (No load) |

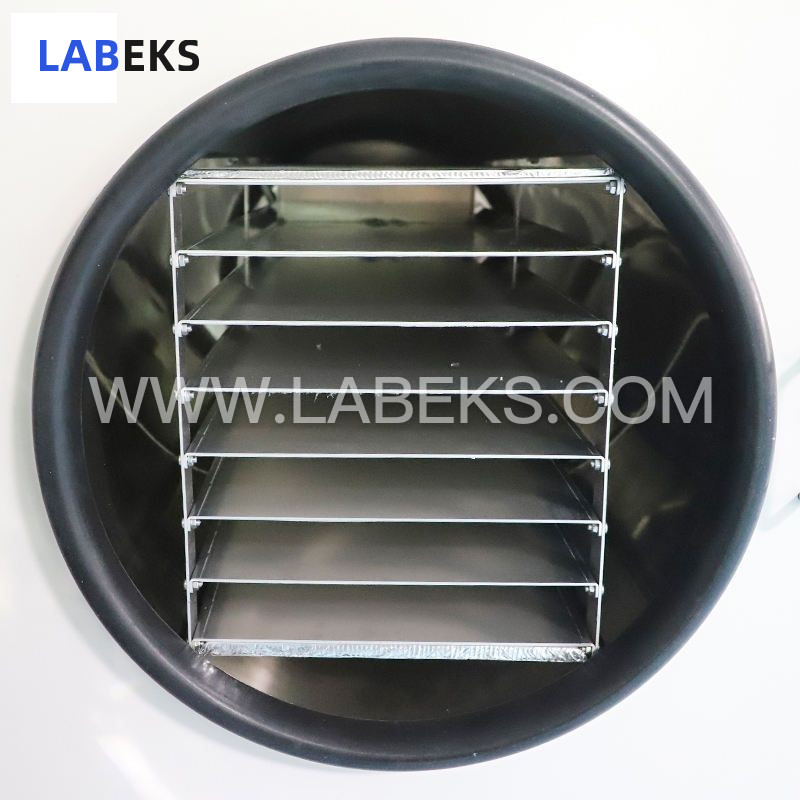

Number ofpartition layers | 7+1 |
Ultimate vacuum | ≤10pa |
Maximum IceCapacity/Water Catch | 15-20Kg |
Layer spacing | 42mm |
Heating method | Electric heating |
Power supply | 220V/50HZ（Optional110V/60HZ） |
Power | 2800w |
Tray size(W*L) | 265*785*30mm7pcs |
Overalldimensions (W*D*H) | 680*990*1180mm |
why choose us
Premium Quality with CE & ISO
We conduct 100% performance testing on every unit, ensuring its stable operation and superior performance in your application.
24/7 Expert Technical Support
Our senior engineers are on standby 24/7, ready to provide expert solutions at any time to minimize your operational downtime.
20+ Years R&D & Production
Our deep technical expertise is your solid guarantee for professional and reliable OEM/ODM services.
Trusted in 80+ Countries
Industry leaders and research institutions in over 80 countries and regions rely on our equipment for stable operation.
True Manufacturer, Factory-Direct Price
Bypass the middlemen to get our factory pricing and speak directly with our core engineers.
Rapid & Reliable Delivery
Our extensive in-stock inventory provides a solid guarantee for rapid and reliable global delivery.
