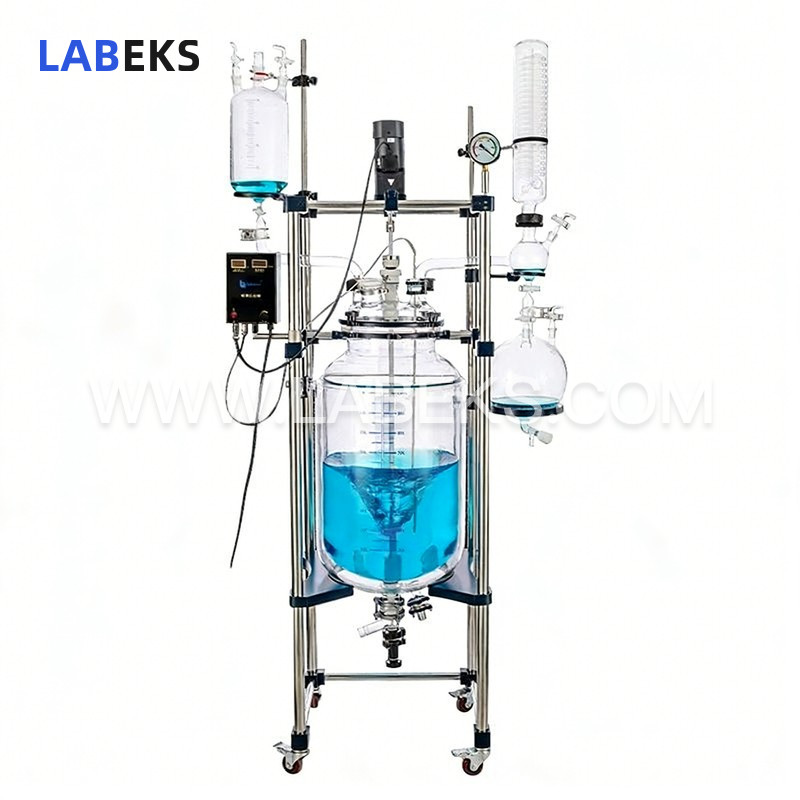

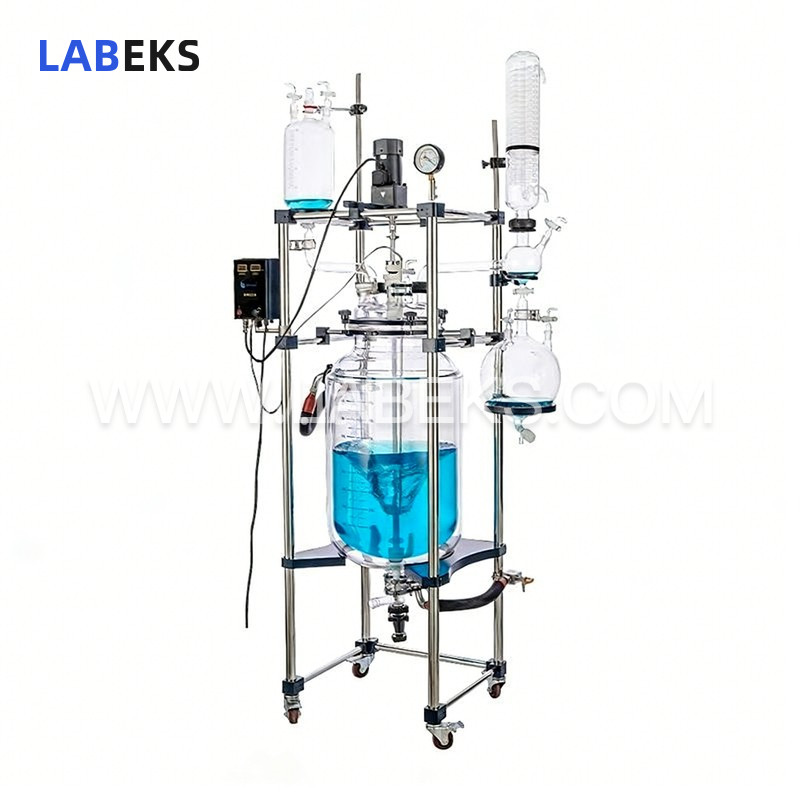

150L Jacketed Glass Reactor with -60°C to 250°C Operating Range & PTFE Vacuum Seal
Featuring a dual-glass structure, the Jacketed Glass Reactor enables mixing reactions of process media, while its interlayer can be filled with various cold or heat sources (frozen liquid, hot water, hot oil) to support circulating heating or cooling operations.
- modelLGR-150L
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Jacketed glass reaction vessels are engineered for the synthesis of diverse materials within temperature- and vacuum-controlled environments. Serving as an integrated solution, these vessels support extraction, refinement, distillation, and homogenization processes. Constructed with an inner vessel paired with one or two jackets, the reactor leverages temperature differentials generated by a chiller to adjust its internal operating conditions. Designed to function under vacuum, it is ideally suited for applications sensitive to atmospheric exposure. Available in glass construction, these reactors come in volumes spanning from 1L to 200L.
features
1. Offers a broad operating temperature range, spanning from -60°C to 250°C.
2. Features a solvent-resistant PTFE seal that delivers long-lasting durability and reliable performance, achieving a sealing vacuum level of -0.098Mpa.
3. The complete glassware assembly is constructed from GG3.3 borosilicate glass, providing excellent resistance to heat, cold, and corrosion.
4. Equipped with a PT100 temperature sensor paired with an LCD screen, enabling more precise temperature measurement and intuitive operation.
5. Durable stainless steel-reinforced PTFE stirrer with an anchored agitator, suitable for processing a variety of viscous materials. Multi-layer stirring blades are available as an optional upgrade.
6. Incorporates a frequency-controlled AC induction motor that maintains constant speed, operates brushlessly and spark-free, ensuring safe, stable, and continuous operation.
7. Sturdy heavy-duty stainless steel support frame with lockable casters, balancing easy mobility and stable placement. (The entire support structure and glass vessel are shipped pre-assembled.)
8. Bottom flange discharge port fitted with a PTFE valve, secured by aluminum flange components.
specifications
Model | LGR-150L | |
|---|---|---|
Kettle volume | 150L，innder diameter 550mm, outer diameter 600mm, inner length 786mm | |
Jacketed volume | about 35L | |
Voltage/frequency | 220V/50HZ | |
Stirring power | 750W1/5 | |
Stirring speed | 0-280r/min | |
Temperature accuracy | ±1℃ | |
Vacuum degree | 0.098Mpa (Negative pressure) | |
Cover diameter | Φ340mm | |
6ports of cover | Stirring port | Φ60mm flange port |
Condenser reflux port | 50# ball mill port | |
Adding dropwise elbow port | 50# ball mill port | |
Relief port | 34# standard port | |
Temperature measure port | Φ45mm flange port | |
Solid feeding port | Φ80mm flange port，inner diameter Φ60mm matched with PTFE cover | |
Stirringpaddle | Φ20*1300H(mm), leafing 240mm | |
Condenser size | Φ160*600H(mm), down with Φ60mmflange port | |
Condensation area | 0.95㎡ | |
Reflux elbow | upper with Φ60mm flange port，left with 50# ball mill plug，right with 24# standard portmatched with functional valve, down with 50# ball mill plug valve | |
Adding dropwise bottle | 5L,tubular, upper with 29# standardport matched with vent valve *2, 34# standard port matched with glass plug | |
Receiving bottle | 10L，upper with 50# ball mill port，24# standard port matched withvent valve*2, down with glass baiting valve | |
Relief valve | 34# standard plugvalve，vent nozzle (pogada connector),outer diameter 12mm | |
In and out circulation port of thesandwich | Φ45mm flange port matched withring flange, 6 points outside the wire adapter | |
Baiting port | Φ100mm flange，Φ65mm baiting port，inclined discharged port (pagodaconnector), Φ40mm，from floor 300mm | |
Vacuum suction nozzle | padoga connector,outer diameter12mm | |
In and out circulation nozzle ofcondenser coil | padoga connector,outer diameter15mm | |
Overall dimension (W*L*H) | 1280*850*2730mm | |
Net weight | 155kg | |
Packing dimension | 2160*740*840mm,1360*750*850mm, 2.21m³ | |
Packing weight | 271kg (159+112) | |
