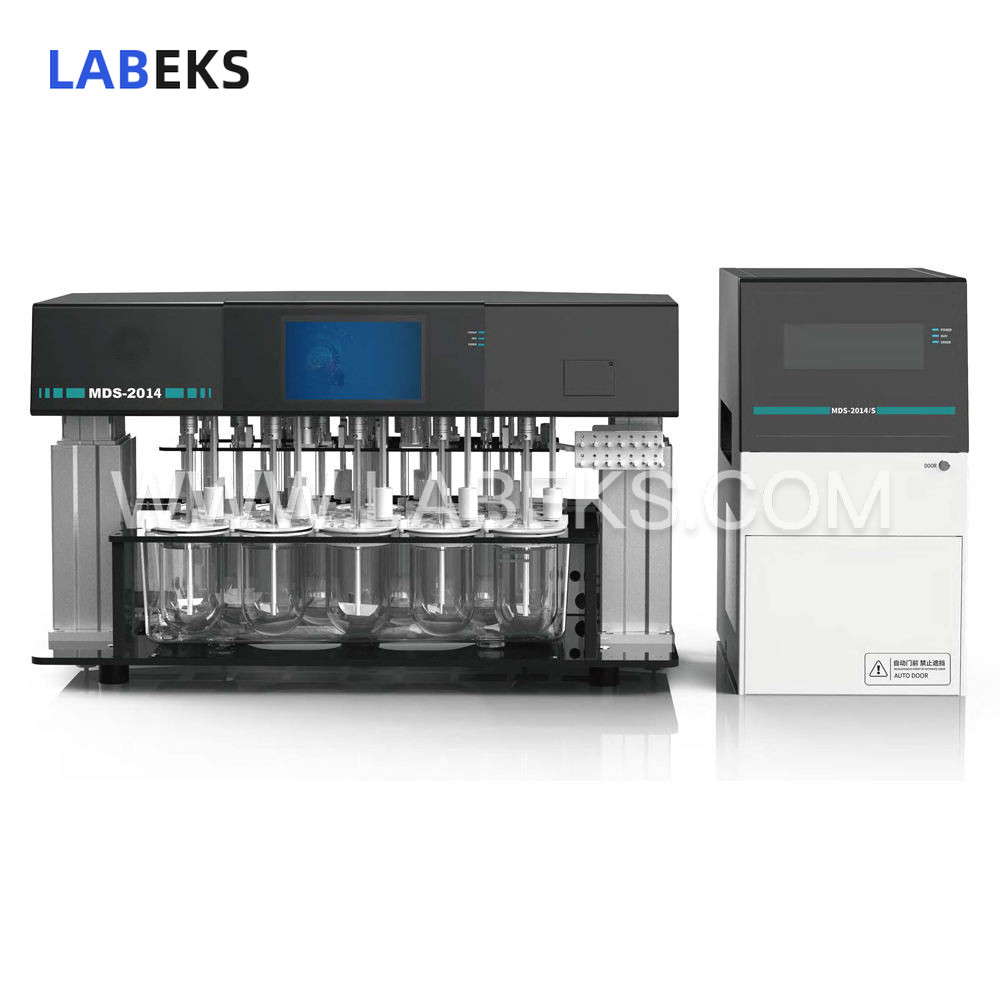

14 Cups Drug Dissolution Sampling System with ±0.2°C Temp Accuracy for Pharma, Chemical & Food Testing

1. Offers three tiers of administrative access privileges aligned with audit trail regulations, restricting unauthorized access and preventing unintended modifications to instrument configurations or test methods.

2. Equipped with 8 independent temperature probes for individual solvent temperature monitoring and real-time display across 8 dissolution cups; probes can be lifted during assays. Utilizing PID + fuzzy control technology, temperature control accuracy achieves ±0.2℃, with a temperature resolution of 0.1℃.

3. Featuring a 10-inch color touchscreen, the device enables straightforward setup, storage and execution of up to 100 test methods via an intuitive interface. A screen lock security function is included, with both Chinese and English language support.

4. Integrates an independently controlled heating circulation system that reduces vibration while optimizing lab bench space utilization. Its unattended scheduling function enables automatic constant-temperature water bath operation without manual supervision, cutting down on experimental turnaround time.

5. A built-in printer is included to generate real-time log records, with experimental process data available for auditing and querying. Log files can also be exported for review, though access requires the manufacturer’s dedicated software.

6. Offers storage capacity for up to 100 experimental methods, with one-click USB import/export functionality to eliminate the cumbersome process of transferring methods between devices.

7. Integrates light-sensitive illumination components and utilizes amber dissolution cups to facilitate photophobic dissolution experiments effectively.

Sampler Parts

1. Incorporates Germany-imported syringes to perform automatic rinsing, filling, waste draining, sampling, solution replenishment, and pipeline emptying, ensuring high sampling accuracy while minimizing residual solution in lines.

2. Utilizes imported micro-transparent PTFE pipelines with superior corrosion resistance and anti-absorption properties. It supports continuous sampling, dual-sample sampling, and automatic sample dilution, with pre-sampling automatic rinsing of pipelines and sampling pumps to uphold sampling precision.

3. Boasts an automatic test tube rack positioning and detection function. It automatically calculates sampling height and performs precise sampling at positions compliant with pharmacopoeial standards, adjusted based on solvent volume.

4. Features an automatic door mechanism enabling one-key access for sample rack entry and exit.

5. Includes a secondary filtration interface to ensure thorough solvent purification before sampling.

6. Offers one-click automatic cleaning of the liquid tank and pipelines post-experiment to eliminate cross-contamination risks.
