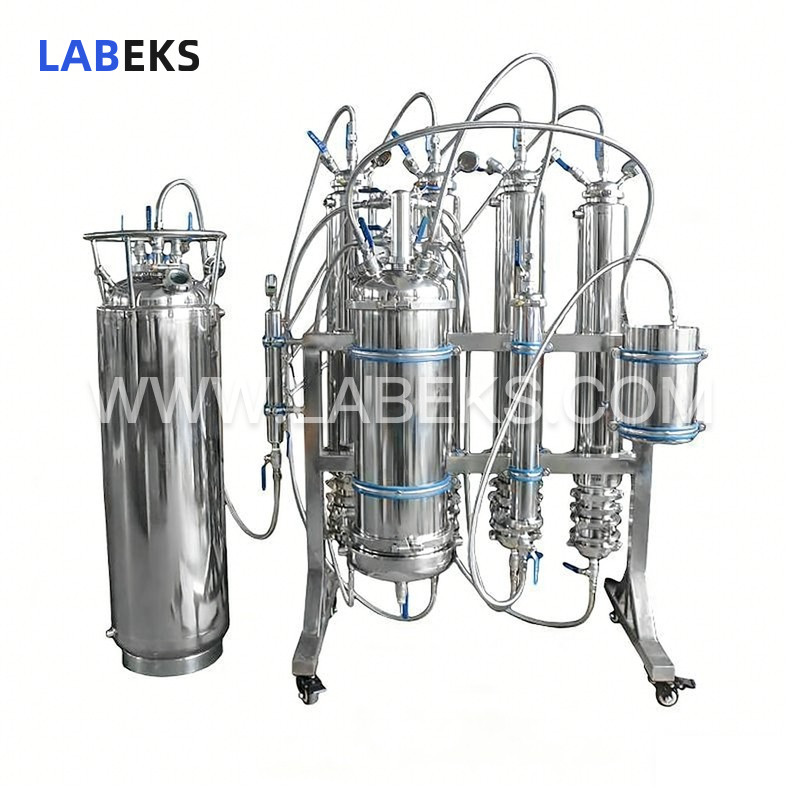

10LB Turnkey Closed Loop BHO Extraction System with Precise Control & Solvent Recovery
Ideal for botanical extraction, the closed loop BHO extraction system from LABEKS operates in a fully sealed, vacuumed environment to prevent solvent release into air. It collects oil-bearing solvent in its base, recovers solvents for reuse, and leverages temperature-induced pressure differences for passive migration, yielding purified extracted oil.
- modelLCLE-10
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Closed-loop BHO extraction systems are among the most widely utilized cannabis extraction tools on the market. Their solvent recovery capability and high extraction efficiency make them an environmentally friendly and sustainable processing solution.
System operating workflow: Load raw materials into the material column and soak them with ethanol or alternative solvents to extract target compounds. Transfer the resulting mixture to the next column for separation. Direct solvents to a dedicated column for recovery, while the purified extract is retained in the bottom container for user access. This closed-loop design enables solvent recycling for repeated use, delivering substantial cost savings and reduced environmental impact.
features
Enhanced operator safety is ensured by the system’s hermetic sealing and precise process controls, minimizing risks associated with solvent evaporation and leakage.
Enables precise regulation of temperature, pressure, and other critical operating parameters, guaranteeing accurate and repeatable extraction process outcomes.
Throughout the entire extraction cycle, solvents and target compounds remain enclosed within the closed-loop system, eliminating solvent volatilization and preventing external contamination of extracts.
Integrated solvent recovery system facilitates solvent recycling, cutting operational costs and reducing waste generation.
Scalable design accommodates applications ranging from small laboratory-scale trials to large-volume industrial production, with customizable system size and capacity to meet specific operational needs.
Versatile applications across pharmaceutical manufacturing, natural product extraction, chemical processing, and food science sectors.
specifications
Model | LCLE-10 |
|---|---|
Capacity | 10LB (customizable) |
Extractor tank | 12″x40″ single jacketed recoverytank with cooling coil and dip tube 10″x36″ Single jacketedcollection tank |
Splatter platter | 10″x6″ |
Max pressure | 145PSI |
Material column size | 4″X48″(can be customized) |
Filter dryer size | 3″X24″ |
Cooling coil size | 10″x10″ |
Body Material | 304 Stainless Steel |
Operating Temperature | -42℃~72℃ |
Surface treatment | Sanitary high mirror polish |
Connection method | High pressure clamp |
