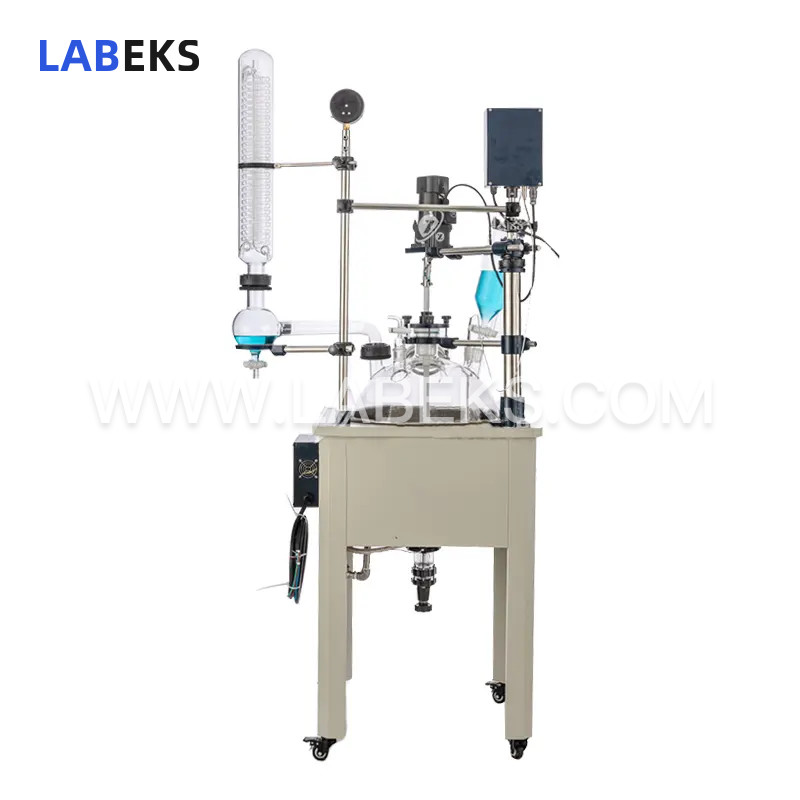

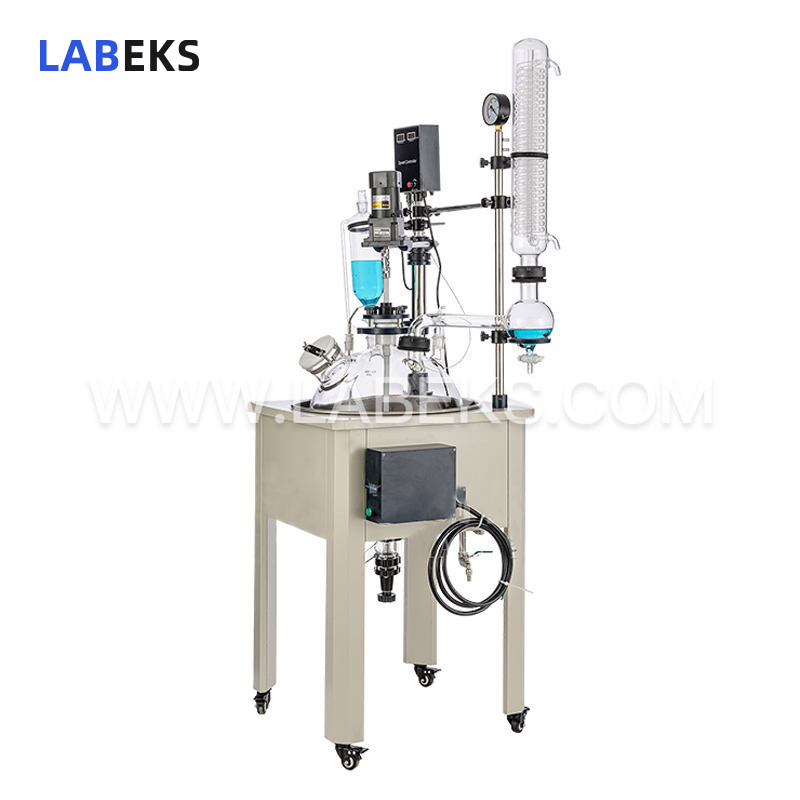

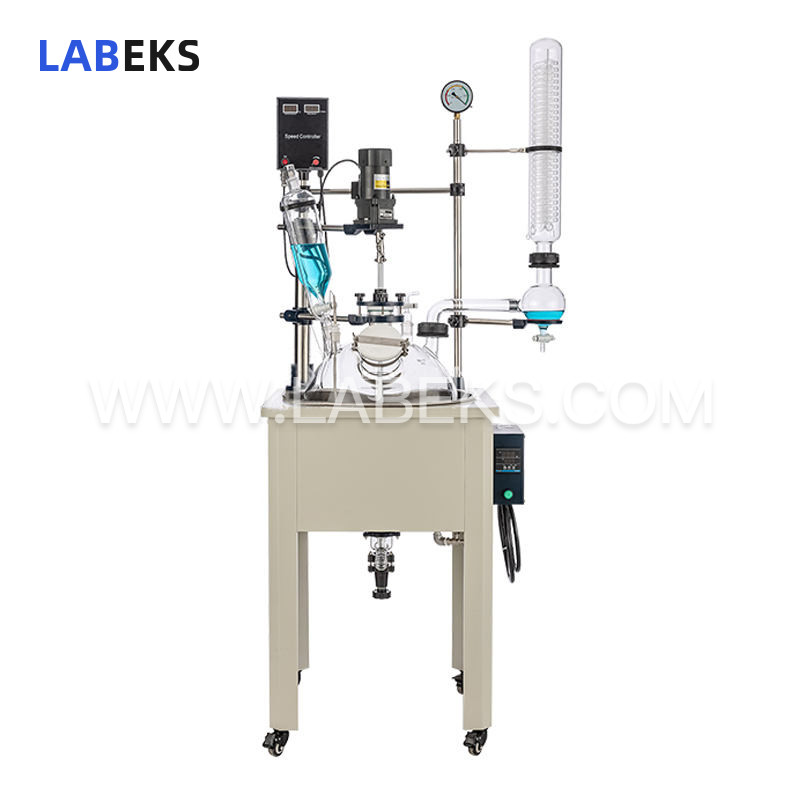

10L Single Layer Glass Reactor for Closed-System Chemical Synthesis
Engineered for constant-temperature biochemical and synthetic reactions, this single layer glass reactor integrates vacuum operation, distillation, reflux, stirring, and oil/water or heating mantle heating in a fully closed system to enable precise, controlled reaction processes.
- modelLGR-10F
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The inner chamber of this single layer glass reactor holds reaction solvents for stirring, with heating regulated via computer-controlled oil baths or electric heating systems. Operable under atmospheric pressure or vacuum conditions, it enables precise control over reaction solution reflux and distillation—making it an ideal apparatus for modern synthetic chemistry, biopharmaceuticals, and advanced material development, suitable for both laboratory preparation experiments and scaled production.
features
specifications
Model | LGR-10F | |
|---|---|---|
Kettle volume | 10L spherical | |
Voltage/frequency | 220V/50HZ | |
Stirring power | 90W，1/3 | |
Heating power | 3KW | |
Stirring speed | 0-450rpm/min | |
Kettletemperature range | -80℃to 250℃ | |
Bath temperaturerange | room temperatureto 180℃ | |
Temperatureaccuracy | ±1℃ | |
Vacuum degree | 0.098Mpa | |
Kettle size | Φ280mm | |
6 ports on cap | Stirring port | Φ80mm flangeport |
Condenser refluxport | 50# ball millport | |
Constantpressure funnel port | 34# standardport | |
Relief port | 34# standardport | |
Temperaturemeasuring port | Φ45 flange port | |
Solid feedingport | Φ125mm flangeport matched with PTFE cover | |
Stirringpaddle | Φ17*600H(mm),leafing 150mm | |
Condenser size | Φ100*600H(mm)，down with Φ60 flange port | |
Condenser area | 0.4㎡ | |
Reflux elbow | upper with Φ60flange port，left with 50# ball mill plug | |
Constantpressure funnel | 1L，upper with 29# standard port match with glass plug，down with 34# standard plug | |
Relief valve | 34# standardplug valve, vent nozzle (pagoda connector), outer diameter 12mm | |
Baiting valve | Φ80 flange port，Φ33mm baiting port，inclineddischarging port (pagoda connector)Φ34mm,from the floor 350mm | |
Vacuum suctionnozzle | padogaconnector,outer diameter 12mm | |
In and outcirculation nozzle of condenser coil | padogaconnector,outer diameter 15mm | |
Pot braverydimension | Φ350*220H(mm) | |
Overalldimension (W*L*H) | 710*440*1900mm | |
Net weight | 42kg | |
Packingdimension | 1170*590*840mm,0.58m³ | |
Packing weight | 81kg | |
