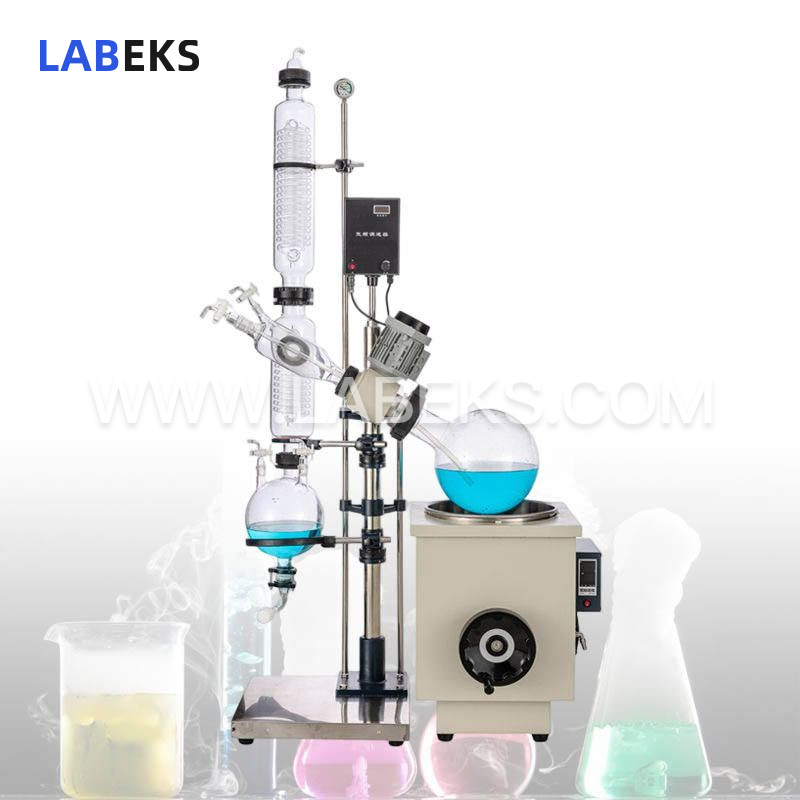

10L Rotary Evaporator for Efficient Solvent Removal in Chemical Labs
Designed for efficient, gentle solvent removal from samples, this rotary evaporator is an essential device in chemical laboratories, enabling controlled evaporation and recovery under optimized vacuum and heating conditions.
- modelLRE-1002
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

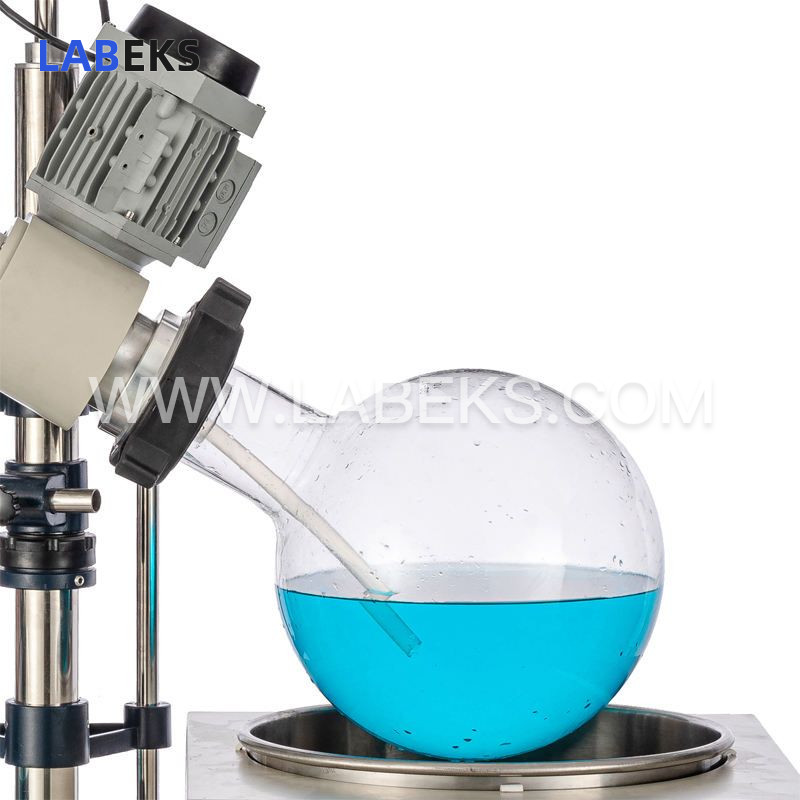

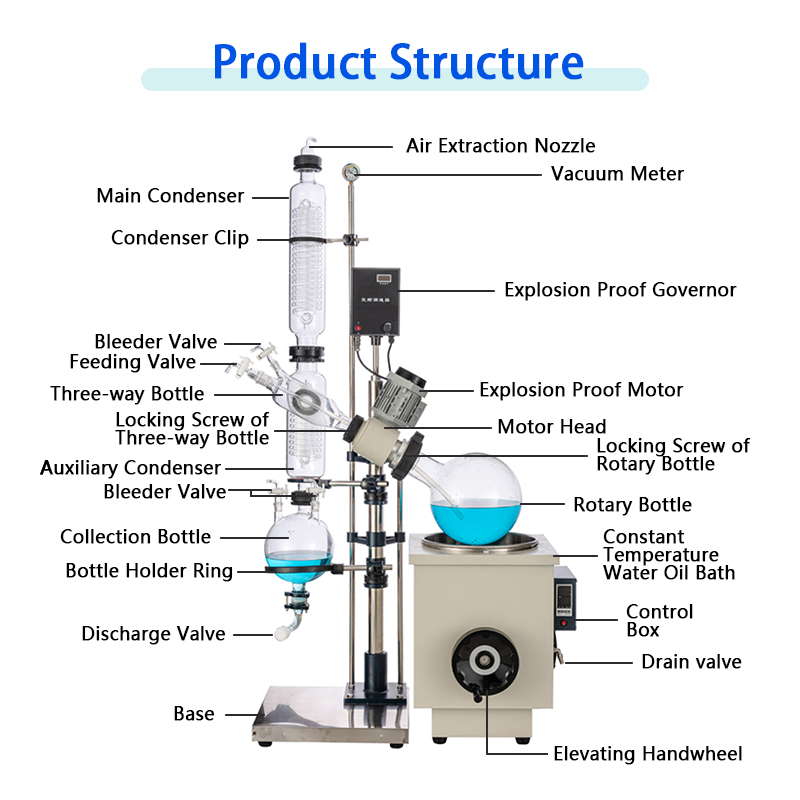

This rotary evaporator features a stepless speed-controlled glass rotating flask that spins at a constant rate, causing materials to form a large, uniform film on the flask’s inner wall. An intelligent constant-temperature water bath provides uniform heating to the rotating flask; under vacuum conditions, rapid evaporation occurs, with vapors cooled by a high-efficiency glass condenser and collected in the receiving flask.
features

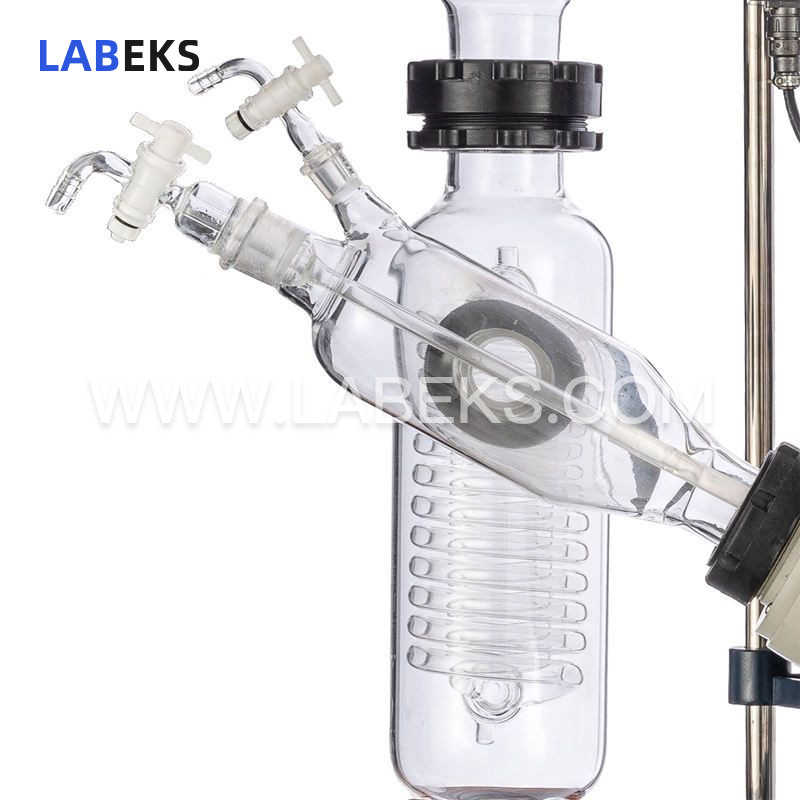

Integrates primary and secondary high-efficiency double condensers to guarantee exceptional solvent recovery rates.
Equipped with a PTFE + fluorine rubber seal cover to sustain a high vacuum level, enabling effective gas-liquid separation with no backflow.
The mechanical structure primarily utilizes stainless steel and aluminum alloy components, with all glass parts constructed from high temperature resistant and high boron glass.
Water bath features digital, continuous temperature control for precise heating adjustment.

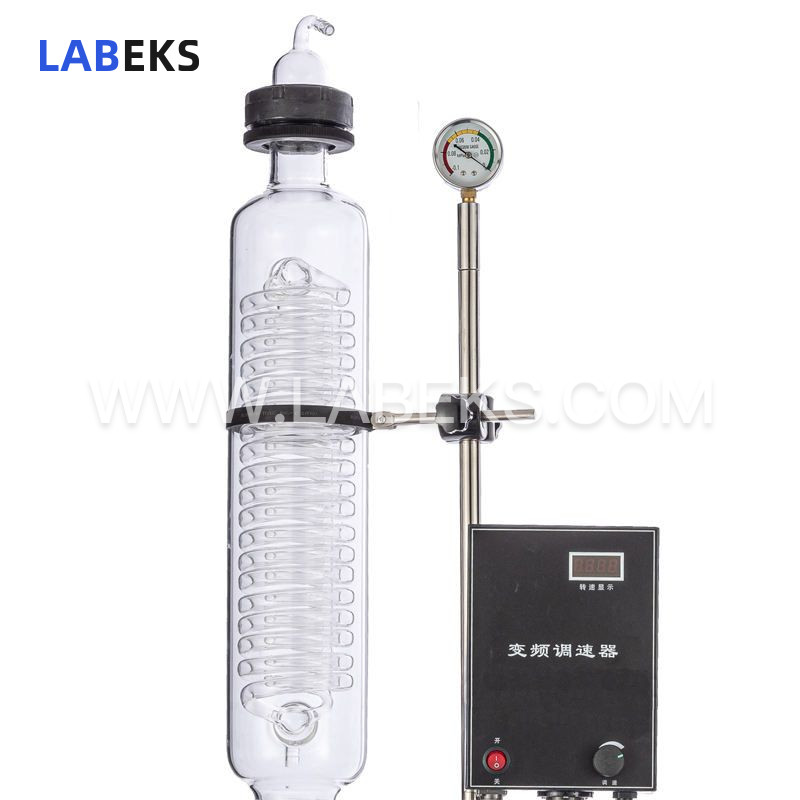

Includes a vacuum gauge to enable optimization of vacuum levels, making the unit suitable for processing low-boiling-point materials.
Rotating flask uses a nut connection design for easy installation and removal.

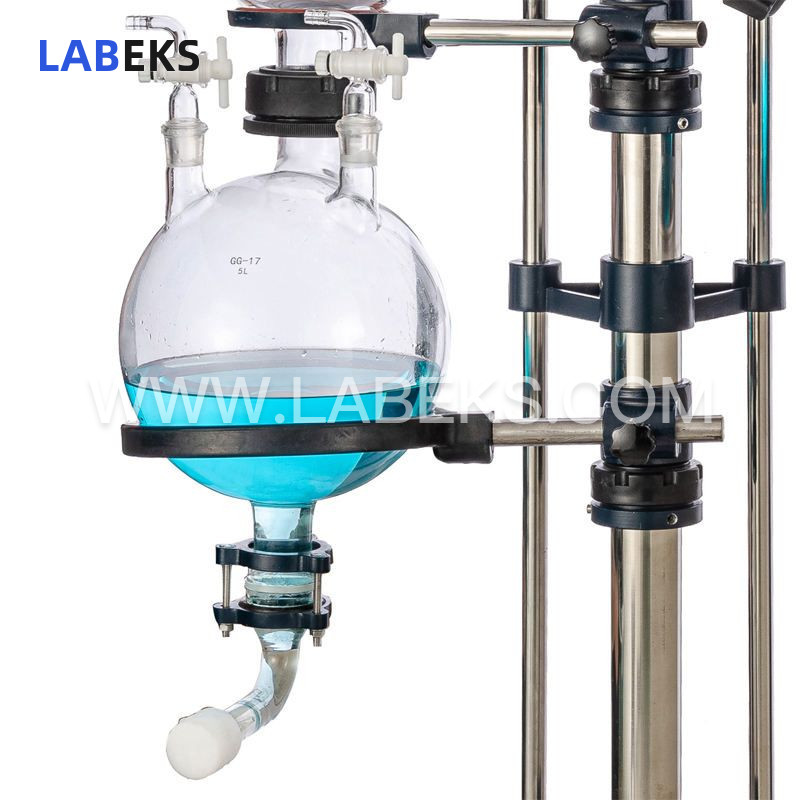

A tap valve at the bottom of the receiving flask allows for fast, convenient solvent recovery.
Supports continuous feeding operations to streamline sample processing workflows.
Adopts imported electrical core modules to ensure reliable, long-term performance.
Boasts a rational structural design with specialized materials for enhanced durability and usability.
Uses internationally standardized rubber seals, simplifying user procurement and replacement of components.
specifications
Model | LRE-1002 |
|---|---|
Voltage/Frequency | 220V/50HZ |
Whole power | 3120W |
Rotary power | 120W |
Heating power | 3000W |
Vacuum degree | 0.0095Mpa |
Rotary flask volume | 10L Φ280mm/Φ95 flange port |
Receiving flask volume | 5L Φ230mm/ upper Φ60 flange*24# standardport*down Φ50 flange |
Rotary speed | 0-120rpm/min |
Temp.cotrolling range | room temperature -180℃ |
Temp. accuracy | ±1℃ |
Flask lifting distance | 180mm |
Condenser size | Themain condensor Φ120*620H(mm) ,upper Φ60 flange*down Φ80flange The assisted condensor Φ135*475H(mm) ,upperΦ80 flange* down Φ60 flange*sideΦ60flange |
Condensation area | 0.51(0.33+0.18)㎡ |
Air guide bottle | left with Φ34 standard port, upper with 19# standardport,side with Φ60 flange port ,right with Φ60 flangeport |
Charging valve | 34# standard plug valve, feed nozzle (pagoda-shapeconnectors) outer diameter 12mm |
Multi-function port | 19# standard plug valve, glass nozzle(pagoda-shape connectors) outer diameter12mm |
Vacuum suction nozzle | Φ60 flange glass exhaustor, suction nozzle(pagoda-shapeconnectors) outer diameter 10mm |
Condensing coil in and out circuation nozzle | Pagoda-shape connectors, outer diameter 16mm |
Vent valve | 24#standard plug valve*2 vent nozzle(pagoda-shapeconnectors) outerdiameter 12mm |
Baiting valve | Φ50 flange port, side discharging nozzle(pagoda-shapeconnectors), outer diameter 20mm, 200mm from the floor |
Pot bravery size | Φ350*220H（mm)about21L |
Overall dimensions (W*L*H) | 930*560*1910mm |
Net weight | 74(49+25)kg |
Packing dimensions | 1320*780*755mm, 0.78m³ |
Packing weight | 107kg |
