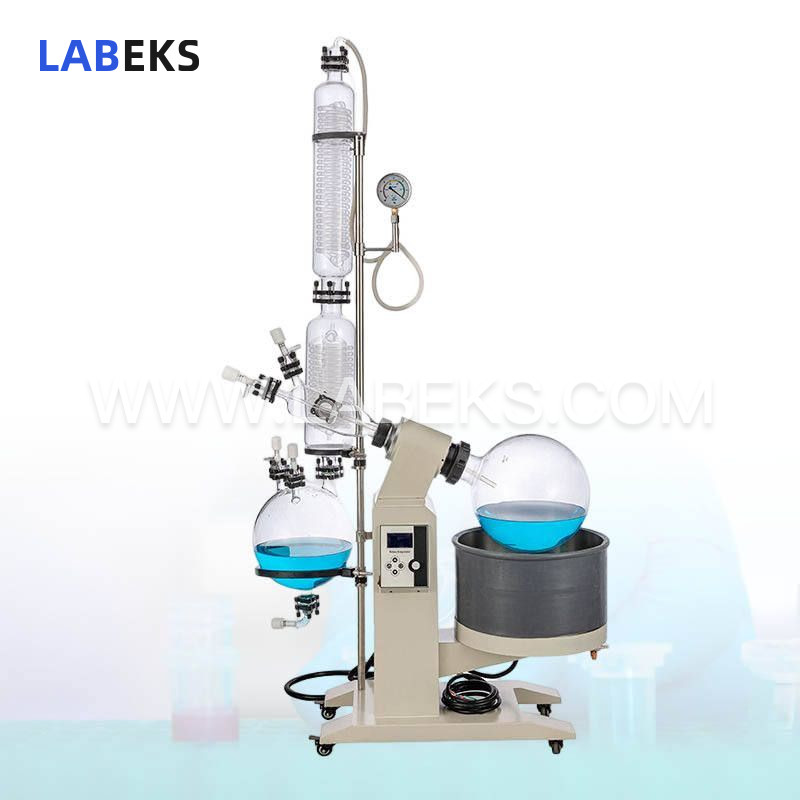

10L Rotary Evaporator for Efficient Solvent Removal in Chemical Laboratories
Designed for chemical laboratory environments, the rotary evaporator is specialized equipment that enables efficient, gentle removal of solvents from samples via controlled vacuum evaporation processes.
- modelLRE-10
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

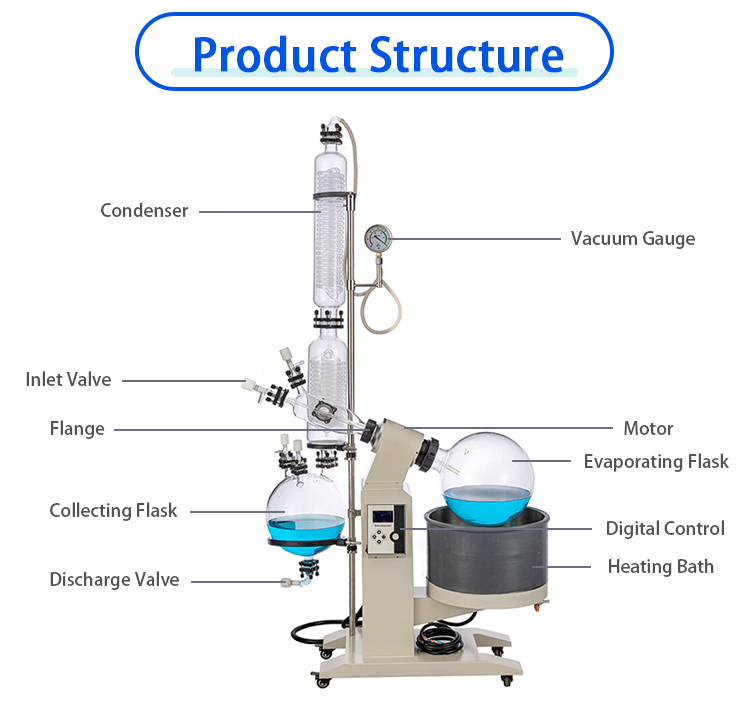

This rotary evaporator employs a stepless speed-controlled glass rotating flask that spins at a constant rate, causing materials to form a large, uniform film along the flask’s inner wall. Under vacuum conditions, an intelligent constant-temperature water bath delivers uniform heating to enable high-speed evaporation; vapors are then cooled by an efficient glass condenser and collected in the receiving flask.
features
Over-temperature safety protection: the system automatically powers off if the actual temperature exceeds the set value by 5 ℃.
Anti-dry heating protection: the unit shuts down automatically when the water level in the heating bath drops below the heating element.
Power recovery protection: after an unexpected power outage and subsequent restart, the machine automatically suspends heating operations.

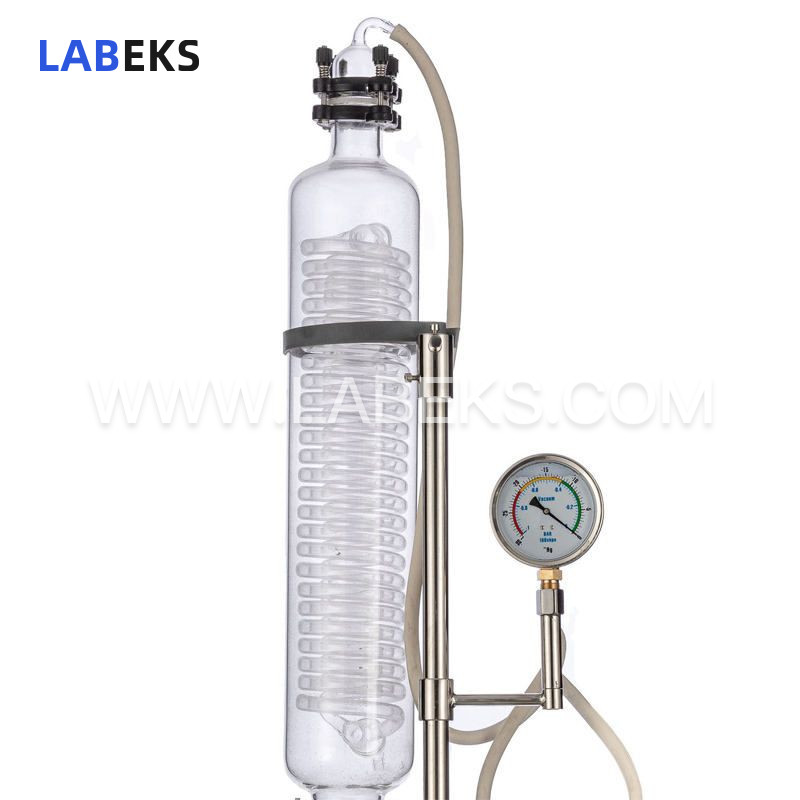

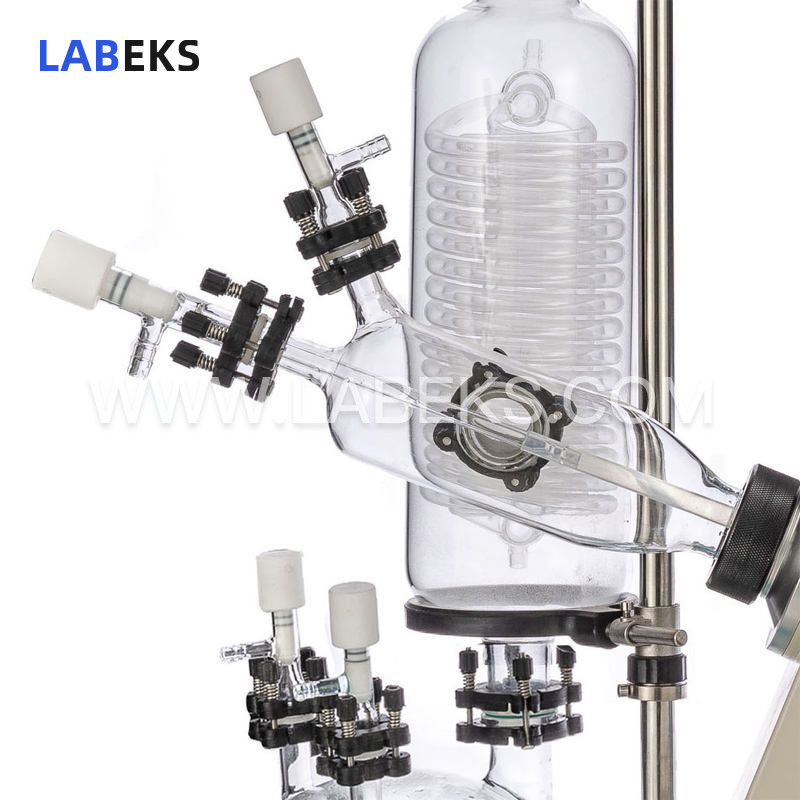

Vertical three-tier serpentine coil condenser, paired with main and auxiliary dual condensers, guarantees high solvent recovery rates.
Hybrid sealing system featuring imported fluororubber and PTFE components, delivering exceptional corrosion resistance, extended service life, and sustained high vacuum levels.
DC brushless motor ensures stable rotation, spark-free operation, and gradual torque ramp-up.

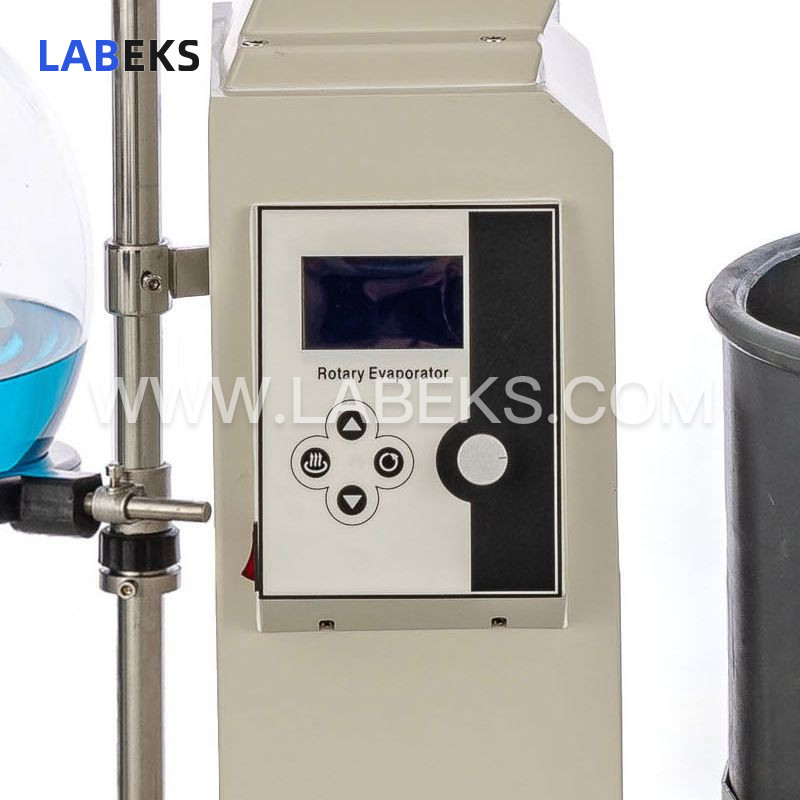

Full-screen LCD display offers dual digital readouts for temperature and rotation speed; bath temperature is precisely controlled via a PT100 sensor for fast, accurate temperature transmission.
All valves feature the latest single-handle wheel design, providing excellent sealing performance and simplified, intuitive operation.
Check valve-controlled continuous discharge allows vacuum switching to be performed while the machine remains in operation.
Supports continuous feeding operations via a valve-type feeding valve equipped with PTFE tubing.

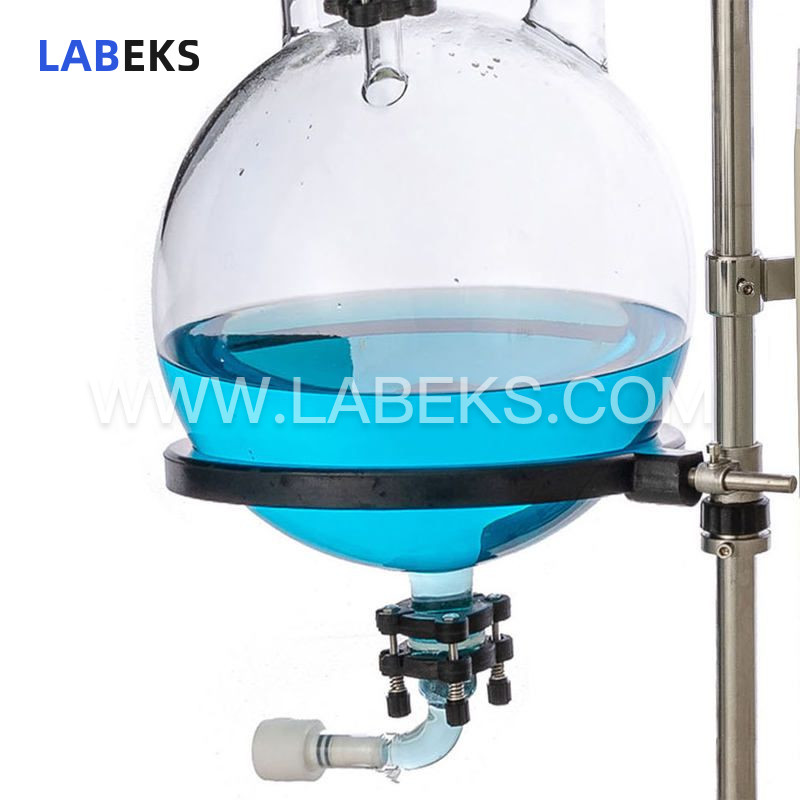

The receiving flask is fitted with a discharge valve to simplify collection and removal of evaporated extracts.
Electric bath lifting system utilizes a deceleration motor to ensure smooth, stable vertical movement.
The main frame is constructed from stainless steel and aluminum alloy, featuring an optimized structural design for superior load-bearing capacity.
All glass components are manufactured from GG-17 high borosilicate glass, offering outstanding high-temperature tolerance and corrosion resistance.
The bath liner is made of premium 304 stainless steel for corrosion resistance and durability; its outer silicone coating enhances safety during high-temperature operations.
Vacuum pressure gauge provides real-time vacuum level monitoring; the oil-filled gauge features anti-vibration properties for stable readings.
Power operations are managed via a microcomputer-controlled switch.
specifications
| Model | LRE-10 |
|---|---|
| Voltage/Frequency | 220V/50HZ |
| Whole power | 3100W |
| Rotary power | 60W 1/5 |
| Lifting power | 40W 1/12.5 |
| Heating power | 3000W |
| Vacuum degree | 0.0095Mpa |

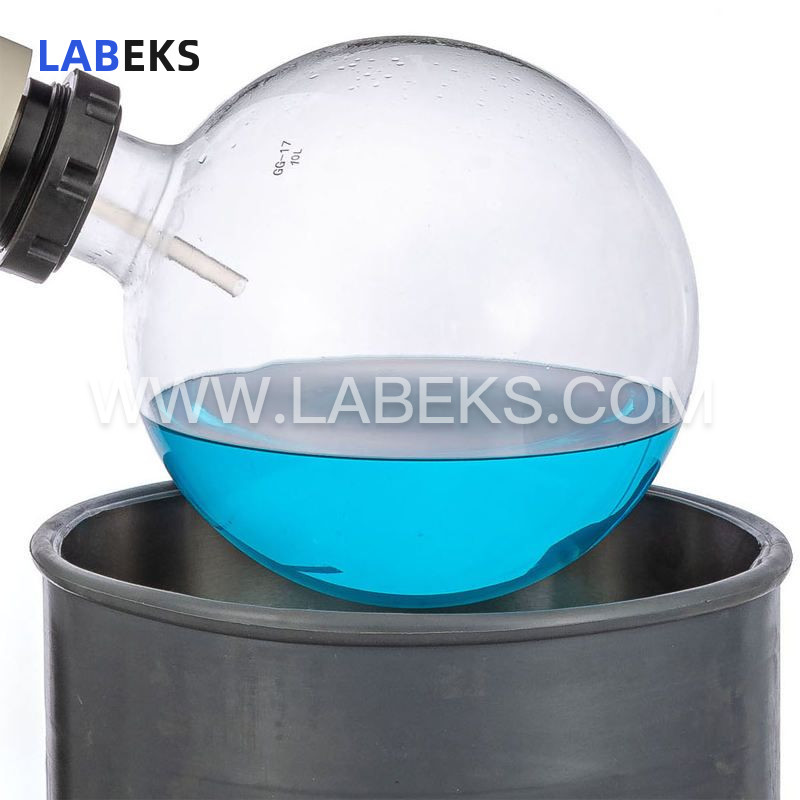

| Rotary flask volume | 10L,Φ280mm/Φ95Flangeport |
| Receiving flask volume | 5L,Φ230mm/ upperwithΦ60 *Φ35 flange port*2*down with Φ50 flange port |
| Rotary speed | 0-120rpm/min |
| Temp.cotrolling range | room temperature -180℃ |
| Temp. accuracy | ±1℃ |
| Flask lifting distance | 190mm |
| Condenser size | The main condensor Φ120*620H(mm)upper with Φ60 flange port * down with Φ80flange portThe assisted condensor Φ135*475H(mm)upper with Φ80 flange port* down withΦ60 flange port*side with Φ60 flange port |
| Condensation area | 0.51(0.33+0.18)㎡ |
| Air guide bottle | Left with Φ35 flange，upper with Φ35flange，side withΦ60 flange，right with Φ60 flange |
| Charging valve | Φ35 flange，glass+PTFE valve，feed nozzle (pagoda-shape connectors) outer diameter 12mm |
| Multi-function port | Φ35 flange，glass+PTFE valve, glass nozzle (pagoda-shape connectors)outer diameter 12mm |
| Vacuum suction nozzle | Φ60 flange glass exhaustor, suction nozzle (pagoda-shapeconnectors), outer diameter 10mm |
| Condensing coil in and out circuation nozzle | Pagoda-shape connectors, outer diameter 16mm |
| Vent valve | Φ35 flange port*2, glass+PTFE valve, vent nozzle(pagoda-shape connectors), outer diameter 12mm |
| Baiting valve | Φ50 flange port, side discharging nozzle(pagoda-shapeconnectors), outer diameter 20mm, 210mm from the floor |
| Pot bravery size | Φ350*220H(mm) about 21L |
| Overall dimensions (W*L*H) | 1130*470*1940mm |
| Net weight | 64kg |
| Packing dimensions | 980*520*1190 ,0.61m³ |
| Packing weight | 101kg |
