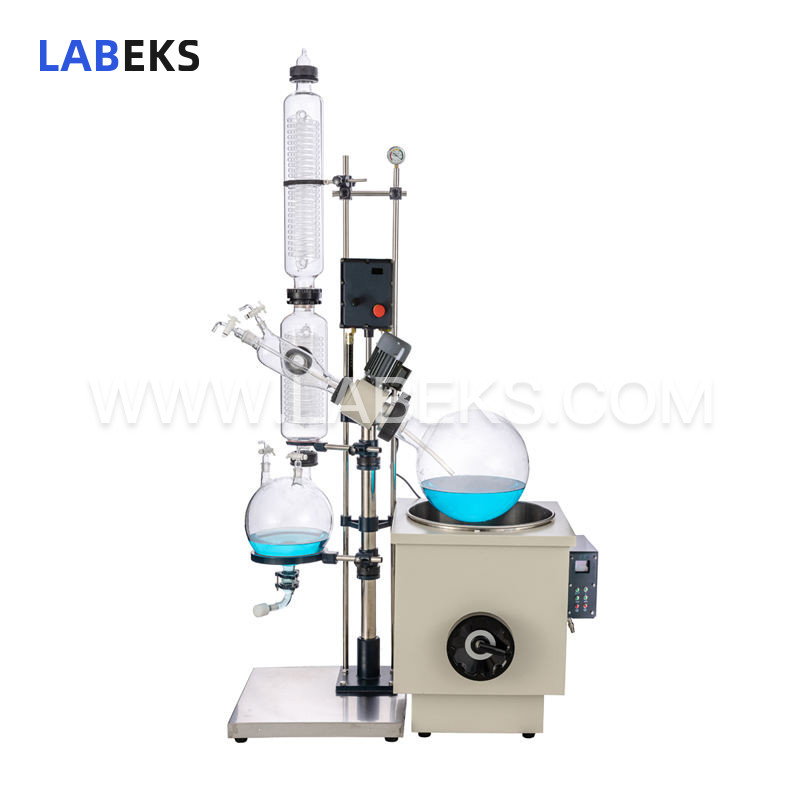

10L-50L Explosion Proof Rotary Evaporator: Efficient Solvent Recovery for Pharmaceutical & Chemical Sectors
For pharmaceutical, chemical and biopharmaceutical operations, the rotary evaporator with explosion-proof design enables efficient concentration, crystallization, drying, separation and solvent recovery, making it ideal for heat-sensitive biological products prone to decomposition or denaturation.
- modelLRE-1002EX/LRE-2002EX/LRE-5002EX
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Engineered for pharmaceutical, chemical and biopharmaceutical industries, the explosion-proof rotary evaporator supports concentration, crystallization, drying, separation and solvent recovery processes. Operating under vacuum, the rotating flask is heated at a constant speed, causing materials to form a large-area film on the flask wall for highly efficient evaporation. Solvent vapor is cooled by a high-performance glass condenser and collected in the receiving flask, significantly boosting evaporation efficiency. It is particularly suitable for the concentration and purification of biological products that are easily decomposed and denatured at high temperatures.

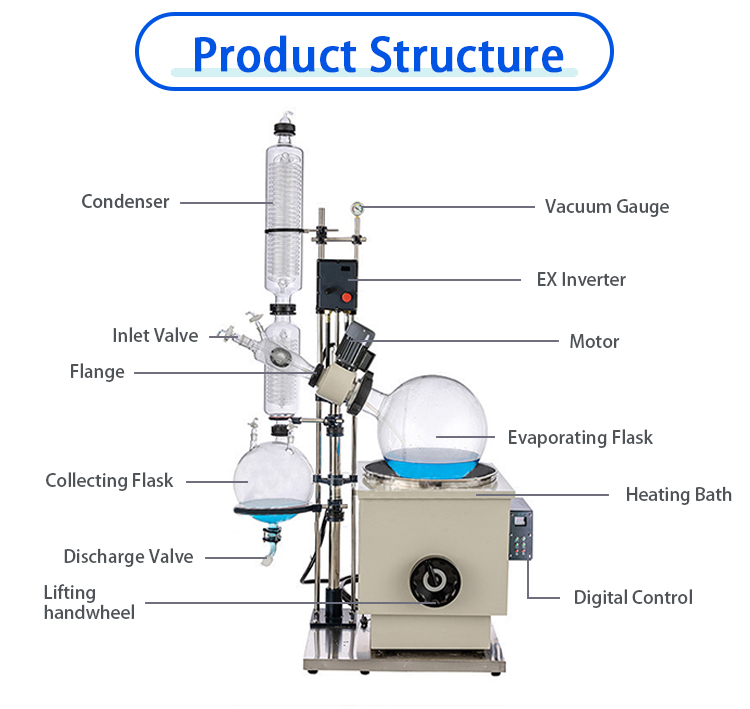

features
1. Comprehensive explosion-proof configuration: Explosion-proof electrical components, variable frequency speed control housed in an aluminum explosion-proof enclosure, control panel in an aluminum explosion-proof casing, and explosion-proof tubing for cable protection.
2. All material-contacting parts are made of high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene, ensuring stable performance and low chemical reactivity with processed materials.
3. High-performance sealing system combines polytetrafluoroethylene and fluororubber to maintain consistent high vacuum levels during operation.
4. Analog pointer vacuum pressure gauge provides real-time vacuum level monitoring for intuitive process visibility.
5. Integrated upright double-layer serpentine coil condenser ensures high solvent recovery rates.
6. Variable frequency speed regulation with explosion-proof switch; precise speed adjustment via knob, with digital display of rotation speed.
7. Constant temperature bath features digital temperature display, K-type sensor and stainless steel probe for fast, accurate temperature transmission.
8. Main support frame uses cold-rolled plate with anti-corrosion coating plus aluminum alloy components, offering strong anti-corrosion properties; the stainless steel bath pot delivers a compact, durable and aesthetically pleasing structure.
9. Bath pot height adjustment via handwheel for simple, ergonomic operation.
10. Piston feeding valve with PTFE-lengthened sleeve enables continuous feeding into the evaporation flask under vacuum, enhancing user convenience.
specifications
Model | LRE-1002EX | LRE-2002EX | LRE-5002EX |
|---|---|---|---|
Voltage/Frequency | 220V/50HZ | 220V/50HZ | Rotation 220V/50HZ;Heating pot 380V/50HZ |
Whole power | 3120W | 5120W | 8180W |
Rotary power | EX120W | EX120W | EX180W |
Heating power | 3000W | 5000W | 8000W |
Vacuum degree | 0.0095Mpa | 0.0095Mpa | 0.0095Mpa |
Rotary flask volume | 10L Φ280mm/Φ95 flange port | 20L Φ355mm/Φ95 flange port | 50L Φ470mm/Φ125 flange port |
Receiving flask volume | 5L Φ230mm/ upper with Φ60 flange port*24# standard port* downwith Φ50 flange port | 10L Φ280mm/ upper with Φ60 flange port *24# standard port*down with Φ50 flange port | 20L Φ355mm/ upper with Φ60 flange port *24# standard port*down with tΦ50 flange port |
Rotary speed | 0-120rpm/min | 0-120rpm/min | 0-120rpm/min |
Temp.cotrolling range | room temperature -180℃ | room temperature -180℃ | room temperature -180℃ |
Temp. accuracy | ±1℃ | ±1℃ | ±1℃ |
Flask lifting distance | 180mm | 180mm | 180mm |
Condenser size | The main condensor Φ120*620H(mm) ,upper with Φ60 flange port*down with Φ80 flange portThe assisted condensor Φ135*475H(mm) , upper withΦ80 standard port * down with Φ60 flangeport* side with Φ60 flange port | The main condensor Φ130*700H(mm) , upper with Φ60 flangeprot* down with Φ80 flange portThe assited condensor Φ160*530H(mm) ,upper with Φ80 flange port * down withΦ60 flange port* side with Φ60 flange port | The main condensor Φ160*835H(mm) ,upper with Φ60 flange port*down with Φ80 flange portThe assisted condensor Φ160*530H(mm) ,upper with Φ80 flange port* down withΦ60 flange port*side with Φ60 flange port |
Condensation area | 0.51(0.33+0.18)㎡ | 0.95(0.46+0.49)㎡ | 1.44(0.95+0.49)㎡ |
Air guide bottle | left with Φ34 standar port , upper with 19# standard port,side with Φ60 flange port, right with Φ60 flange port | left with Φ34 standar port , upper with 19# standard port,side with Φ60 flange port, right with Φ60 flange port | left with Φ40 standard port, upper with 19# standard port,side with Φ60 flange port, right with Φ70 flange port |
Charging valve | 34# standard plug valve, feed nozzle ( Pagoda-shapeconnectors), outer diameter 12mm | 34# standard plug valve, feed nozzle ( Pagoda-shapeconnectors), outer diameter 12mm | 40# standard plug valve, feed nozzle ( Pagoda-shapeconnectors), outer diameter 12mm |
Multi-function port | 19# standard plug valve, glass nozzle (Pagoda-shapeconnectors), outer diameter 12mm | 19# standard plug valve, glass nozzle (Pagoda-shapeconnectors), outer diameter 12mm | 19# standard plug valve, glass nozzle (Pagoda-shapeconnectors), outer diameter 12mm |
Vacuum suction nozzle | Φ60 flange glass exhaustor, suction nozzle (Pagoda-shape connectors),outer diameter 10mm | Φ60 flange glass exhaustor, suction nozzle (Pagoda-shapeconnectors), outer diameter 10mm | Φ60 flange glass exhaustor, suction nozzle (Pagoda-shapeconnectors), outer diameter 10mm |
Condensing coil in and out circuation nozzle | Pagoda-shape connectors, outer diameter 16mm | Pagoda-shape connectors, outer diameter 16mm | Pagoda-shape connectors, outer diameter 16mm |
Vent valve | 24# standard plug valve*2 vent nozzle(Pagoda-shapeconnectors), outer diameter 12mm | 24# standard plug valve*2 vent nozzle(Pagoda-shapeconnectors), outer diameter 12mm | 24# standard plug valve*2 vent nozzle(Pagoda-shapeconnectors), outer diameter 12mm |
Baiting valve | Φ50 flange port，Side discharging nozzle (pagoda-shape connectors), outerdiameter 20mm, 200 from the floor | Φ50 flange port，Side discharging nozzle (pagoda-shape connectors), outerdiameter 20mm, 200 from the floor | Φ50 flange port，Side discharging nozzle (pagoda-shape connectors), outerdiameter 20mm, 320 from the floor |
Pot bravery size | Φ350*220H（mm)about 21L | Φ450*260H（mm)about 41L | Φ550*320H（mm) about 76L |
Overall dimensions (W*L*H) | 930*560*1910mm | 1000*600*2130mm | 1330*730*2340mm |
Net weight | 83kg(52.5+30.5) | 97kg(60.5+36.5) | 128kg(85.5+42.5) |
Packing dimensions | 1320*780*755mm, 0.78m³ | 1350*670*720mm; 680*680*790mm,1.02m³ | 1420*820*720mm; 830*730*910mm,1.39m³ |
Packing weight | 116kg | 143kg（88+55） | 195kg(103+92) |
