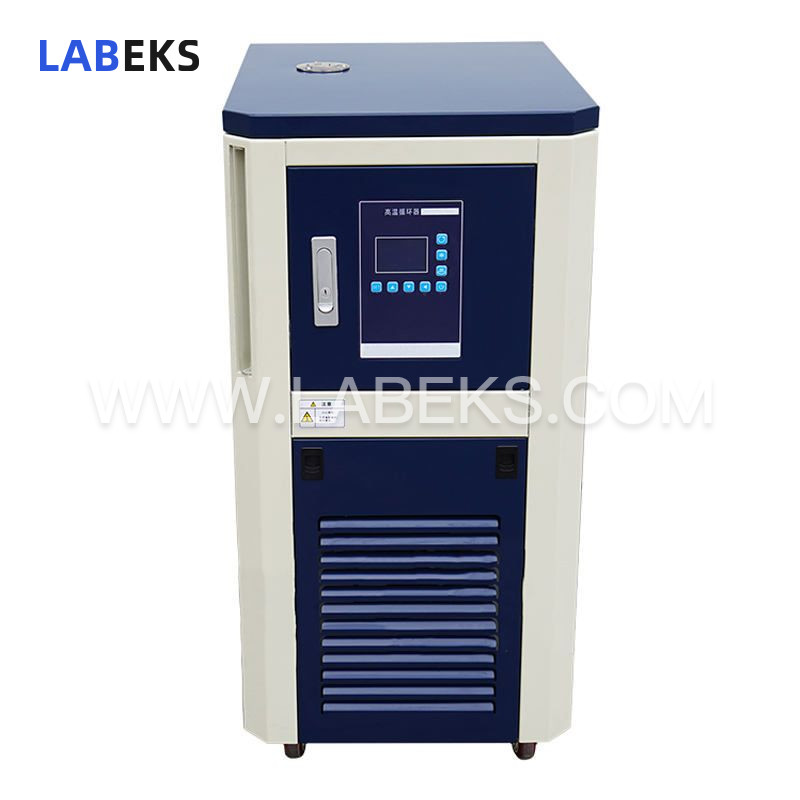

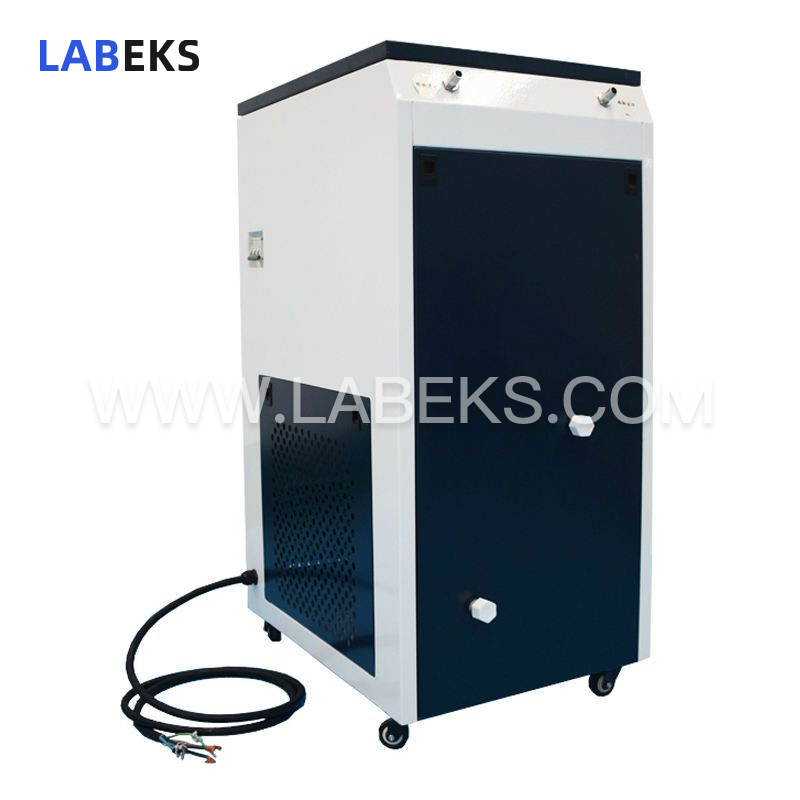

10L 20L Closed Loop Heating Circulator with 200℃ Max & Precise PID Control
Ideal for heating reactor setups in pharmaceutical, chemical, and petrochemical industries, the closed loop heating circulator uses electric heating and high-temperature circulating fluid to deliver consistent, reliable thermal support for critical processes.
- modelLMGY-10/20
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This closed high-temperature circulator operates via direct heat conduction technology. With heating elements integrated directly into the compact plate groove, cold water or oil flows directly over the element surfaces, enabling rapid heating of the bath fluid and delivering higher-temperature circulating media. Note that this unit serves as a dedicated heat source for compatible heating equipment and is not designed for standalone operation.
features
1. Integrates PID control technology for exceptional temperature control accuracy, alongside intuitive, user-friendly operation.
2. Constructed with a stainless steel circulation system that delivers superior resistance to corrosion, rust, and high-temperature fluid contamination.
3. Electric heating components are sourced from specialized manufacturers, guaranteeing long-term reliability and extended service life.
4. Equipped with a circulating pump that transfers internal heat transfer fluid to external equipment for targeted heating applications.
5. Utilizes a closed-loop refrigerant circulation system that significantly extends the service life of heat transfer oil.
6. Features an over-temperature alarm and protection mechanism to safeguard both the unit and connected equipment.
7. Incorporates an exhaust valve for easy system filling; note that this valve must remain closed during operation.
8. Designed for straightforward operation and supports uninterrupted continuous working.
specifications
Model | LMGY-10/20 |
|---|---|
Heating temperature | 200℃ |
Voltage frequency | 220V/50HZ(Can be customized) |
Operating temperature range | Room temperature～200℃ |
Ambient temperature | 5℃～40℃ |
Filling amount of bath liquid | 10L |
Heating power | 3KW |
Overall size(L*W*H) | 580× 460×805mm |
Optimal environmental humidity | ≤60% |
