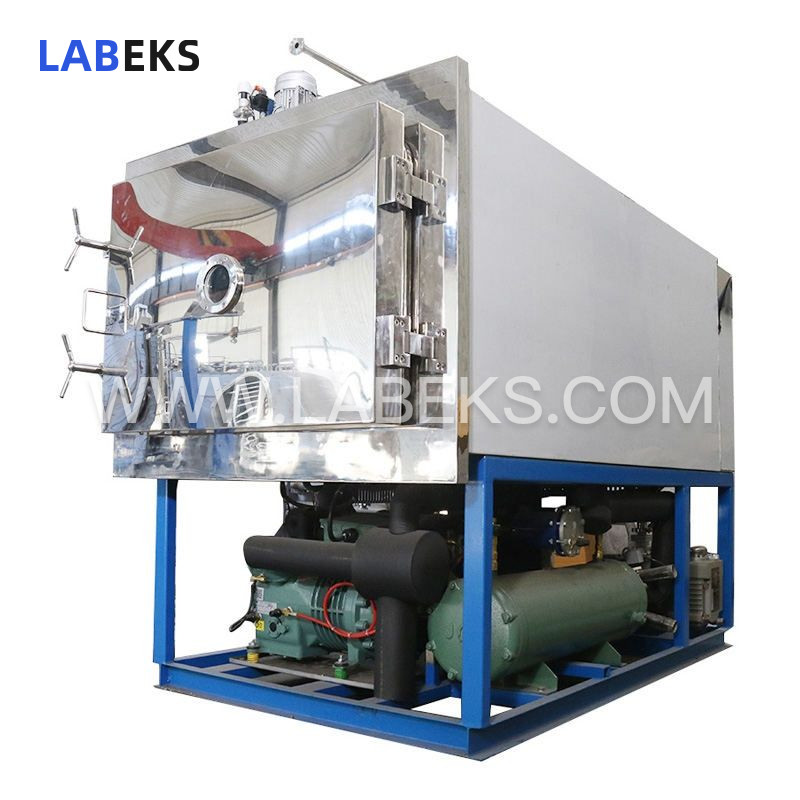

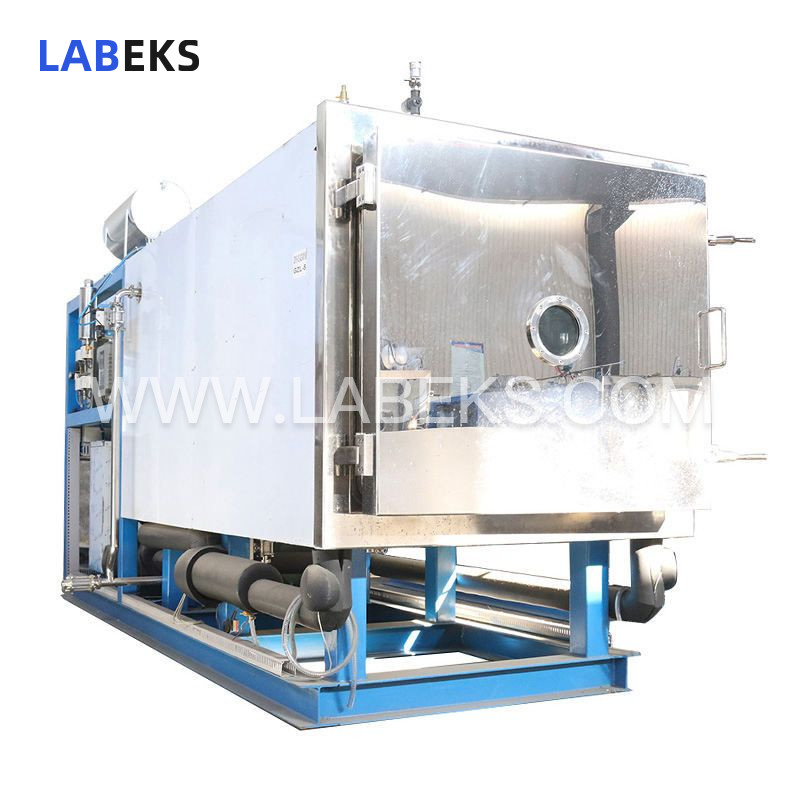

10kg Small Freeze Dryer for Liquid Materials with Precise Process Control
Capable of preserving products long-term with full restoration to original properties after rehydration, the LABEKS GZL-1 general-purpose vacuum freeze dryer is suitable for drying high-end raw materials, Chinese herbal medicine, biological specimens, wild vegetables, dehydrated vegetables, food, fruits, chemicals, and pharmaceutical intermediates.
- modelGZL-1
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Widely utilized in medicine, pharmaceutical production, biological research, chemical engineering, and food manufacturing, vacuum freeze dryers simplify extended product storage. Post freeze-drying, products can be rehydrated to their original state while retaining all key chemical and biological characteristics.
features

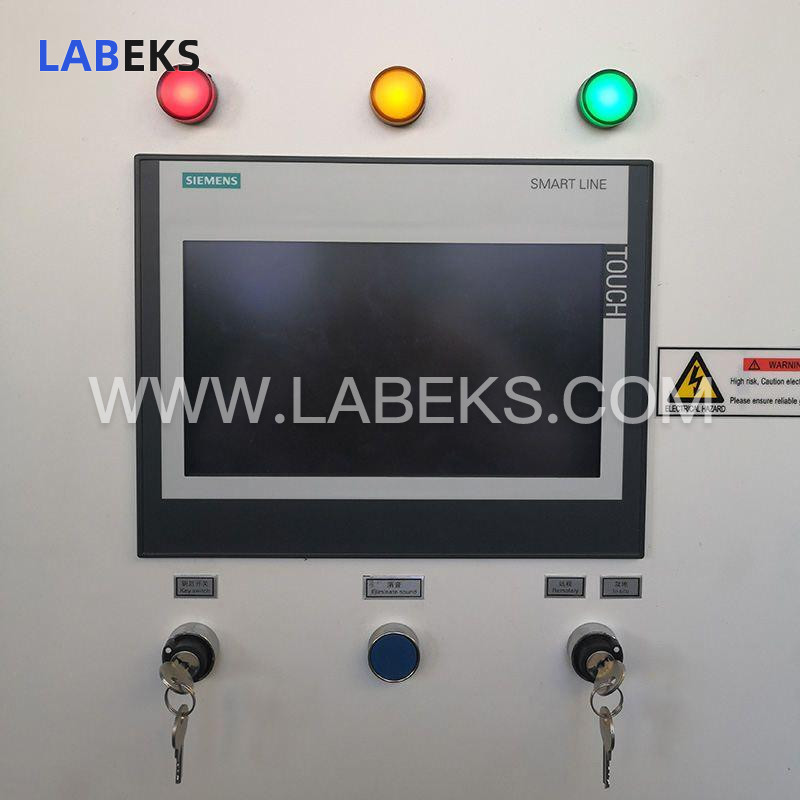

1. Equipped with an industrial-grade embedded touchscreen and the dedicated SH-HPSC-IV modular controller, the system delivers stable, reliable operation and high control precision.
2. The purpose-built LYO-CONTROL control system stores multiple process recipes and allows real-time process adjustments during drying to enhance process optimization efficacy.
3. An optional high-performance LYO-MEGA host computer control system is offered, which records and stores operational data, process curves, and alarm logs for up to 10 years to boost product traceability. It also simplifies monitoring, operation, and fault diagnosis.
4. Featuring flexible manual and automatic control modes, the system supports process development via manual operation and high-volume production through automated execution.
5. Configurable user access levels and password protection enable decentralized operational management and secure system utilization.
6. An optimized drying curve control algorithm regulates product heating rates and vacuum levels throughout the drying phase.
7. Specialized gas diversion design and control technology provide strong water vapor capture capability and high drying efficiency.
8. Vacuum level adjustment during drying operations prevents foaming and splattering of special materials, further improving drying efficiency.
9. The high-efficiency mixed refrigerant medium features a low freezing point and high boiling point, ensuring exceptional heat exchange efficiency.
10. Manufactured using specialized techniques, the clapboard offers high pressure resistance, excellent flatness, and consistent temperature uniformity.
11. Non-standard customization services are available to meet specific user requirements.
specifications
Model | GZL-1 |
|---|---|
Drying area(㎡) | 1.15 |
Inputcapacity (10mm thickness) (L) | 10 |

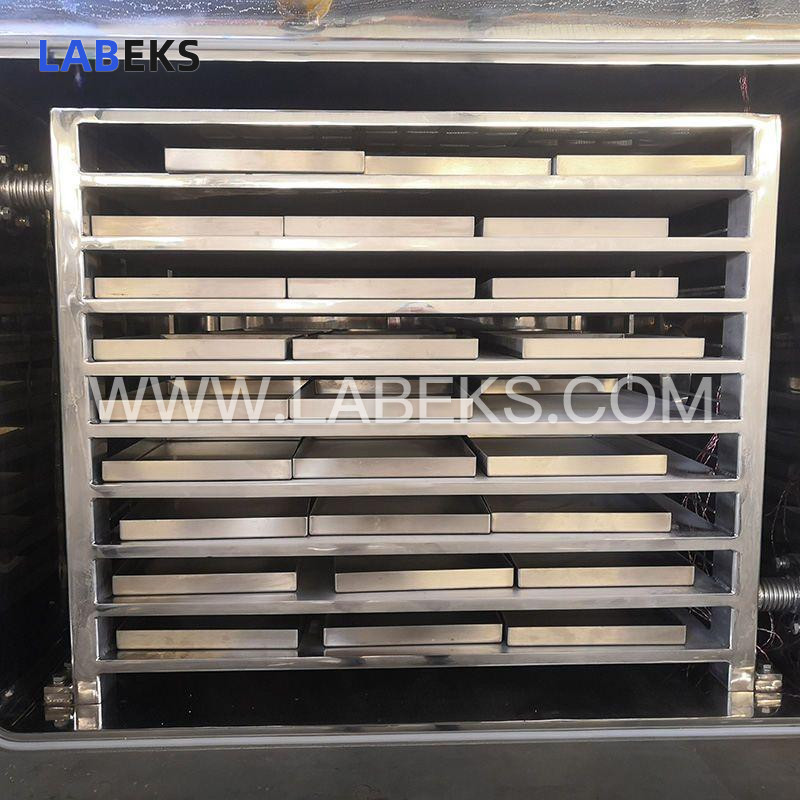

Shelf number(Layers) | 4+1 |
Shelf size(mm) | 480*600 |
Shelf space(mm) | 80 |
Temperaturerange (°C) | -50~+80 |
Water vaporcondensation (Kg/D) | ≥20 |
Cold traptemperature (°C) | ≤-75 |
Cooling mode | Watercooling |
Defrost mode | Waterimmersion |
Vacuum (Pa) | ≤5 |
Power (KW) | 15 |
Size (L*W*H)(mm) | 2500*1100*2000 |
Weight (kg) | 1200 |
