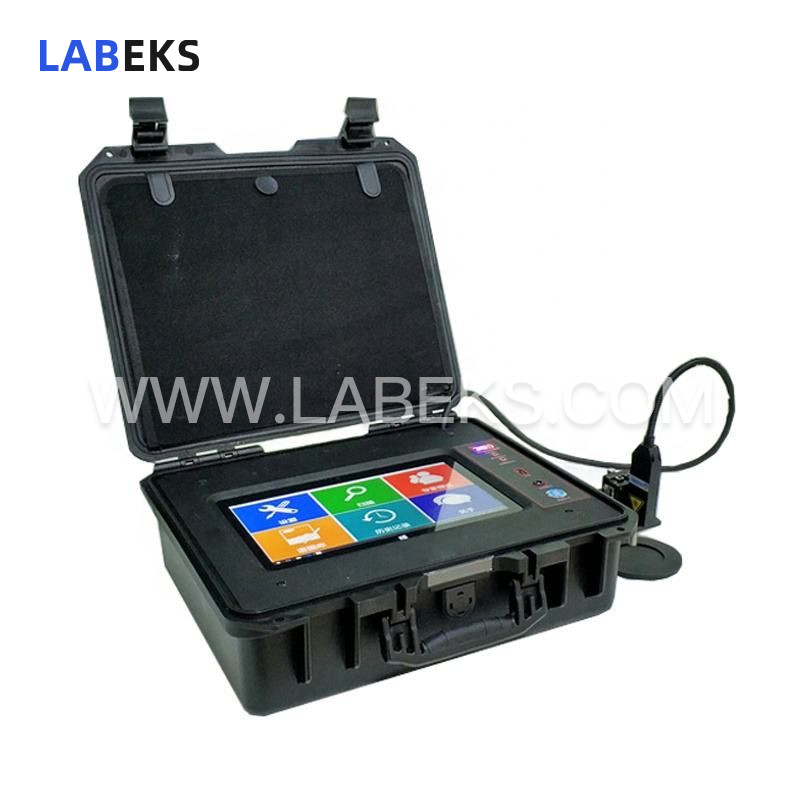

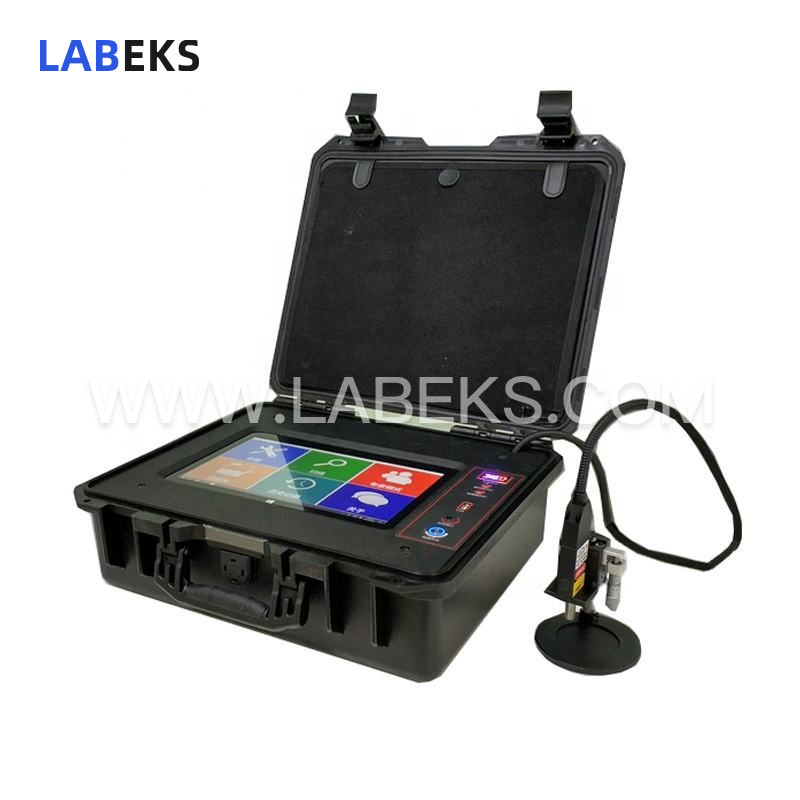

1064nm Refrigerated Raman Spectrometer: Fluorescence Background Elimination for Field Scientific Analysis

As part of the renowned LATR3000 scientific research series, the refrigerated Raman spectrometer model LATR3000-1064 is equipped with a 1064nm excitation laser, high-extinction-ratio Raman filter set, and high-sensitivity InGaAs array detector with ultra-low-temperature TE cooling, delivering improved signal-to-noise ratio and higher dynamic range.

  • model
    LATR3000-1064
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

Thanks to the low fluorescence properties of its 1064nm excitation wavelength, the LATR3000-1064 eliminates fluorescence interference, making it ideal for analyzing a broad range of high-fluorescence samples including dyes, printing inks, petroleum products, and biological specimens. This spectrometer boasts a spectral range of 200~2600 cm⁻¹ and a spectral resolution of 13 cm⁻¹. Its compact, lightweight, low-power design enables lab-grade Raman analysis to be performed at any location, making it highly suited for laboratory-based scientific research. Exceptional reliability and long-term, temperature-resistant repeatability ensure precise, dependable test results, while its ultra-low stray light performance expands its applicability to dark, colored, fluorescent, and biological samples, as well as bacteria, fuels, petroleum products, vegetable oils, pharmaceuticals, explosives, and more.

Applications:

Biological Sciences

Pharmaceutical Engineering

Forensic Analysis

Agricultural & Food Safety

Gemstone

Environmental Sciences

features

1. Cryogenic refrigerated linear InGaAs CCD sensor;

2. Ultra-low temperature cooling capability reaching -20℃

3. Ultra-low noise circuitry for enhanced signal stability;

4. Effective fluorescent background elimination for accurate high-fluorescence sample testing;

5. Robust embedded software for comprehensive data processing;

6. Operates on Android 6.0 system for intuitive user experience;

7. 11.6-inch capacitive touchscreen supporting multi-touch operations;

8. Full HD 1920×1080 touchscreen for clear data visualization;

9. Extended battery life exceeding 5 hours for prolonged field use;

10. USB 2.0 interface for seamless data transfer;

11. Supports LAN remote control for flexible operational access;

12. IP67 waterproof and dustproof rating for rugged environment compatibility;

13. User-friendly human-machine interface for streamlined workflow;

14. Integrated peak search and display functions for rapid data analysis;

specifications

Model

LATR3000-1064

Interface

USB

IntegrationTime

1ms-30m

OperatingTemperature

-10℃-40℃

OperatingHumidity

90%

Dimension

120um

Weight

5kg

RamanSpectrometer Detector

DetectorModel

HamamatsuS10420+TEC

Cooled DownTo

-5℃

DynamicRange

50000:1

Pixel Size

14×14pixels

RamanSpectrometer Laser Parameters

ExcitationWavelength

785nm

Laser Output

600mW; 500mWat probe

RamanSpectrometer Optical Parameters

SpectralRange

250-2700;200-3500; 200-4200.

Resolution

6(250-2700);8(200-3500); 10(200-4200).

Library

Item

Spectral Library

Application

LATR3000-1064

Self-builtdatabase

Researchfield

LATR3000DH-1064

Can detectdrugs, chemicals, flammable and explosive, precursor drugs, pesticides

Publicsecurity, customs, subways, courts, prisons, public places, etc.

LATR3000PH-1064

Raw materialinspection

Pharmaceuticalfactory

LATR3000GM-1064

Diamonds,jade, agate, emeralds, gems, minerals, etc.

Jewelryappraisal

LATR3000CH-1064

Variouschemicals, toxic and hazardous substances, etc.

Chemicalcomposition identification
