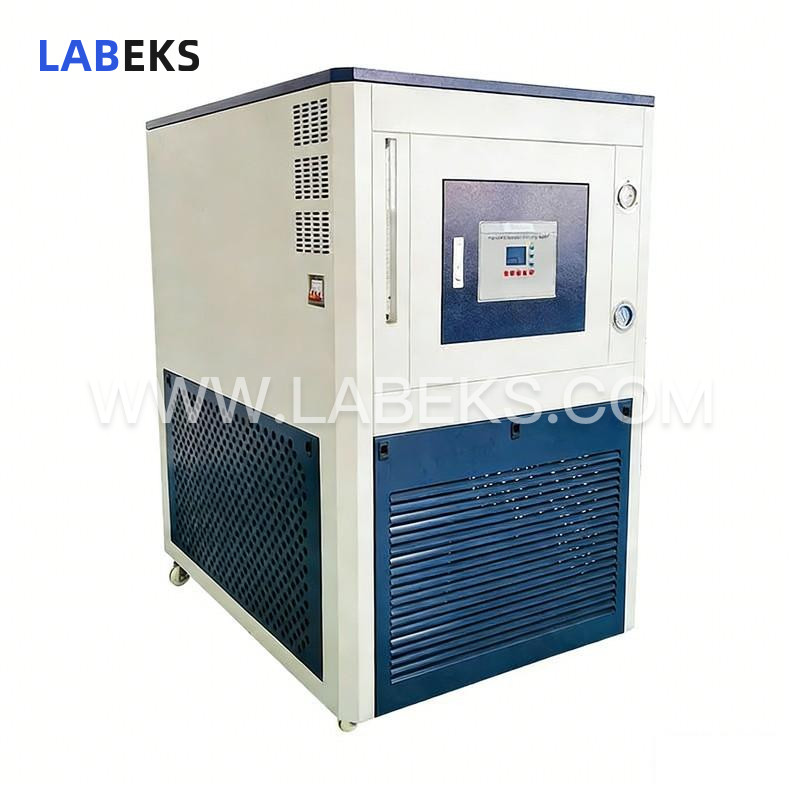

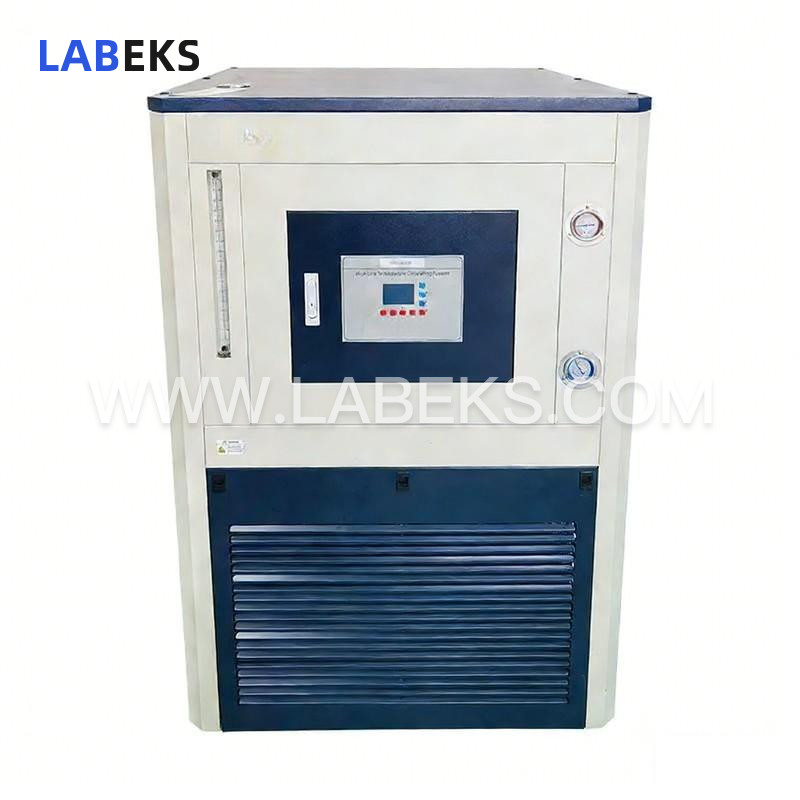

100L Refrigerated Heating Bath Circulators Deliver Precision Temp Control (-80°C to 200°C)
For standard and complex applications demanding precise temperature control spanning -80°C/-40°C/-20°C to 200°C, LABEKS LGD Series Refrigerated Heating Bath Circulators deliver outstanding performance.
- modelLGD-100/20 LGD-100/40 LGD-100/80
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As a recirculating chiller-heater system, this unit integrates cooling, heating, and recirculation capabilities, consisting of a refrigeration module, heating module, recirculation system, and control system.
The refrigeration segment relies on a fully enclosed compressor for mechanical cooling, paired with plate heat exchangers, expansion valves, and pressure protectors to meet all cooling requirements.
Electric heating tubes are employed in the heating segment to warm the circulating fluid. Via an integrated circulation pump and external piping, the coolant or heat transfer medium is delivered to the jacket of supporting equipment, enabling indirect cooling and heating of reactor contents.
For external circulation operation, connect the unit’s upper outlet pipe to the lower inlet of the reactor vessel; the circulating fluid will then return to the unit’s lower return port via the vessel’s upper circulation port, forming a complete closed recirculation loop.
features
Equipped with imported compressors sourced from France and Denmark for reliable, durable operation.
Offers standard temperature control accuracy of ±1°C; connection to an external sensor enhances differential temperature accuracy to ±0.5°C.
Integrates over-temperature limit protection that automatically cuts power to prevent equipment malfunction if the preset maximum temperature is exceeded.
Built-in compressor overheating protection triggers automatic shutdown when the compressor reaches its safe operating limit.
Incorporates comprehensive power supply protection to safeguard against electrical anomalies.
For water-cooled configurations, dedicated protection against insufficient water flow and low water pressure is included.
specifications
Model | LGD-100/20 | LGD-100/40 | LGD-100/80 |
|---|---|---|---|
Operating temperature range | -20～+200℃ | -40～+200℃ | -80～+250℃ |
Optimum ambient temperature | 5～35℃ | 5～35℃ | 5～35℃ |
Environment humidity | ≤70％ventilation | ≤70％ventilation | ≤70％ventilation |
Power supply | threephase 380V/50HZ | threephase 380V/50HZ | threephase 380V/50HZ |
Safety protection | Delay,overcurrent, overheating,overtemperature,phase sequence,phase loss protection | Delay,overcurrent, overheating,overtemperature,phase sequence,phase loss protection | Delay,overcurrent, overheating,overtemperature,phase sequence,phase loss protection |
Display | LCDdisplay, key operation | LCDdisplay, key operation | LCDdisplay, key operation |
Temperature control accuracy | ±1℃ | ±1℃ | ±1℃ |
Sensor | PT100 | PT100 | PT100 |
Total power | 14395W | 17100W | 24450W |
Heating power | 9000W | 9000W | 9000W |
Plate Heat Exchanger [HeatExchange Area] | 2.5㎡ | 2.5㎡ | 2.5㎡ |
[Compressor]Specification | 7P | 10P | 10P |
[Compressor]Quantity | 1 | 1 | 2 |
[Compressor]Power | 5145w | 7350W | 14700W |
[Compressor]Cooling capacity | 16268w | 23240W | 46480W |
[Circulation pump]Power | 250w | 750W | 750W |
[Circulation pump]Head | 15M | 25M | 25M |
[Circulation pump]Flow | 30L/MIN | 135L/min | 135L/min |
[Circulation pump]Pressure | ≤0.2MPa | ≤0.2MPa | ≤0.2MPa |
Refrigerant | R22 | R22 | R22 |
Body material | Coldplate spray anti-corrosion | Coldplate spray anti-corrosion | Coldplate spray anti-corrosion |
Outer loop interface | 6points wire mouth with 6 points × 3 meters metal circulation pipe two | 6points wire mouth with 6 points × 3 meters metal circulation pipe two | 6points wire mouth with 6 points × 3 meters metal circulation pipe two |
Circulating fluid | GradeA Silicone Oil | GradeA Silicone Oil | GradeA Silicone Oil |
Machine size(LxWxH) | 829×1071×1410mm | 829×1071×1410mm | 1060×1600×1420mm |
Machine net weight | 243KG | 243KG | 456KG |
Package size | 1190×880×1530mm,1.61m³ | 1190×880×1530mm,1.61m³ | 1650×1100×1540mm,2.8m³ |
Package weight | 310KG | 310KG | 500KG |
