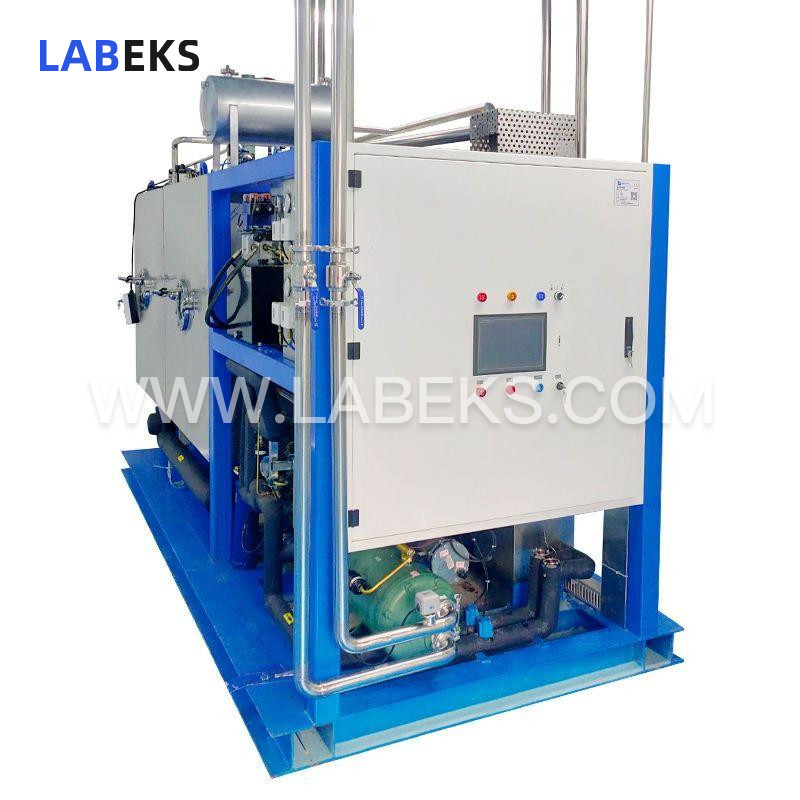

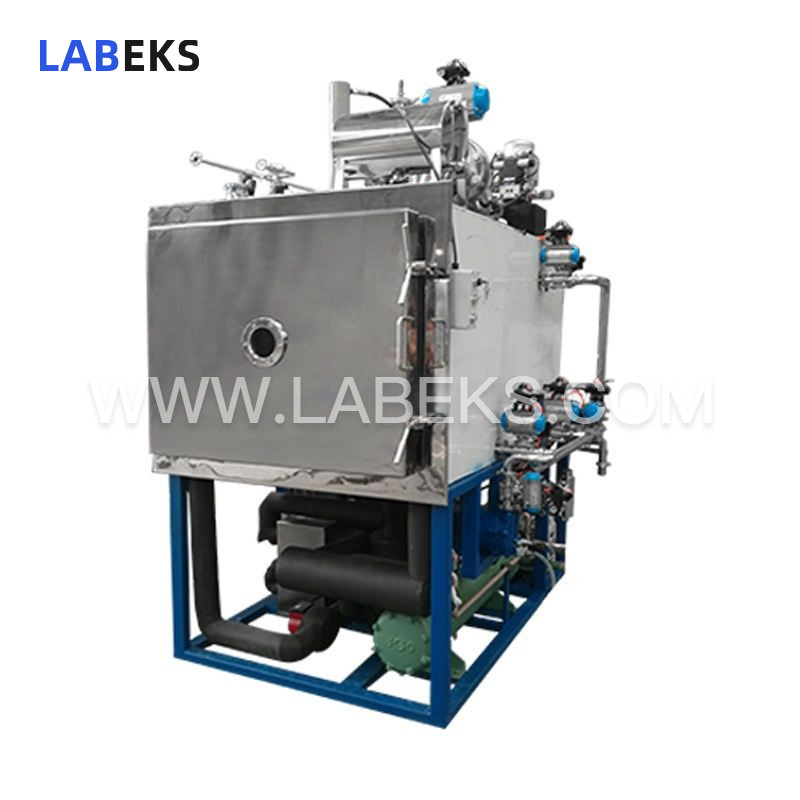

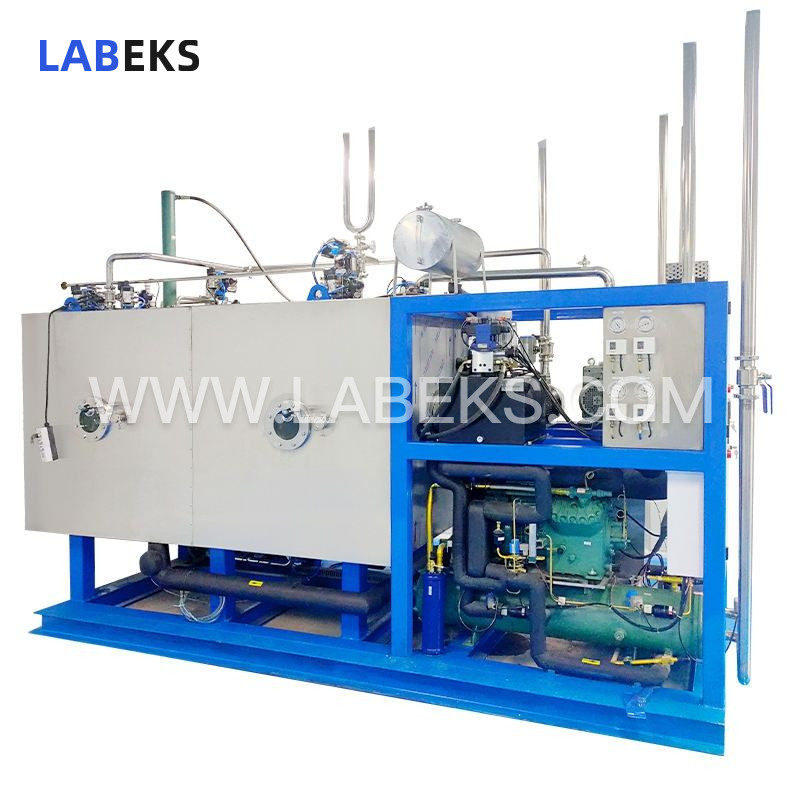

100kg Drug Rubber Stopper Freeze Dryer for Pharmaceutical GMP-Validated Processes
Designed for large-scale pharmaceutical facilities, the GZLY-10 medical top-press freeze dryer from LABEKS supports freeze-drying of blood products, vaccines, biologicals and chemical drugs—especially Western medicines—enhancing injection quality and extending shelf life for long-term storage.
- modelGZLY-10
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The GZLY-10 pharmaceutical freeze dryer is engineered for use in pharmaceutical manufacturing facilities. It accommodates freeze-drying of both bulk materials (liquid, paste, solid) and vial-based formulations. For vial processing, materials are loaded into unsealed vials prior to initiating freeze-drying. Post-drying, an integrated capping mechanism secures vial lids tightly, preventing secondary contamination, moisture reabsorption and enabling extended product storage.
features
1. Role-based user access with tiered permissions and password protection supports decentralized operations, fully aligning with GMP regulatory requirements.
2. The robust LYO-MEGA host computer control system retains operational data, process curves and alarm records for up to 10 years, enhancing product traceability while simplifying monitoring, operation and fault troubleshooting.
3. The professionally engineered LYO-CONTROL system stores multiple freeze-drying process profiles, with real-time parameter adjustment capabilities to maximize process optimization efficiency.
4. Equipped with an industrial-grade embedded touchscreen and dedicated SH-HPSC-IV modular controller, the system delivers exceptional stability, reliability and precise control accuracy.
5. Flexible dual-control modes are offered: manual mode for process development and optimization, and automatic mode for consistent, high-volume batch production.
6. Advanced freeze-drying curve optimization technology regulates cooling rates during pre-freezing, while precisely controlling sample heating speeds and real-time vacuum levels throughout the sublimation and analytical drying stages.
7. Shelves are fabricated using exclusive patented technology, featuring superior pressure resistance, high surface flatness and excellent temperature uniformity across the entire shelf area.
8. Patented gas diversion design and control technology ensures robust ice capture capacity and exceptional drying efficiency for every production batch.
9. Adjustable vacuum settings during drying prevent foaming and material blowout for specialized formulations, further enhancing overall drying efficiency.

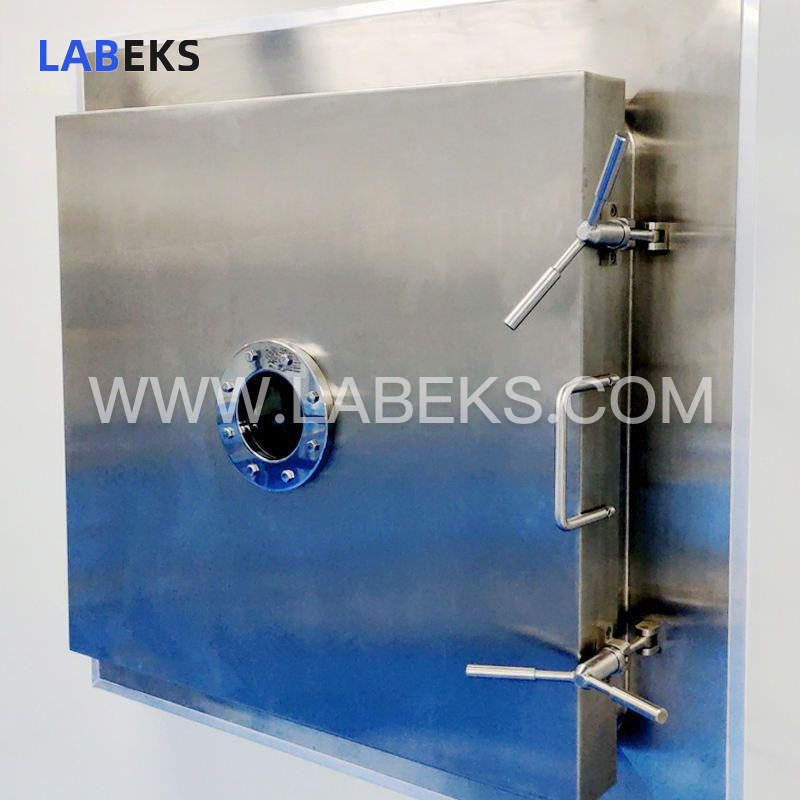

10. A unique mobile + fixed dual-channel door sealing technology enables in-situ steam sterilization of stationary silicone rubber seals, maintaining stringent sterility standards.
11. Optional Clean-in-Place (CIP) and Sterilize-in-Place (SIP) functions are available to meet enhanced sanitization requirements.
12. Custom non-standard configurations can be tailored to meet specific operational needs upon request.
specifications
Model | GZLY-10 |
|---|---|
Freeze drying area (m2) | 10.5 |
Shipping weight (thickness 10mm) (L) | 100 |
Shelf numbers (layer) | 7+1 |
Shelf dimensions (mm) | 990*1520 |
Shelf spacing (mm) | 80 |
Temperature range (℃) | -50~+70 |
Ice collecting capacity (kg/Batch) | ≥300 |
Cold trap temperature (℃) | ≤-75 |
Cooling mode | water cooled |
Defrosting mode | water soaked |
Ultimate vacuum (Pa) | ≤1 |
Power (kw) | 58 |
Dimensions (L*W*H) (mm) | 6700*1800*3500 |
Vials Φ22 (pcs) | 22923 |
Vials Φ16 (pcs) | 42966 |
Weight (kg) | 7000 |
Steaming water consumption (kg/h) | 200 |
Inpouring water volume (l/min) | 160 |
