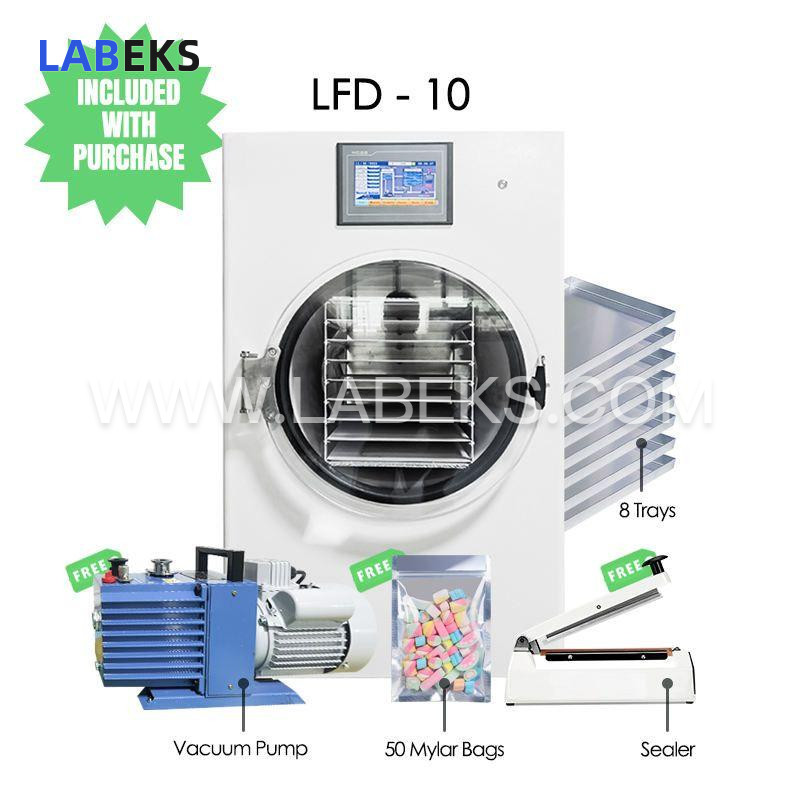

10-12kg Large Food Freeze Dryer with Touchscreen Control for Home Use
Ideal for home and small online business batches, this food freeze dryer is a compact vacuum lyophilization unit perfect for freeze-drying fruits, meat, vegetables, Chinese herbal medicines, and health supplements.
- modelLFD-10
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Lyophilization, or freeze drying, is a dehydration process where products are first frozen and then placed under vacuum conditions. This allows ice to transition directly from a solid state to vapor, bypassing the liquid phase entirely. The procedure is composed of three distinct, interconnected stages: freezing, primary drying (sublimation), and secondary drying (desorption).
features

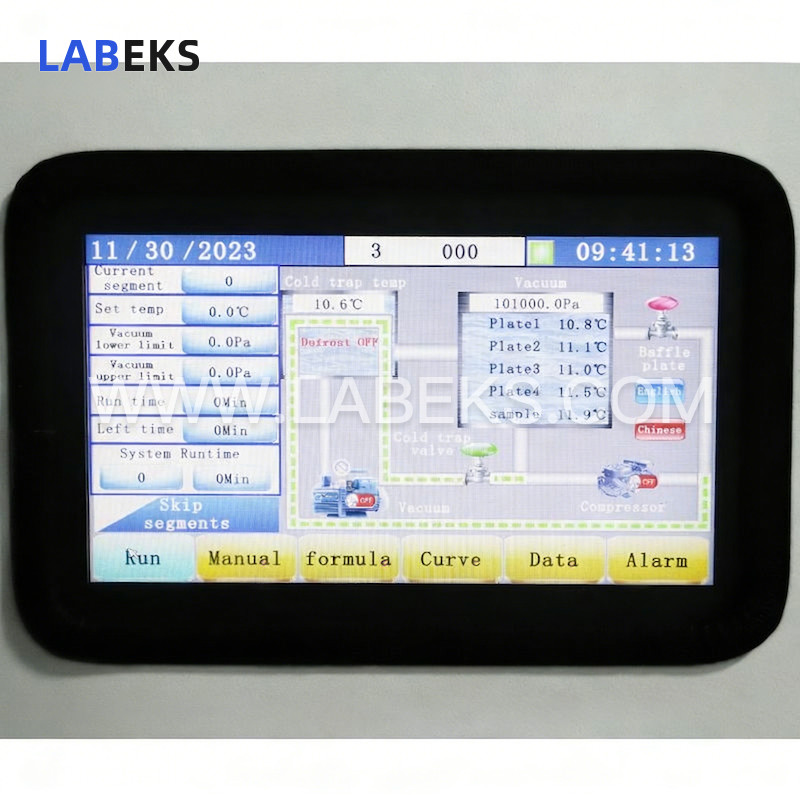

Intuitive touchscreen interface with configurable power-on password protection and real-time drying curve display.
In-situ pre-freeze drying capability for streamlined lyophilization.
Supports up to 30 customizable program segments; parameters can be adjusted mid-operation, with real-time online recording of vacuum drying curves and data.
Adjustable temperature settings enable full control over the production process.

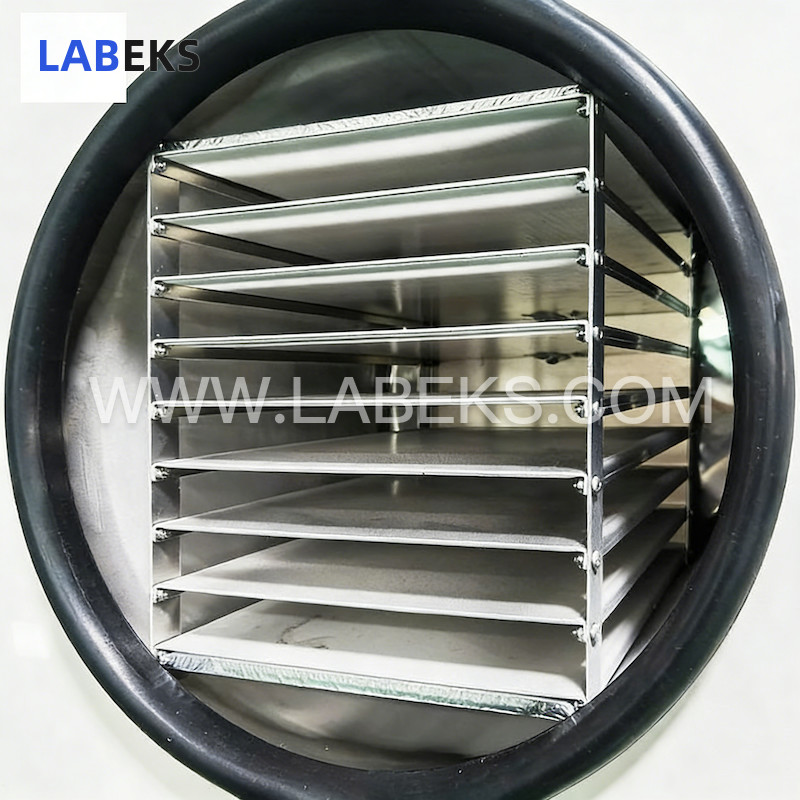

Square trays with high deformation resistance for straightforward operation and easy cleaning.
Optional inflation valve for filling with dry inert gas.

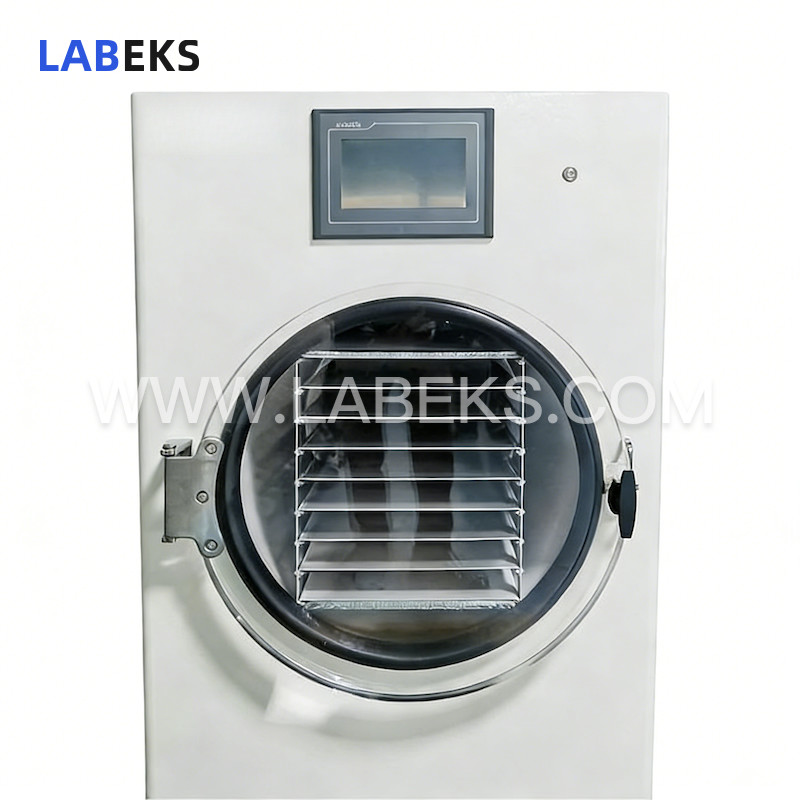

Drying chamber features a highly transparent colorless plexiglass door, enabling clear observation of material changes during operation.
specifications
Model | LFD-10 |
|---|---|
Freeze-dried Area | 0.92m² |
HandlingCapacity | 10~12Kg/Batch |
Cold TrapTemperature | ＜-35℃（No-load） |
Maximum IceCapacity/Water Catch | 6.0kg |
Layer Spacing | 38mm |
Tray Size | 430mm*265*25mm8Pcs |
Ultimate Vacuum | 15pa（No-load） |
Vacuum Pump Type | 2XZ-4 |
Pumping Speed | 4L/S |
Noise | 64dB |
Power | 2500W |
Power Supply | 220V/50HZ or Custom |
Weight | 130Kg |
Dimension | 640*680*1180mm |
