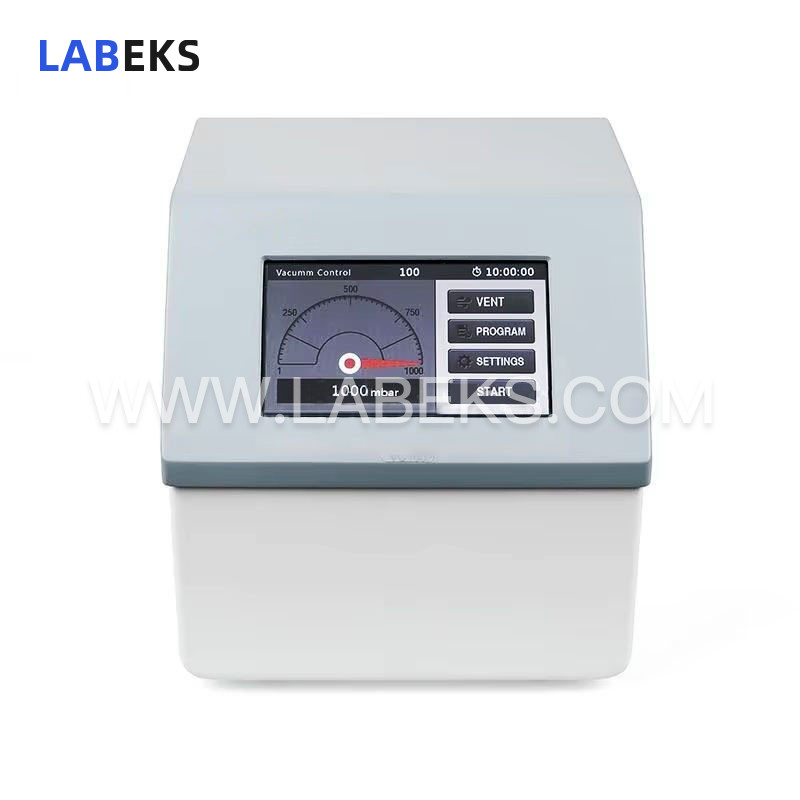

1-1000mbar Programmable Laboratory Vacuum Controller for Rotary Evaporators & Vacuum Ovens
Ideal for rotary evaporators, vacuum ovens, and chambers, this laboratory vacuum controller (LVC-100) precisely regulates 1-1000mbar vacuum levels, stores up to 5 programmable methods with 5 setpoints each, and allows fast manual adjustments via a user-friendly keypad.
- modelLVC-100
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The LVC-100 laboratory vacuum controller features programmable functionality, supporting storage of up to 5 custom programs each with 5 distinct segments. Its large TFT touchscreen ensures intuitive, hassle-free operation. All wetted components are constructed from PTFE, ceramic, and other high-performance materials, providing exceptional resistance to corrosion from organic solvents, water, acids, and alkalis.
features
Two selectable control modes: single-point control and programmed control, tailored to diverse experimental needs
Offers broad measurement and control coverage across the 1-1000mbar range
Supports storage of up to 5 custom programs, each featuring up to 5 segments of sequential control
Features a large-format TFT touchscreen for intuitive, streamlined operation
All wetted components are fabricated from PTFE, ceramic, and other high-performance materials, delivering superior resistance to corrosion from organic solvents, water, acids, and alkalis
Compatible with pump power control functionality: automatically shuts off the pump upon reaching stable vacuum levels for energy efficiency, or can operate in pump-always-on mode
Integrated vent valve enables inert gas purging into connected system equipment
One-step decompression mechanism facilitates quick, easy installation and disassembly of the vacuum system
specifications
Specifications | LVC-100 |
|---|---|
Vacuum setting range | 1-1000mbar |
Vacuum measurement range | 1-1000mbar |
Control operation mode | Single-point control mode,Programmed control mode |
Control program | Can store up to 5 programs, eachcontaining 5-step control (capable toset the degree of vacuum and time) |
Setting method | Touch screen setting |
Display | 5” TFT |
Sensor overload pressure | 1,500mbar |
Connector diameter | 8mm |
Materials in contact with vapor | PTFE, PP, silicone and ceramics |
Power | 600w |
Overall dimensions(W×D×H) | 189×207×193mm |
Weight | 4.0KG |
Power supply | 110—240V,50Hz/60Hz |
Operating environment | 10℃～40℃，≤80%RH |
