0.7㎡ Silicone Oil Heating Lyophilizer with Patented In-Situ Drying for Pharmaceutical & Food Sectors

1. Patented square-chamber in-situ vacuum freeze dryer integrating pre-freezing and drying processes in one station for simplified operation and superior drying outcomes.

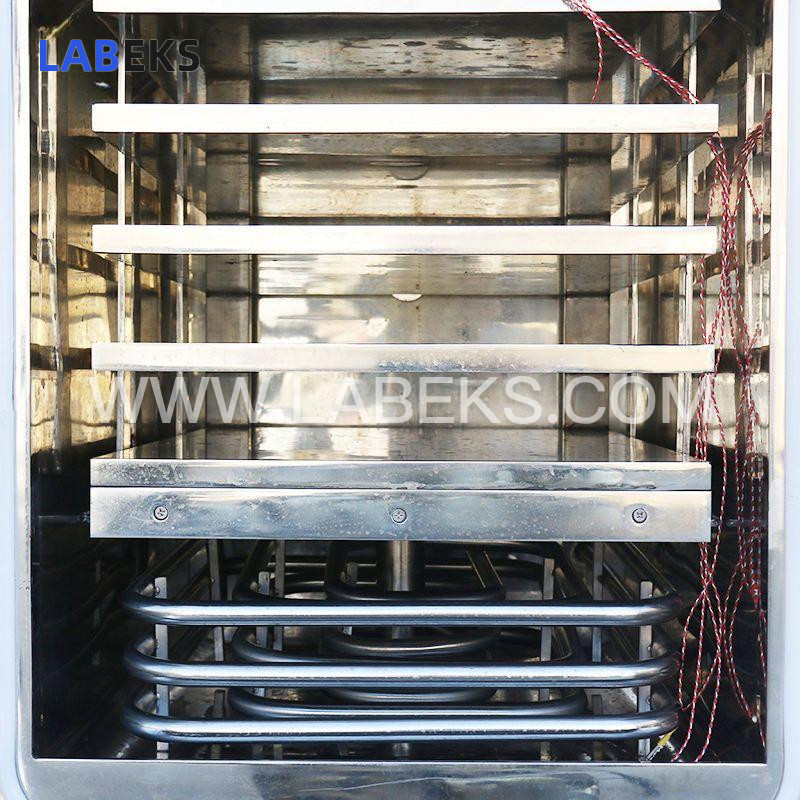

2. Patented separator technology with separator temperature fuzzy control ensures minimal shelf temperature variation, high temperature control accuracy, and consistent drying results across all samples.

3. Advanced freeze-drying curve optimization control: regulates cooling rates during pre-freezing, and precisely controls sample heating rates and stage-specific vacuum levels during sublimation and analytical drying phases.

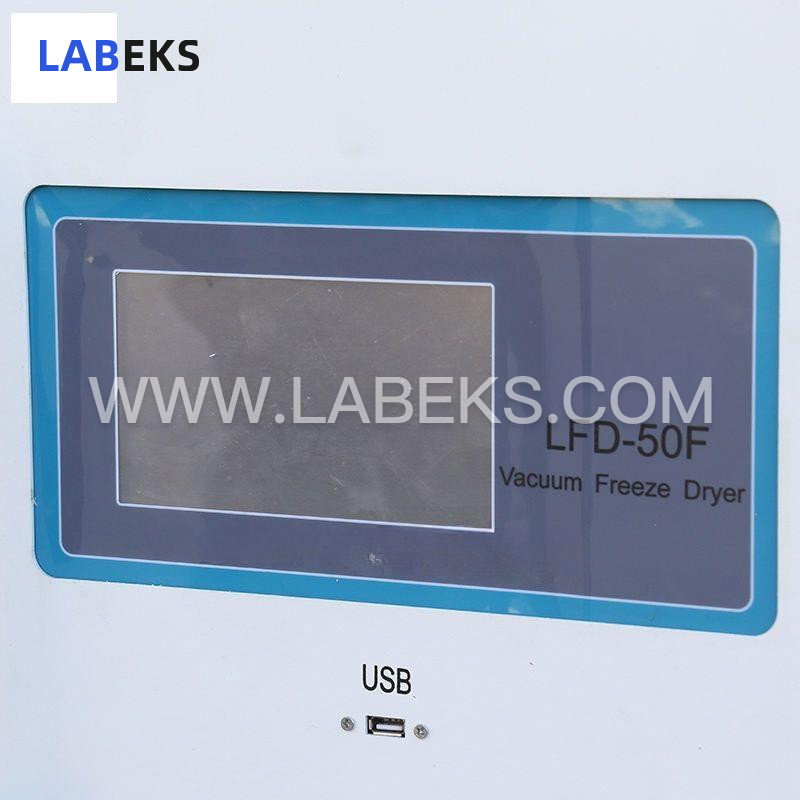

4. 7-inch true-color industrial embedded touchscreen paired with the SH-HPSC-II modular controller delivers exceptional control accuracy and stable, reliable operational performance.

5. Custom-designed FD-PILOT control system stores up to hundreds of process recipes, with each recipe supporting 50 temperature control segments to enhance process optimization efficiency.

6. Intelligent data logging system real-time tracks and displays cold trap temperature, sample temperature, and vacuum level curves. Exported data can be viewed, printed, and analyzed via computer to support process optimization and drying effect validation.

7. Dual flexible control modes: manual mode for process development and optimization, and automatic mode for high-volume batch production runs.

8. Globally recognized brand compressors with dual-machine cascade refrigeration ensure high efficiency, energy savings, extended service life, and low operational noise.

9. Purpose-built gas guiding technology enables the cold trap to capture ice evenly and delivers exceptional ice-trapping capacity.

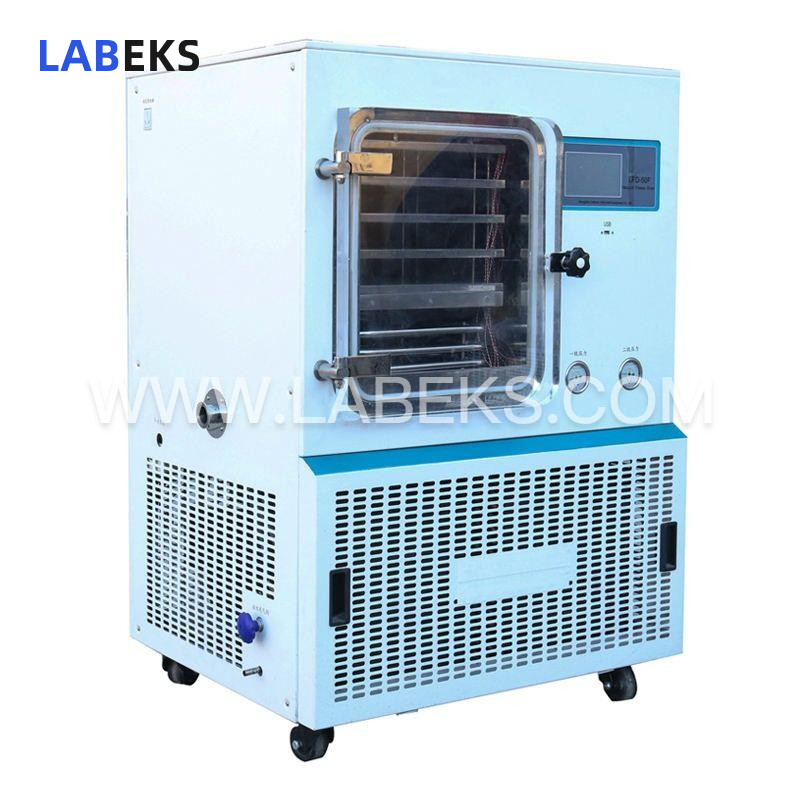

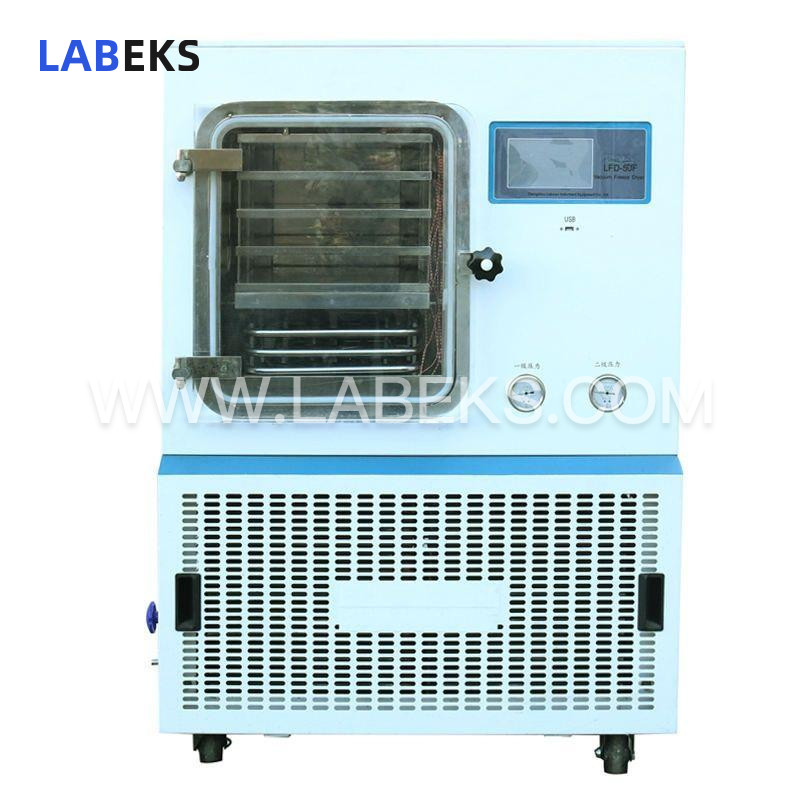

10. Drying chamber door constructed from transparent acrylic material allows clear, real-time observation of the lyophilization process.

11. Inflation (venting) valve uses a safety diaphragm valve, compatible with inert gas sources to fill dried samples with inert gas, thereby extending material shelf life.

12. Robust sensor calibration functionality guarantees consistent, accurate measurements throughout extended periods of operation.

13. Real-time alarm display and historical alarm query capabilities simplify fault diagnosis and streamline equipment maintenance procedures.

14. Configurable user levels and password protection enable structured, decentralized operational management.
