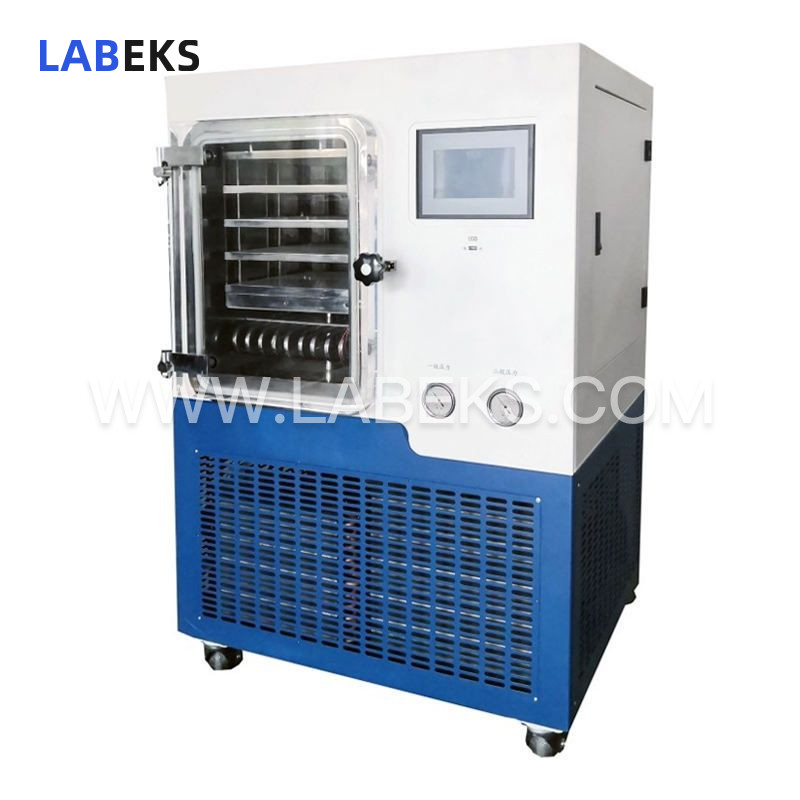

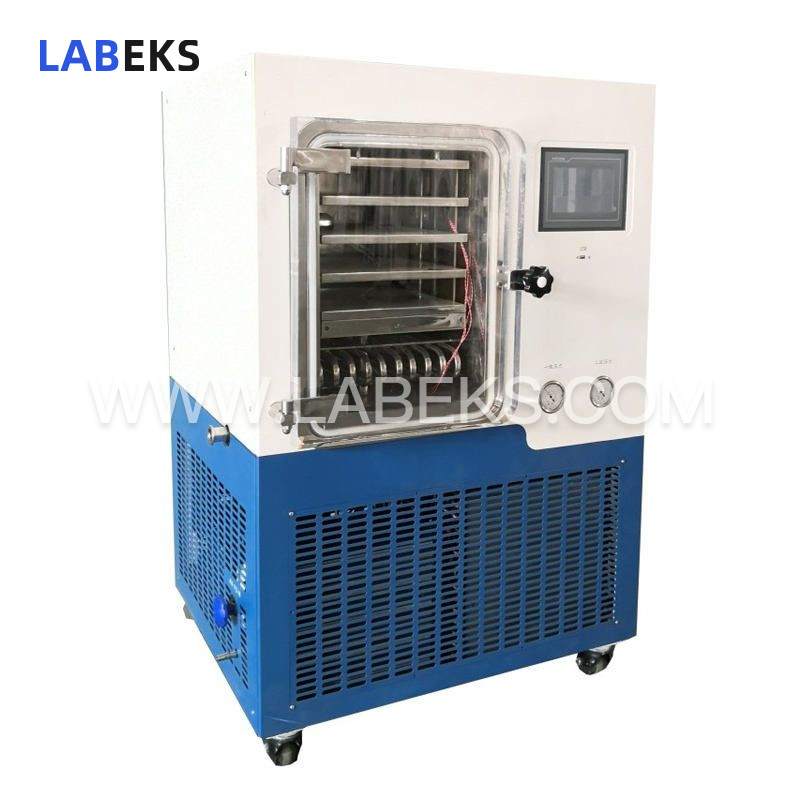

0.4㎡ Pilot Freeze Dryer Lyophilizer with In-Situ Lyophilization Capability
Ideal for preserving bulk (liquid, paste, solid) materials and vial-based samples, this pilot freeze dryer supports lyophilization of unsealed vials, with automated post-drying capping to prevent contamination, reabsorption of moisture, and enable long-term storage.
- modelLFD-30FA
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Widely applied in medicine, pharmaceuticals, biological research, chemical engineering, and food production, this freeze dryer simplifies long-term material preservation post-lyophilization. Rehydrated samples revert to their original state while retaining full chemical and biological characteristics.
The LFD-30F (silicon oil heating) integrates freezing and drying processes in a single chamber—a patented design that eliminates cumbersome manual operations, prevents material contamination, and enables fully automated sublimation drying. Equipped with shelf heating and programmable controls, it stores lyophilization curves and includes a USB extraction function for process observation.
features
1. Equipped with a 7-inch true-color industrial embedded touchscreen + SH-HPSC-II modular controller, delivering high control accuracy, stable and reliable performance.
2. The professionally engineered FD-PILOT control system stores hundreds of process recipes, each containing 50 temperature control sections to enhance process optimization efficiency.
3. Our company’s patented in-situ vacuum freeze dryer completes pre-freezing and drying in one chamber, offering easy operation and excellent drying results.
4. Powered by internationally renowned brand compressors with dual-machine cascade refrigeration, ensuring high efficiency, energy savings, long service life, and low noise levels.
5. Patented gas guiding technology ensures uniform ice trapping in the cold trap and strong water-capturing capacity.
6. Patented separator technology and fuzzy separator temperature control minimize shelf temperature differences, ensure high temperature control precision, and deliver uniform drying effects.
7. Advanced freeze-drying curve optimization control regulates cooling rates during pre-freezing, as well as sample heating rates and vacuum levels during sublimation and analytical drying phases.
8. Intelligent data recording system captures and displays real-time cold trap temperature curves, sample temperature curves, and vacuum level curves; exported data can be viewed, printed, and analyzed on a computer to support process optimization and drying effect verification.
9. Robust sensor calibration ensures accurate, consistent measurements during long-term operation.
10. Flexible manual + automatic control modes: manual mode is ideal for process development, while automatic mode supports batch production.
11. The pneumatic (discharge) valve uses a safety diaphragm valve, which can connect to an inert gas source; filling with inert gas post-drying extends material shelf life.
12. The drying chamber door is constructed from colorless, transparent ACRYLIC material, enabling full-process visual monitoring of lyophilization.
13. Real-time alarm display and historical alarm inquiry functions facilitate fault diagnosis and equipment maintenance.
14. Customizable user levels and password settings support decentralized operational management.
specifications
Model | LFD-30FA |
|---|---|
Freeze-dried area | 0.4m2 |
Material plate size | 295 × 335mm |
Number of material trays | 4 |
Shelf size | 300 × 340mm |
Number of shelves | 4+1 floors |
Shelf spacing | 50mm |
Shelf temperature range | -50 ° C ~ +70 ° C |
Shelf temperature difference | ±1 °C (balanced) |
Cold trap temperature | ≤ -75 ° C (no load) |
Water catching capacity | ≥8KG/24h |
Pumping rate | 6L/S |
Ultimate vacuum | ≤5pa (no load) |
Installed power | 4500t |
Host weight | 400kg |
Mainframe dimensions | 920 × 780 × 1350mm |
Cooling method | air cooling |
