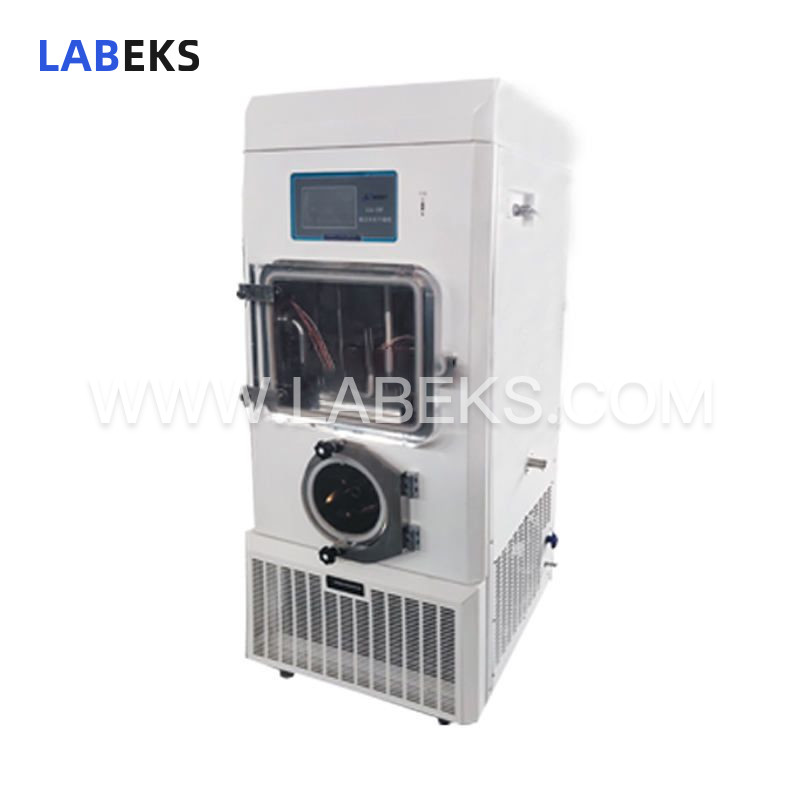

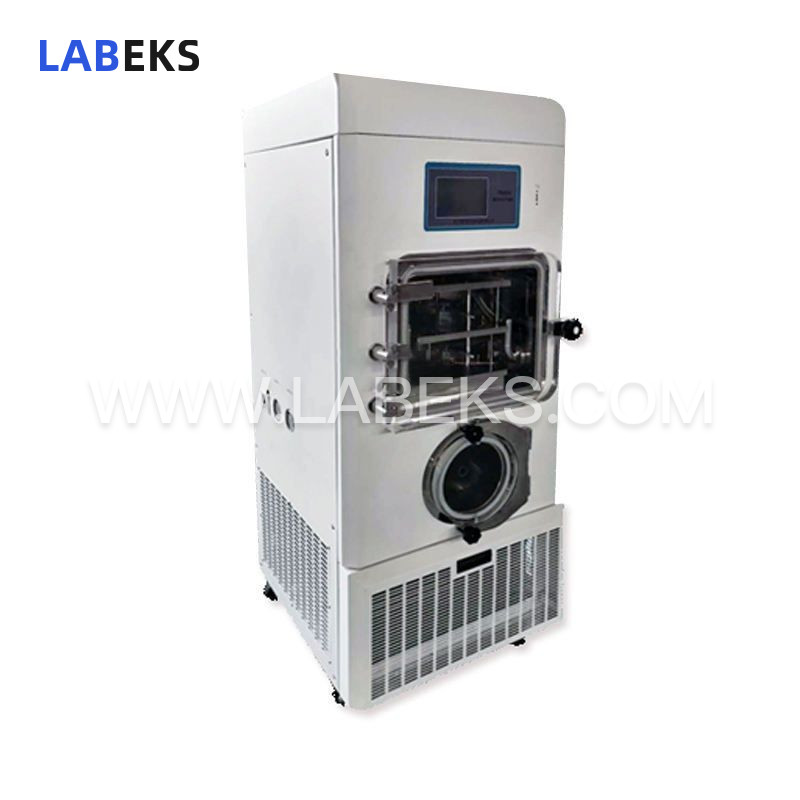

0.2㎡ Top Press Pilot Freeze Dryer Lyophilizer with Patented In-Situ Processing for Pharma & Food R&D

1. Patented in-situ freezing and drying technology integrates both processes in a single chamber, simplifying operation and delivering consistent, high-quality drying results.

2. Equipped with a 7-inch true-color industrial embedded touch screen paired with the SH-HPSC-II modular controller, ensuring high control accuracy, stable and reliable performance.

3. Optimized freeze-drying curve control technology regulates cooling rates during pre-freezing, along with sample heating rates and stage-specific vacuum levels during sublimation and desorption drying phases.

4. The drying chamber door is constructed from transparent acrylic material, allowing full visual monitoring of the entire lyophilization process.

5. Inflation (drainage) valves use safety diaphragm valves, which can be connected to an inert gas supply to fill the chamber post-drying, extending material shelf life.

6. Patented gas diversion technology ensures uniform ice collection in the cold trap, providing exceptional ice-capturing capacity.

7. Fitted with internationally renowned brand compressors for high energy efficiency, extended service life, and low operating noise.

8. Patented separator technology and partition temperature fuzzy control ensure minimal shelf temperature variation and precise temperature regulation, resulting in uniform drying across samples.

9. Robust sensor calibration functionality maintains long-term accuracy of all measured process parameters.

10. The professionally engineered FD-EMB control system stores up to hundreds of process recipes, with each recipe featuring 50 temperature control zones to enhance process optimization efficiency.

11. Intelligent data recording system tracks and displays real-time cold trap temperature curves, sample temperature curves, and vacuum profiles. Data can be exported for computer analysis and printed, facilitating process optimization and drying effect validation.

12. Flexible manual and automatic control modes: manual mode supports process development and testing, while automatic mode is ideal for large-scale production runs.

13. Adjustable vacuum levels during operation prevent foaming and sample blowout for specialized materials, improving overall drying efficiency.

14. Customizable user access levels and password protection enable segmented operation management for enhanced security and compliance.

15. Real-time alarm display and historical alarm query functions simplify fault diagnosis and routine equipment maintenance.
