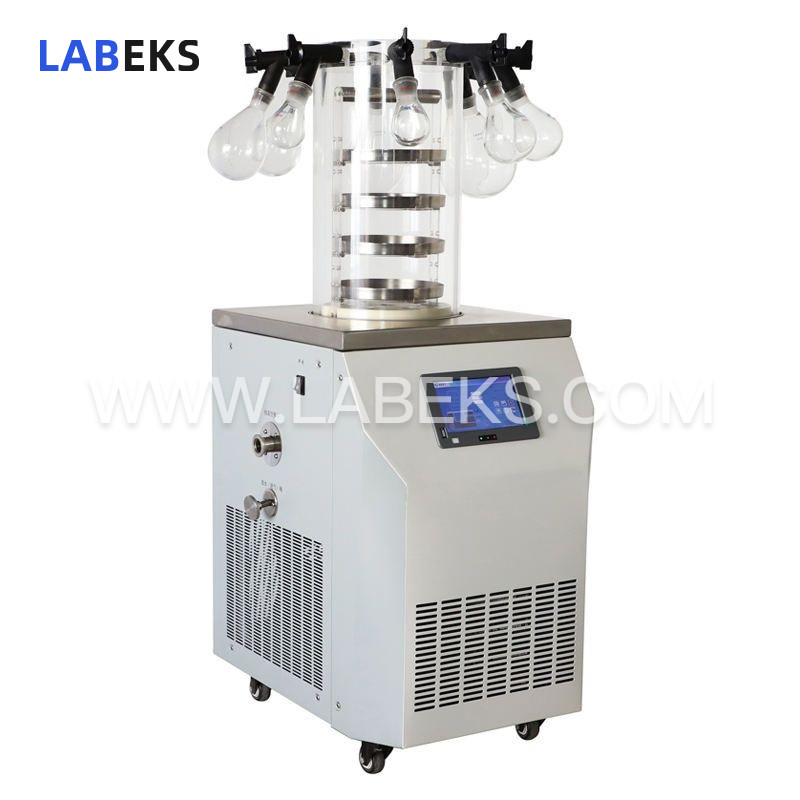

0.12㎡ Vertical Manifold Lab Freeze Dryer with CFC-Free Refrigeration for Lab R&D
Ideal for lab freeze-drying experiments in medicine, pharmacy, biology research, chemical, and food sectors, the LFD-12C manifold lab freeze dryer enables long-term product preservation with full retention of original properties upon rehydration.
- modelLFD-12C
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Widely utilized in medicine, pharmacy, biological research, chemical processing, and food manufacturing, this freeze dryer simplifies long-term product preservation following the freeze-drying process. Rehydration restores products to their original state while maintaining their chemical and biological properties. Also referred to as sublimation drying, vacuum freeze-drying is a technical method that involves pre-freezing samples and then sublimating their moisture under vacuum conditions.
features
Low-noise compressor delivers high efficiency and an extended service lifespan
CFC-free refrigeration system supports eco-friendly operation

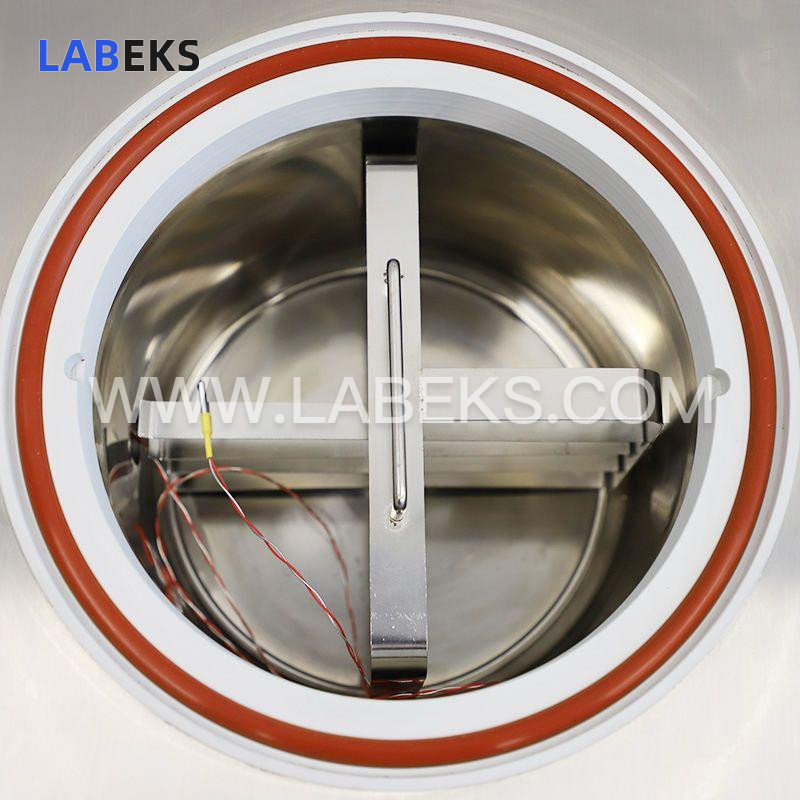

Condenser features a large opening and integrated pre-freezing capability

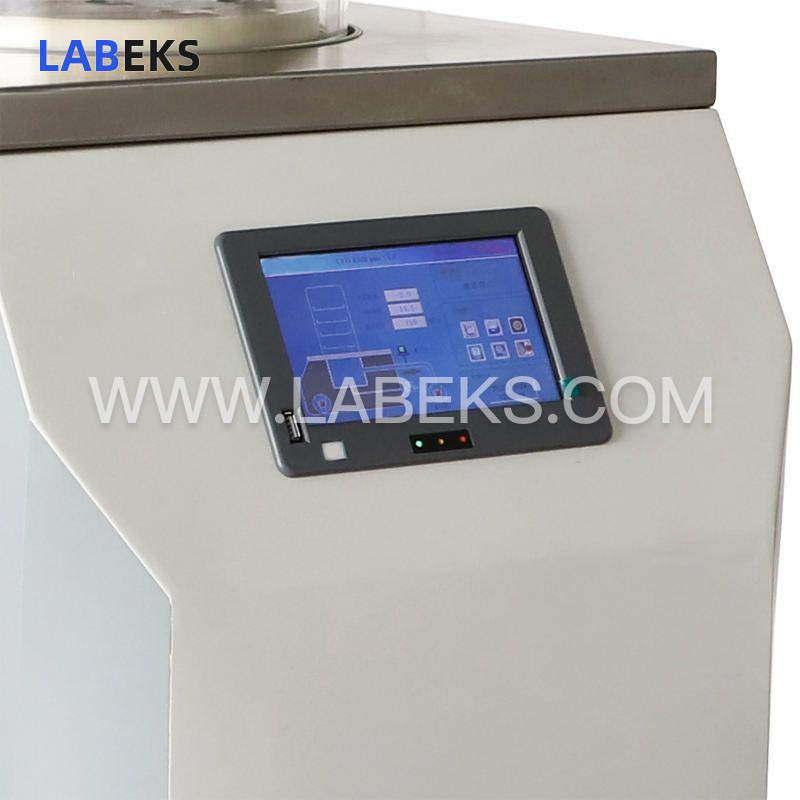

LCD screen displays drying curves with an English-language interface
Condenser and control panel are constructed entirely from stainless steel
Organic glass drying chamber ensures safe, visual process monitoring

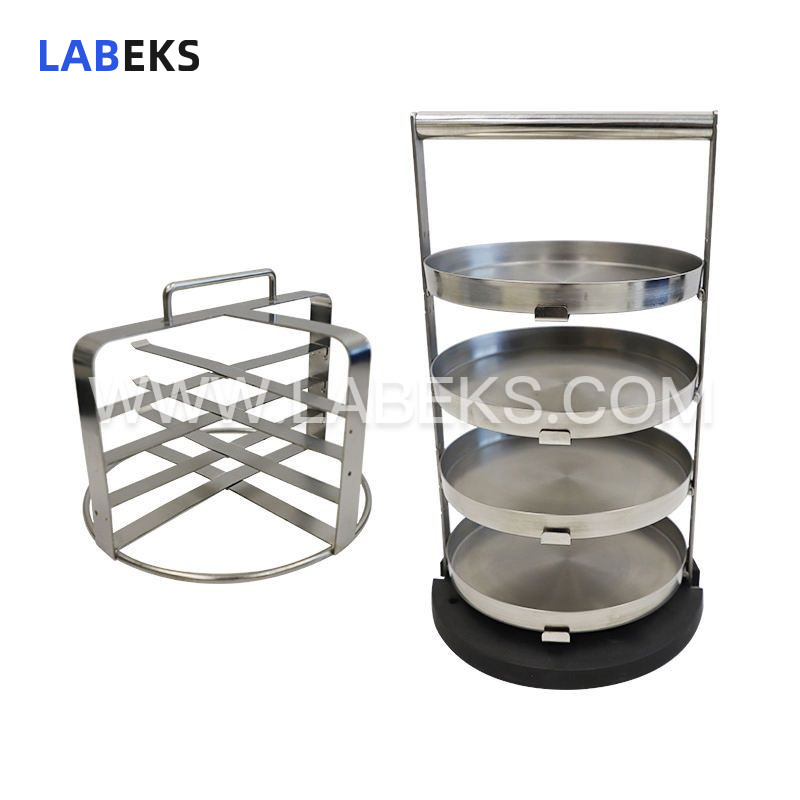

Stainless steel shelf and tray offer customizable tray spacing for diverse requirements
Compact footprint allows for easy placement and straightforward operation
Nitrogen valve is available as an optional accessory
Eutectic point testing device is offered as an optional component
Communication interface is an optional feature for enhanced connectivity
Cascade refrigeration system is optional for -80℃ device operation
specifications
Model | LFD-12C |
|---|---|
Freeze drying area | 0.12㎡ |
Condenser capacity | 3-4 L /24h |
Condenser temperature | -55℃(-80℃optional) |
Vacuum degree | <10 Pa |
Material tray | Ф200mm , 4 layers |
Bulk capacity | 1.2L, 10mm thickness |
Vial capacity Φ12mm | 920 pcs |
Vial capacity Φ16mm | 480 pcs |
Vial capacity Φ22mm | 260 pcs |

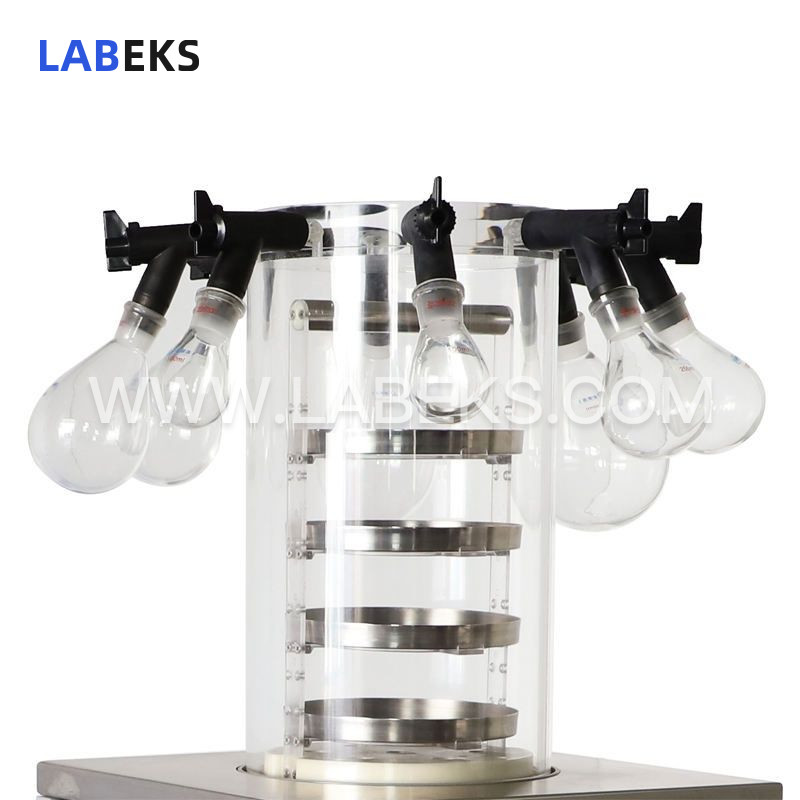

Manifold | with 8 ports |
Flask | 1000ml,500ml ,250ml ,100ml |
Cooling | Air，draughty,ambient temperature≤25℃ |
Voltage | 220V, 50Hz |
Host dimension | 556×460×(720+465) mm |
Power | 750W |
Host weight | 62 kg |
